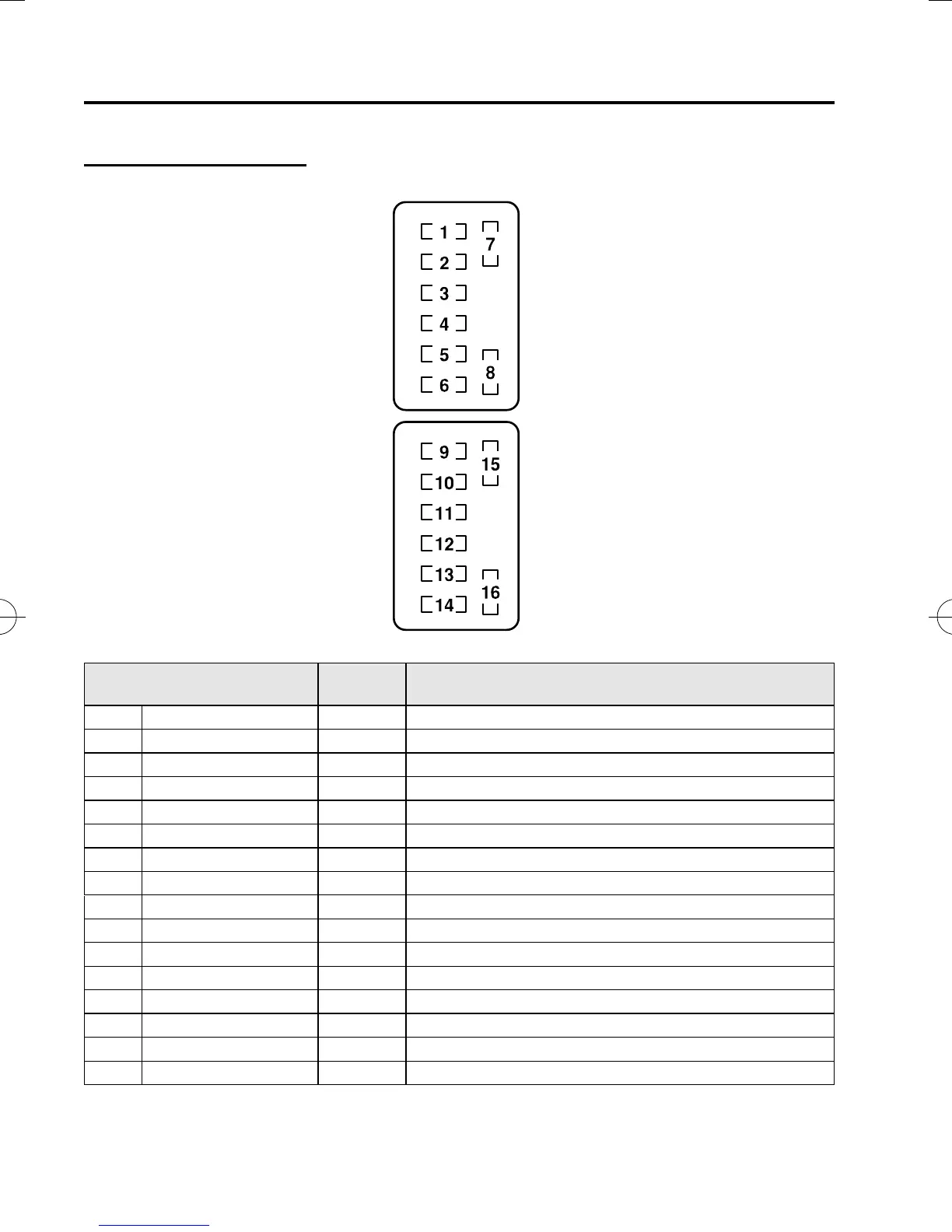

Fuse block (Driver's side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 ACC 7.5 A Audio system, Power control mirror
2 AUX PWR 15 A Accessory Socket
3 METER 15 A Instrument cluster
4 SEAT WARM 20 A Seat warmer
í
5 ILLUMI 7.5 A Illumination
6 A/C 7.5 A Air conditioner
í
7 ENGINE 7.5 A Engine control system, For protection of various circuits
8 ―― ―
9 M.DEF ――
10 AUDIO 20 A Audio system
í
11 D.LOCK 20 A Power door lock, Trunk opener
12 SILEN ――
13 ―― ―
14 ―― ―
15 ―― ―
16 ―― ―
8-50
Maintenance and Care
í
Some models.
Owner Maintenance
