2/25/2020 DOOR TRIM REMOVAL/INSTALLATION | 2016 ND Shop Manual
https://www.hexorcism.com/16ND/sm356212/ 3/4

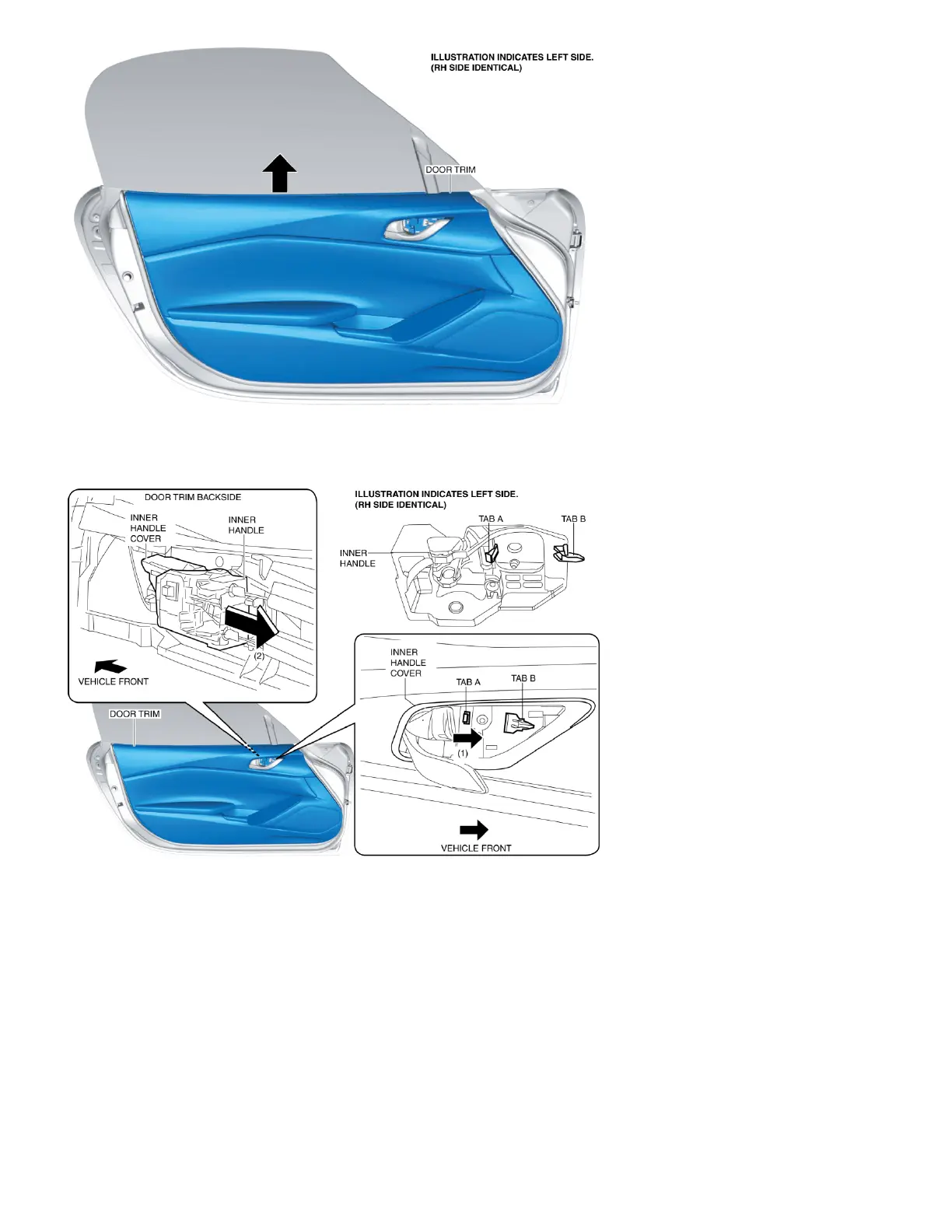

7. Remove tab A in the direction of the arrow (1) shown in the
gure.
8. Remove the inner handle in the direction of the arrow (2)
shown in the gure while detaching tab B.
9. Disconnect the connector.
10. Install in the reverse order of removal.
