Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
▼
Fuse Panel Description

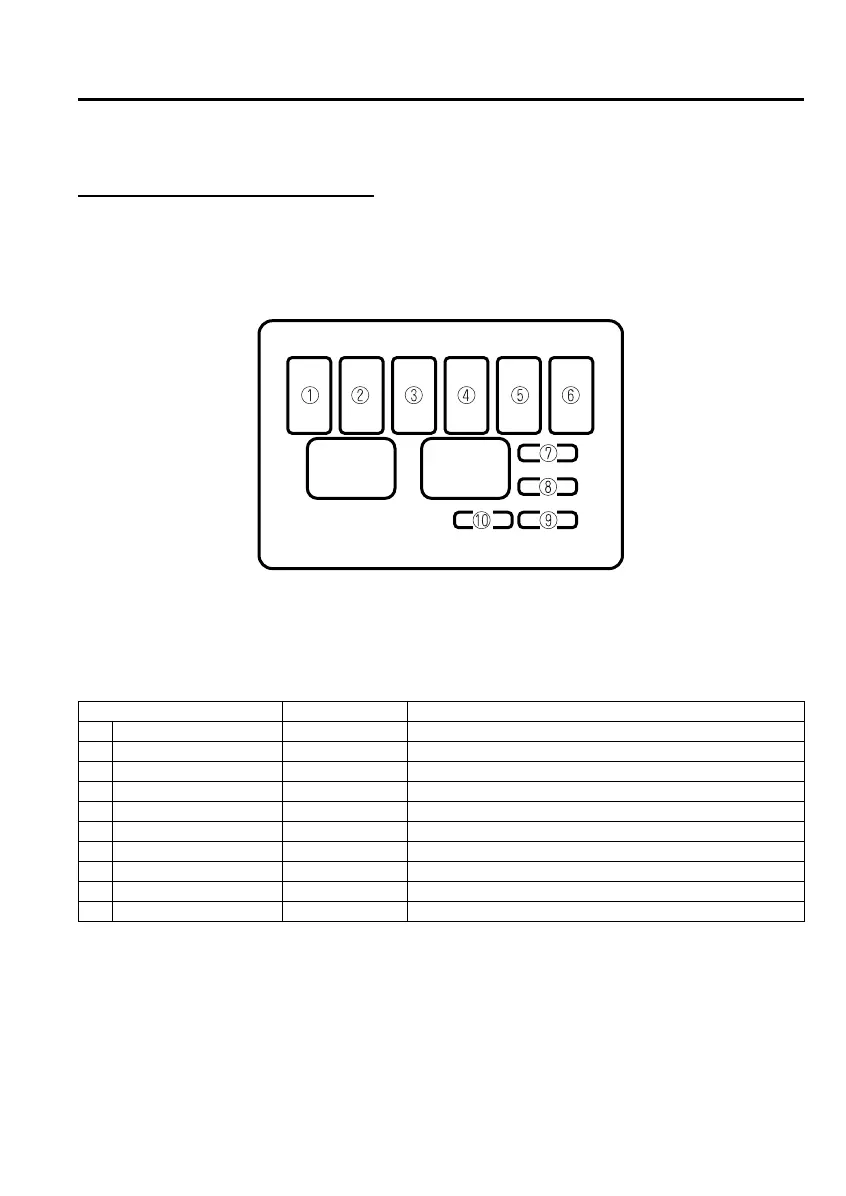

Fuse block (Engine compartment)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 HEAD 40A Headlights, Rear defroster, Auto antenna
2 FUEL INJ 30A Fuel injection
3 MAIN 100A For protection of all circuits
4 IG KEY 60A All ignition related circuits
5 BLOWER 30A Blower motor
6 FAN 30A Cooling fan, Additional fan (air conditioner)
7 BTN 1 30A Taillights, Dashboard illumination
8 BTN 2 20A Audio amp, Turn signal lights
9 ABS 20A Antilock brake system
10 STOP 15A Brake lights, Horn, Shift lock
