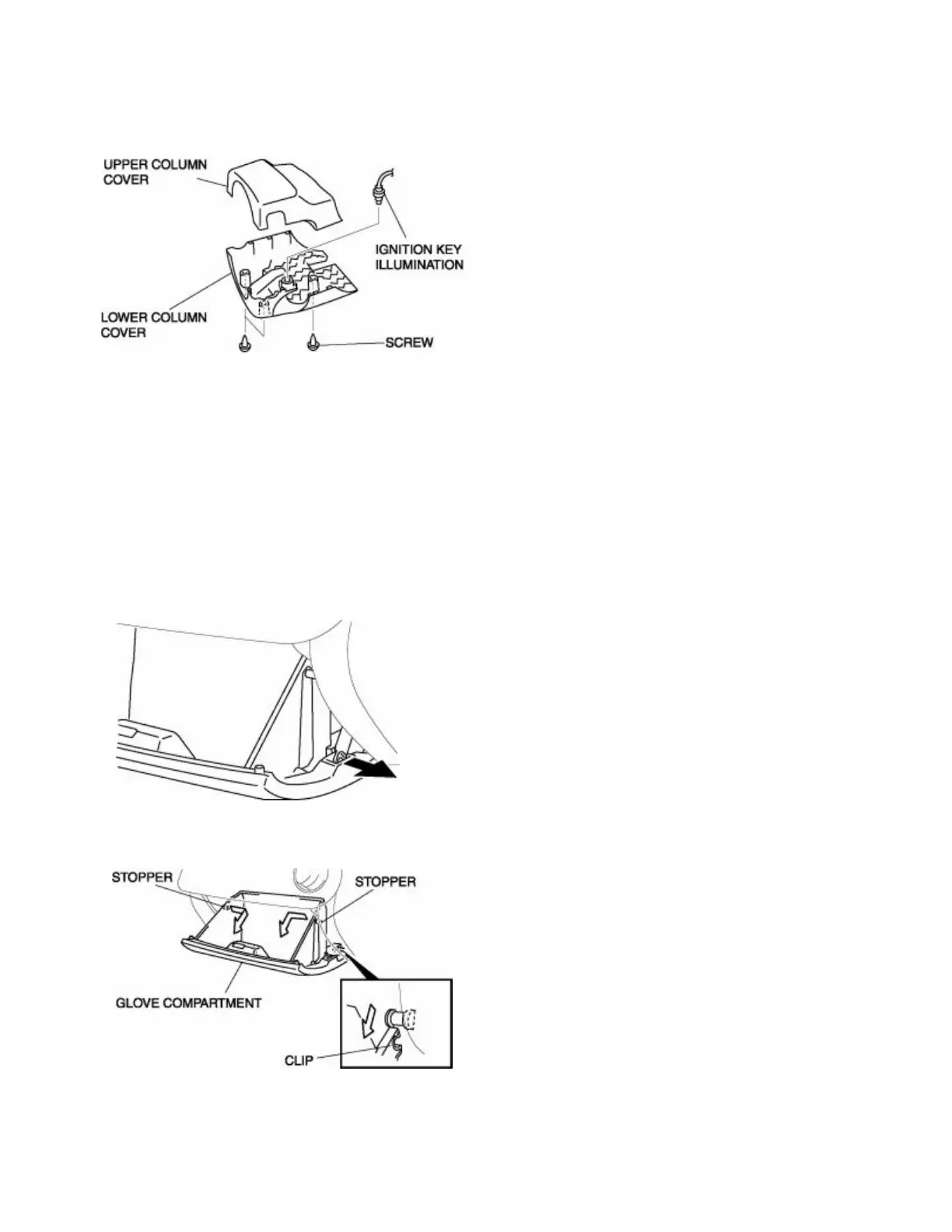

COLUMN COVER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the upper column cover.
3. Remove the ignition key illumination.(See IGNITION KEY ILLUMINATION BULB
REMOVAL/INSTALLATION .)
4. Remove the screws.
5. Remove the lower column cover.
6. Install in the reverse order of removal.
GLOVE COMPARTMENT REMOVAL/INSTALLATION
1. Pull the stay damper in the direction shown in the figure, and detach the connecting part between the
glove compartment and the stay damper.
2. Press the stopper in and remove it.
3. Lower the glove compartment.
4. Detach the clips from the dashboard and remove the glove compartment.
5. Install in the reverse order of removal.
