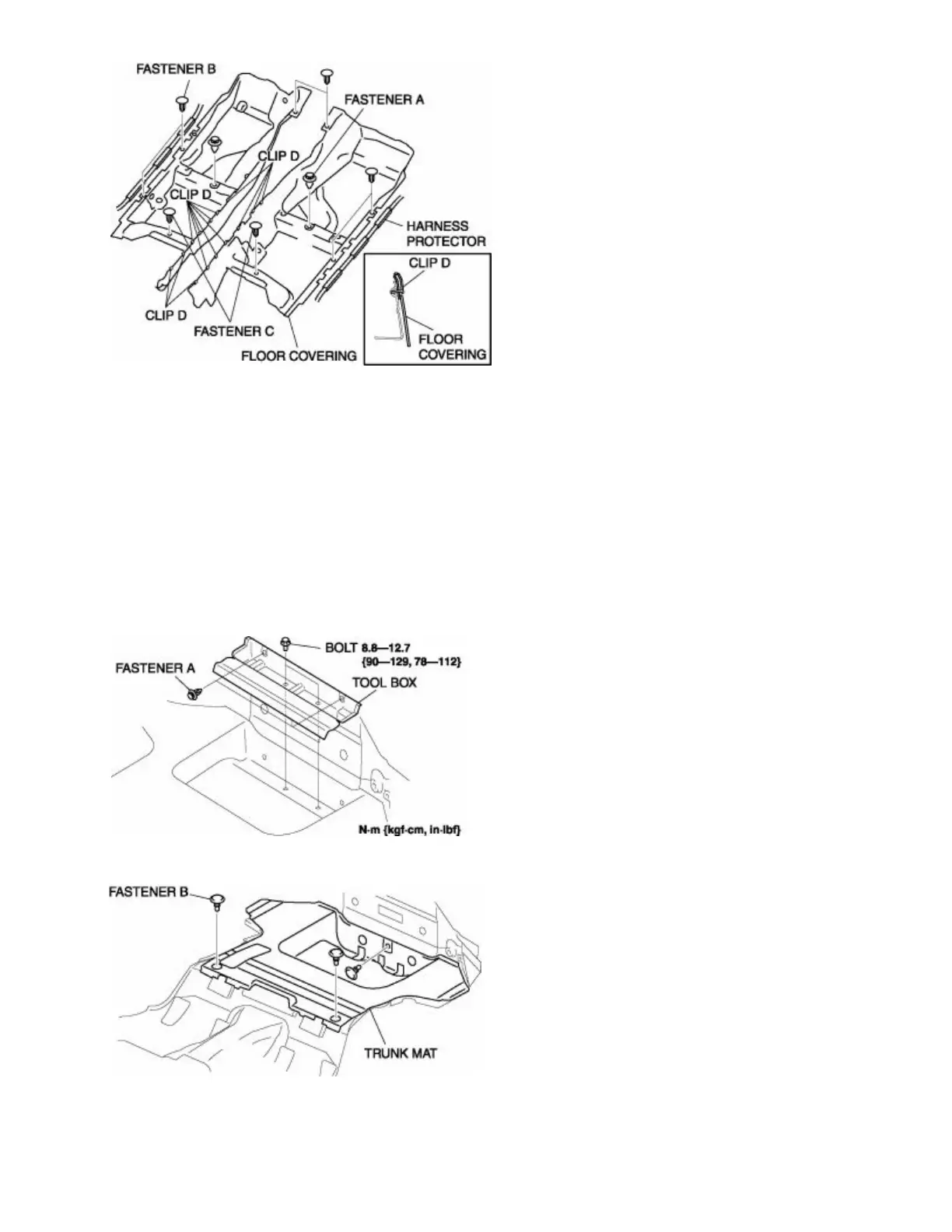

5. Take the floor covering out from the opened door.
6. Install in the reverse order of removal.
TRUNK TRIM
TRUNK MAT REMOVAL/INSTALLATION
1. Remove the trunk end trim.(See TRUNK END TRIM REMOVAL/INSTALLATION .)
2. Remove the trunk side trim.(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
3. Remove the fasteners A and bolts, then remove the tool box.
4. Remove the fasteners B, then remove the trunk mat.
5. Install in the reverse order of removal.
