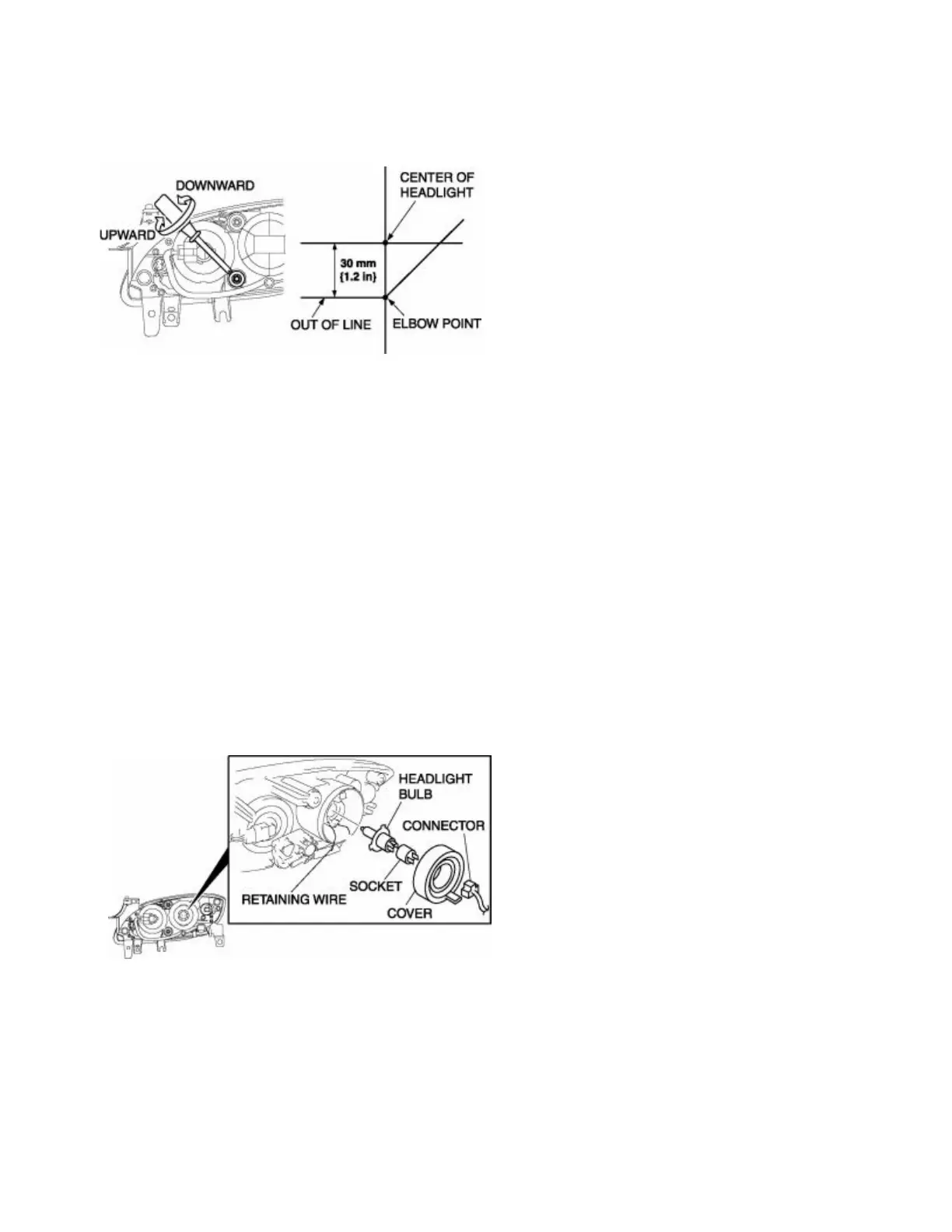

11. Turn the adjusting screws to adjust the headlight so that the elbow point is in the shaded area shown in
the figure.
HEADLIGHT BULB REMOVAL/INSTALLATION
Low-beam
Halogen type
1. Disconnect the negative battery cable.
2. Remove the fasteners, then slightly bend back the mudguard.
3. Disconnect the connector.
CAUTION:
• A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is
soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the
bulb, hold the metal flange, not the glass.
