5. Install in the reverse order of removal.
High-beam
1. Disconnect the negative battery cable.
2. Remove the fasteners, then slightly bend back the mudguard.
3. Disconnect the connector.
CAUTION:
• A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is
soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the
bulb, hold the metal flange, not the glass.

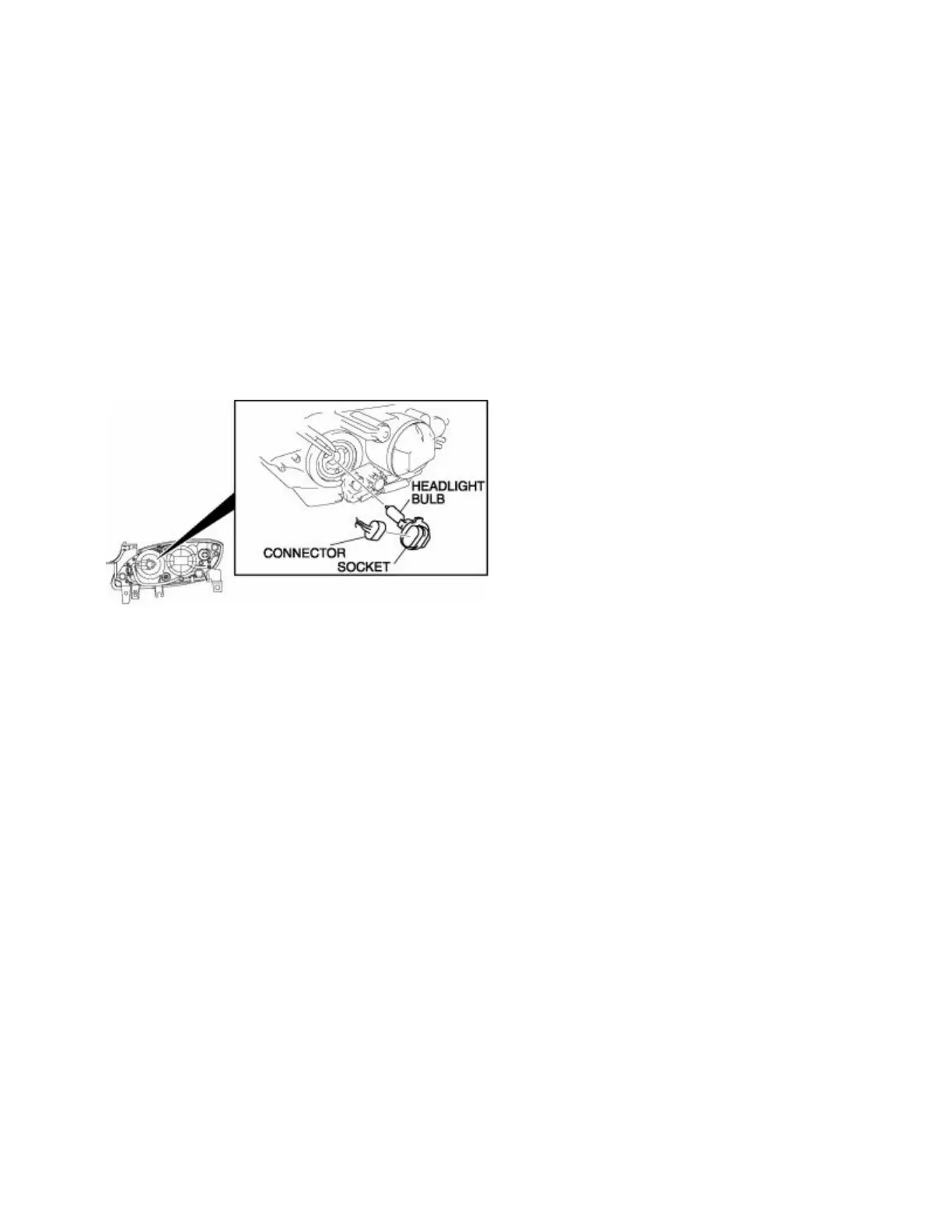

4. Remove the socket, then remove the headlight bulb.
5. Install in the reverse order of removal.
