KEYLESS CONTROL MODULE REMOVAL/INSTALLATION
1. When replacing the keyless control module, perform the following procedure:
• KEYLESS CONTROL MODULE CONFIGURATION (See KEYLESS CONTROL MODULE
CONFIGURATION .)
2. Disconnect the negative battery cable.
3. Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

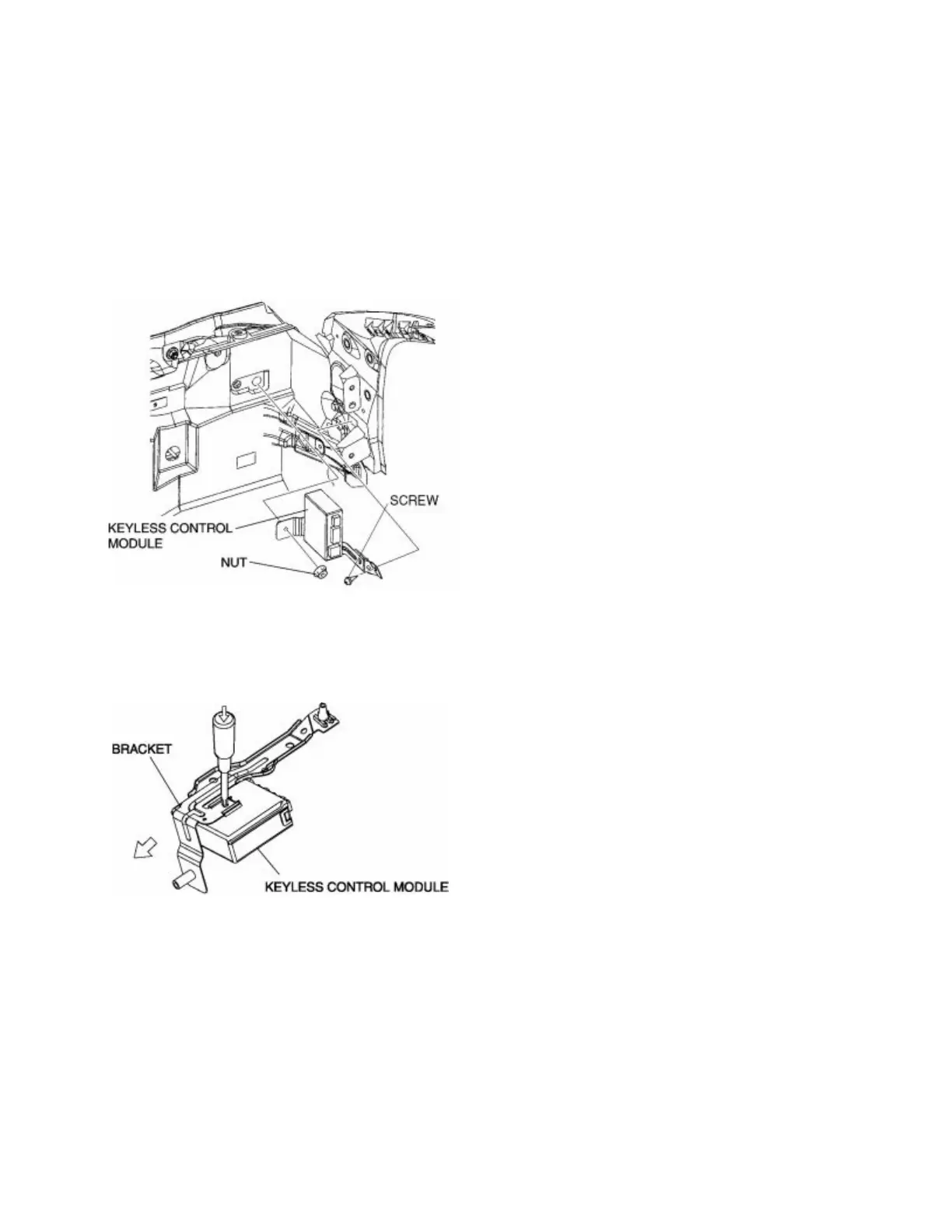

4. Remove the nut and screw.
5. Remove the connector clip installed to the bracket by shifting the keyless control module downward.
6. Disconnect the keyless control module connector.
7. Push the stopper with a small screwdriver and remove the bracket in the direction shown by the arrow.
8. Install in the reverse order of removal.
9. When replacing the keyless control module of vehicles with the immobilizer system, perform the
following procedure:
• IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND
CLEARING .
• Transmitter ID code change (See TRANSMITTER ID CODE CHANGE .)
KEYLESS CONTROL MODULE INSPECTION
1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
