TRANSMITTER BATTERY INSPECTION
CAUTION:
• Since the battery voltage does not drop fully if the button is pushed for only 4 seconds or less, it can not
be properly examined to see whether it is good or bad. Always push the button for 5 seconds.
NOTE:
• A correct measurement cannot be obtained if the battery temperature is low. Make sure the battery is at
18 °
°°
°C {64 °
°°
°F} or more for at least 30 minutes before reinspecting if a measurement value is under the
standard voltage.
1. Remove the transmitter cover.

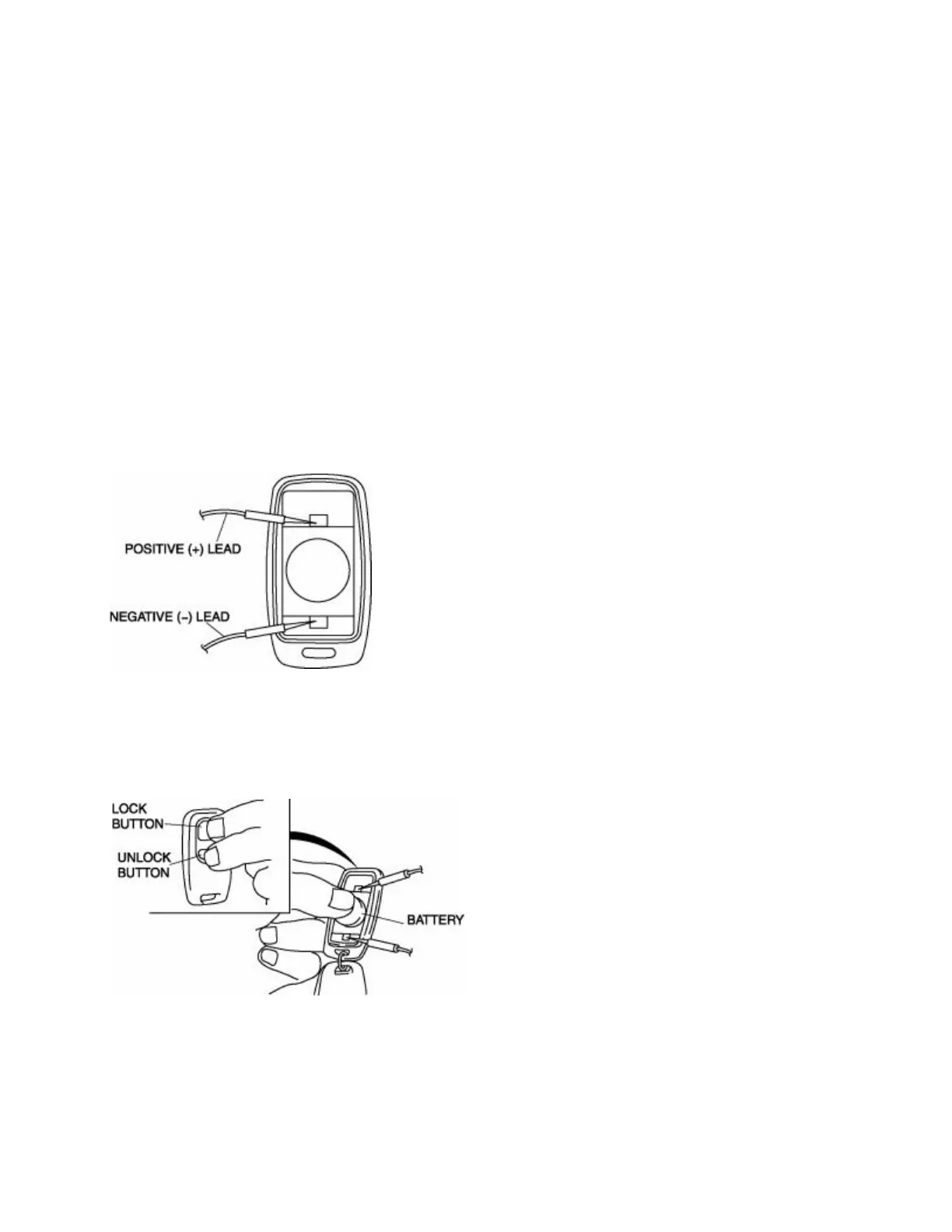

2. Apply the ohmmeter leads to the positions as indicated in the figure.
3. While pressing the battery as shown in the figure, press the LOCK and UNLOCK buttons on the
transmitter at the same time to start measurement of the voltage.
4. Release the buttons after 5 seconds .
To Next Page
