REAR DOOR LOWER LATCH REMOVAL/INSTALLATION
1. Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
2. Remove the rear door upper trim. (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION .)
3. Remove the front seat belt retractor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
4. Remove the rear door release handle. (See REAR DOOR RELEASE HANDLE
REMOVAL/INSTALLATION .)

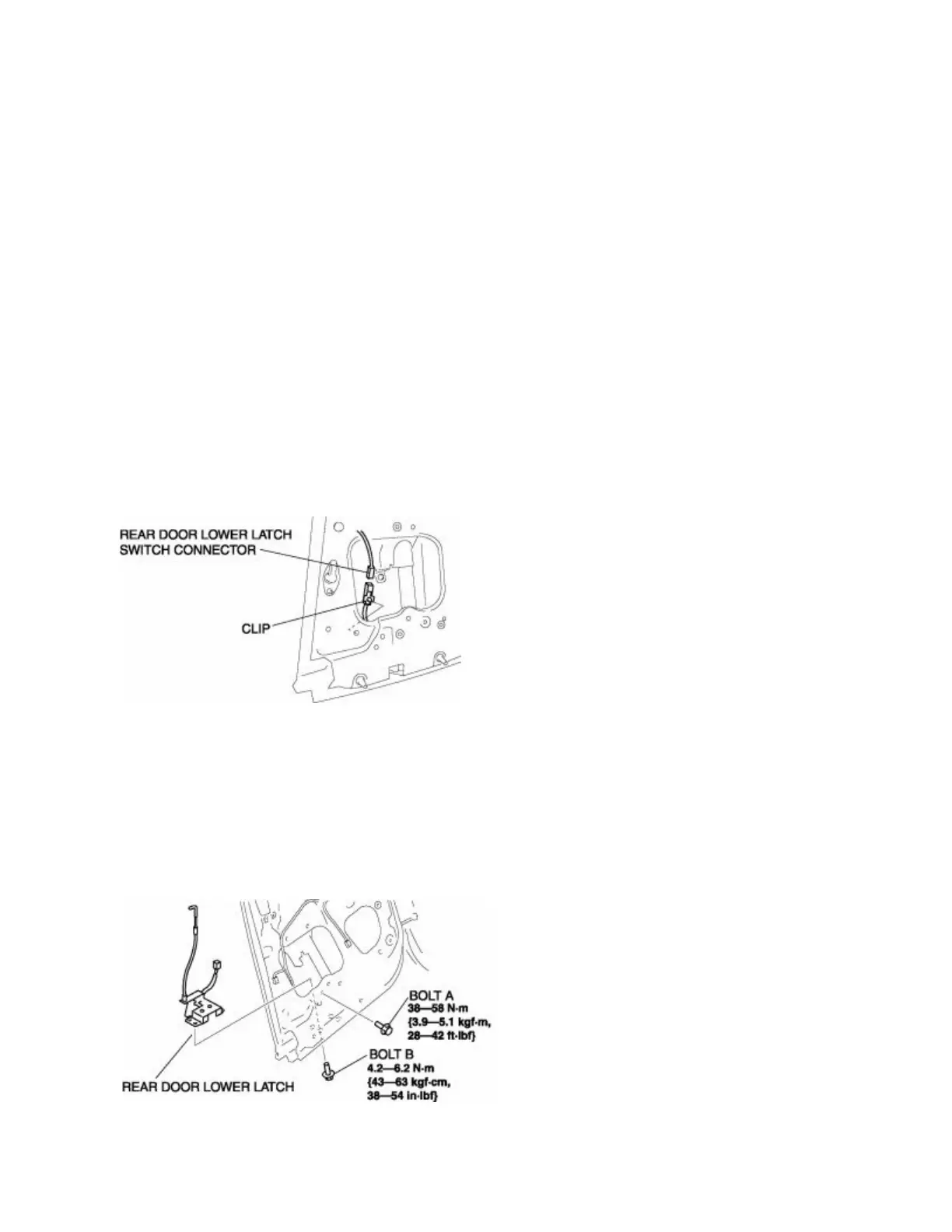

5. Detach the clip and disconnect the rear door lower latch switch connector.
6. Remove bolt A.
7. Remove bolts B, then remove the rear door lower latch.
