7. After Step 6, wait 10 s or more and then turn the ignition switch to the LOCK position.
No.5 Resetting Procedure for the Immobilizer System when Replacing the PCM or Keyless Control
Module
Conditions
• When only replacing the PCM: No conditions.
• When only replacing the keyless control module: Customer has two or more keys for registration after
replacement.
• PCM and keyless control module replaced at the same time: Customer has two or more keys for
registration after replacement.
CAUTION:
• When replacing the PCM and the keyless control module at the same time, follow the same instructions
described in the procedure for "when replacing the keyless control module".
• When replacing only the PCM, start from Step 2.Also, when key 1 is indicated within the procedure, any
valid key can be used.
• Before starting Step 1, complete the procedure for PCM and keyless control module replacement.
Procedure

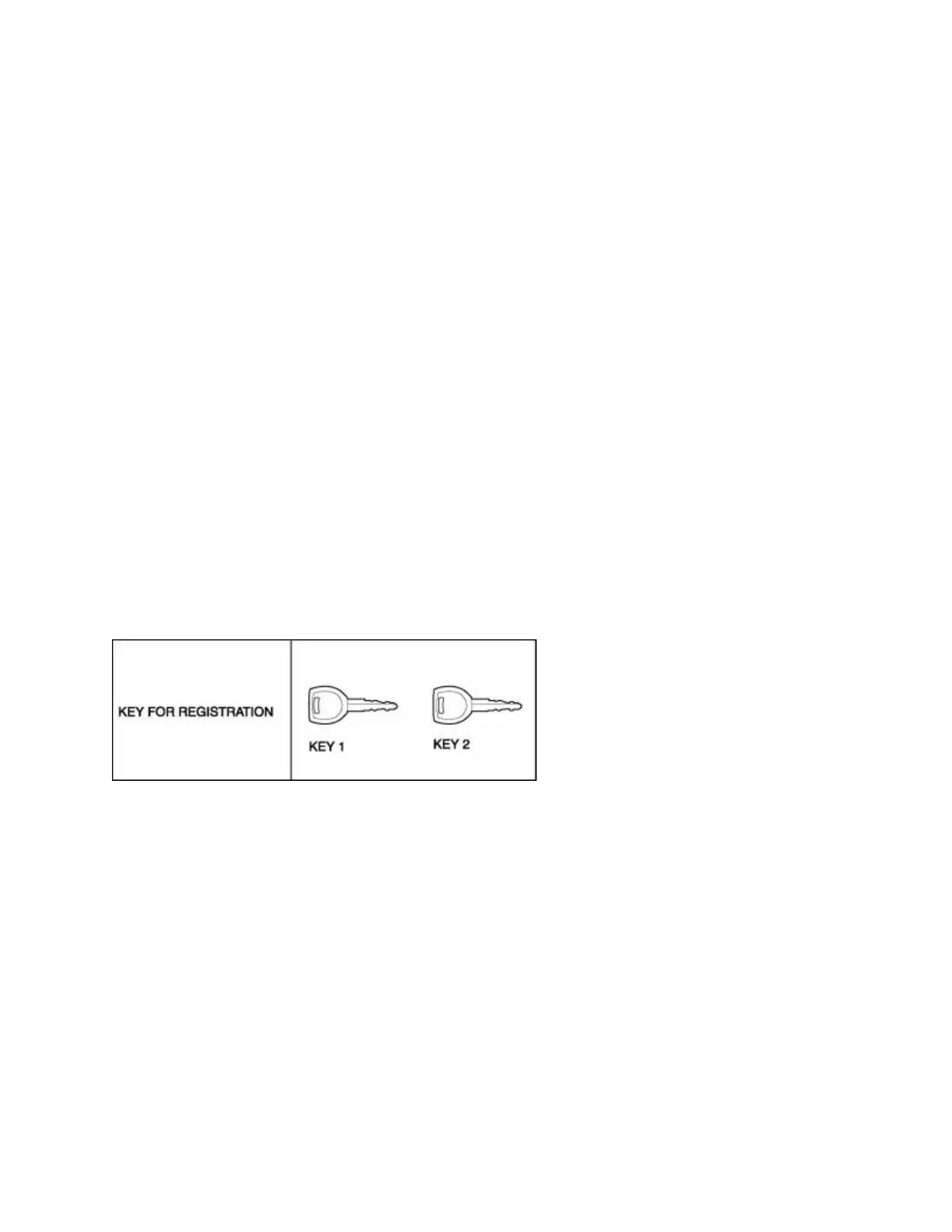

1. Have two or more keys (key 1, key 2) ready for registration.
2. Using key 1, turn the ignition switch to the ON position.
NOTE:
• When replacing only the PCM: The security light illuminates for 3 s and then goes out.
• When replacing only the keyless control module: Although the security light flashes and DTC 15
is displayed, this does not indicate an improper procedure. Continue to perform the procedure as
indicated.
3. Connect the WDS or equivalent to the DLC-2.
