19 Blower relay
20 Fuel pump speed control relay

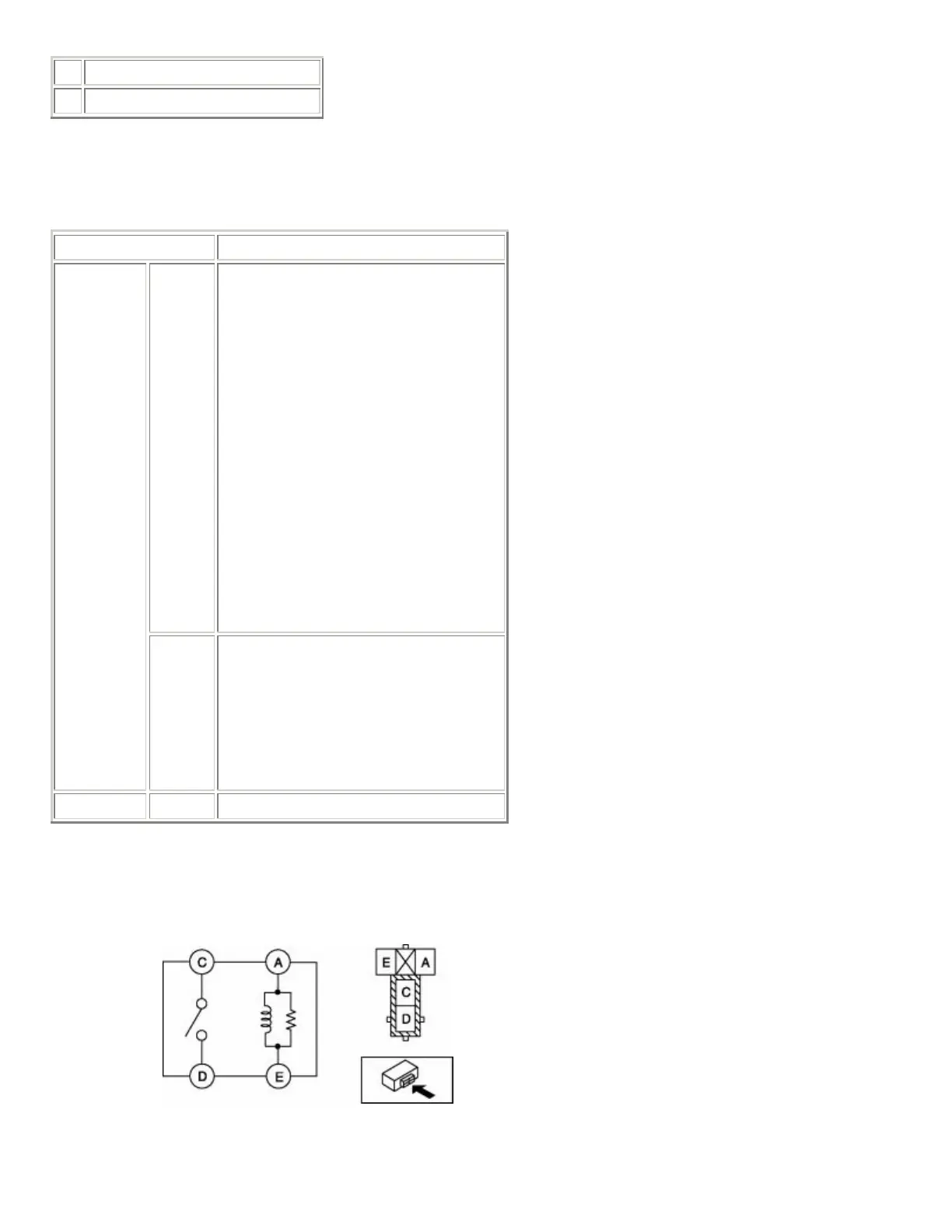

RELAY INSPECTION
Relay type
Terminal type Part name
Type A
Main relay
TNS relay
ACC relay
Front fog light relay
Drive-by-wire relay
Cooling fan relay No.1
Cooling fan relay No.2
A/C relay
Blower relay
Rear window defroster relay
Fuel pump speed control relay
Fuel pump relay
Horn relay
Trunk lid opener relay
4 terminals
Type B
Ignition relay
Starter relay
Headlight relay
AIR pump relay
5 terminals Type C Cooling fan relay No.3
Type A
1. Verify the continuity between the relay terminals.
If not as indicated in the table, replace the relay.
(w) RX-8 Body
Page 388
