WINDOW SWITCH
POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.

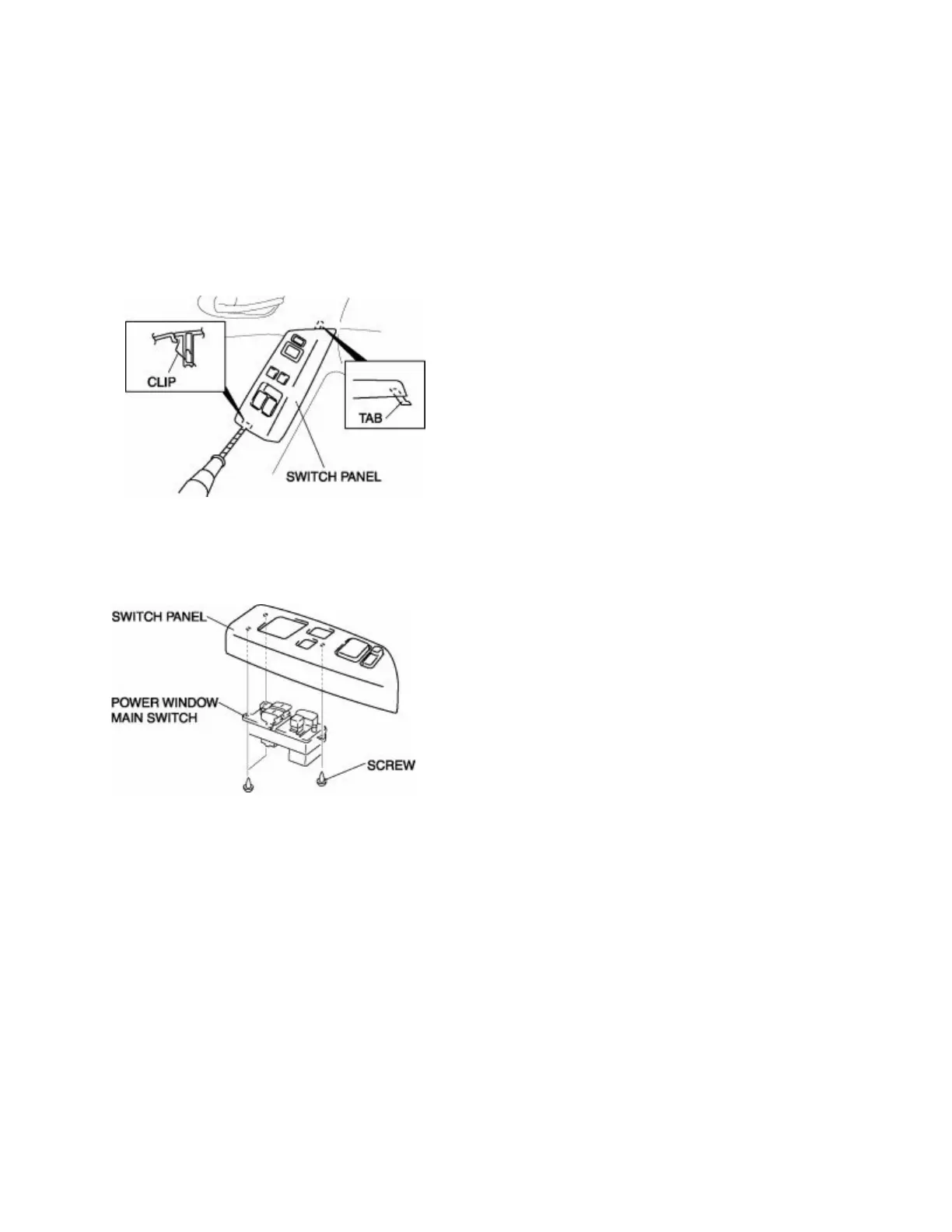

2. Using a flathead screwdriver wrapped with protective tape, pry up the rear of the switch panel and
detach the clip .
3. Remove the switch panel from the front door trim keeping the tab from catching.
4. Disconnect the power window main switch connector and the power mirror switch connector.
5. Remove the screws, then remove the power window main switch.
6. Install in the reverse order of removal.
POWER WINDOW MAIN SWITCH INSPECTION
1. When inspecting the passenger's side and the rear, turn the power-cut switch to UNLOCK.
2. Inspect for continuity between the power window main switch terminals.
• If not as specified, replace the power window main switch.
3. Connect battery positive voltage to terminal N and ground to the terminal K. Verify that continuity
exists.
• If not as specified, replace the power window main switch.
