Assembly instructions
Pergola Drop Screen
mm
mm
mm
mm

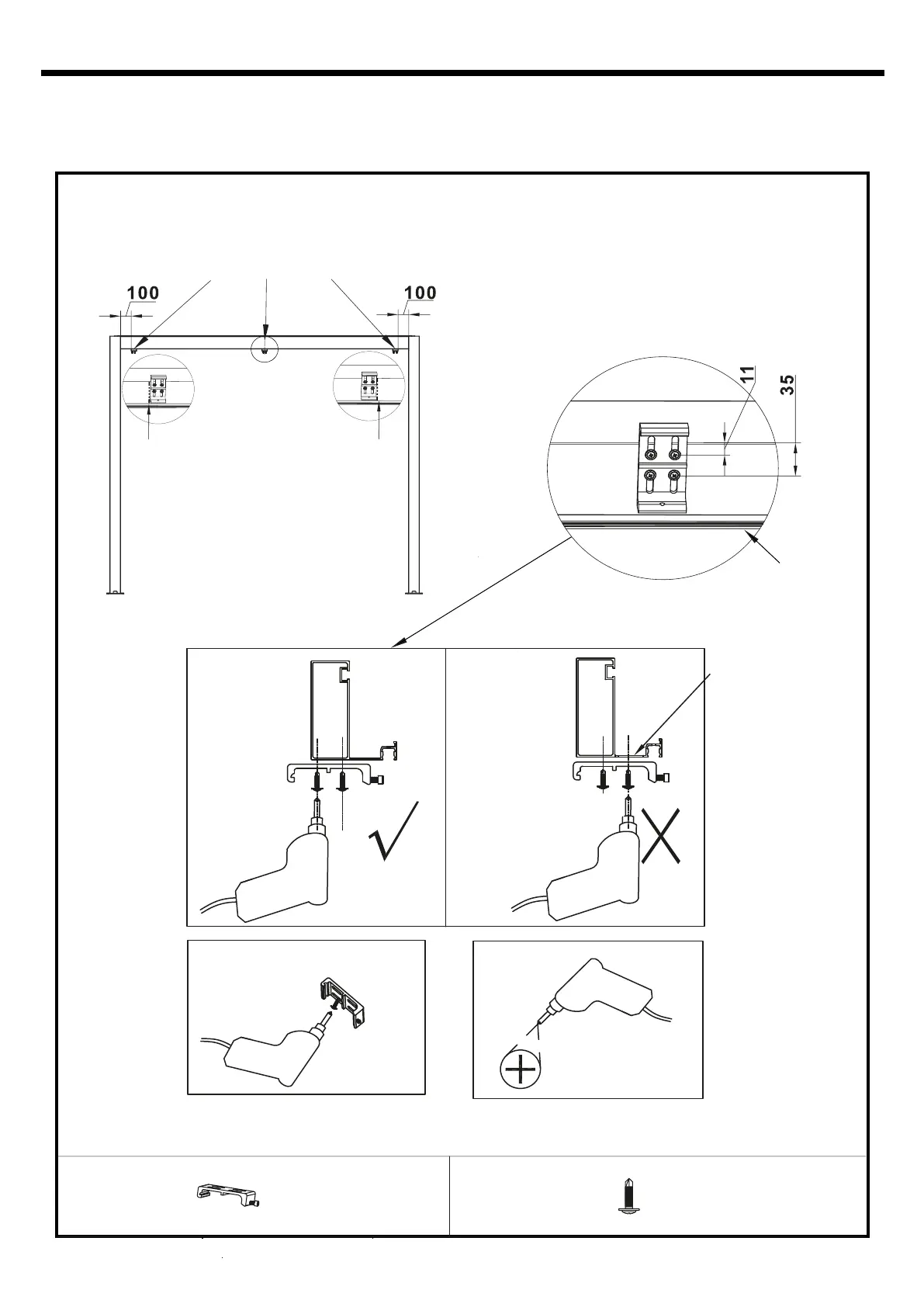

1. Measure 100mm from each inside leg
and make a pencil mark. Measure central
point of beam and make a pencil mark.
2. Drill 4x K3 screws, according to the size
shown in the figure below, fixing bracket M
to the centre of the beam. Drill screws near
the outside of the beam to avoid drilling
through the gutter. Repeat for additional 2
brackets on the same beam (left and right).
LED light slot
Gutter
3. Repeat above steps for all drop sides.
Pencil mark Pencil mark
M
QTY: 3PCS
K
QTY: 12PCS
To Next Page
