mbl 101 E MKII
3.3 Mono amplifier (2 power amplifiers)

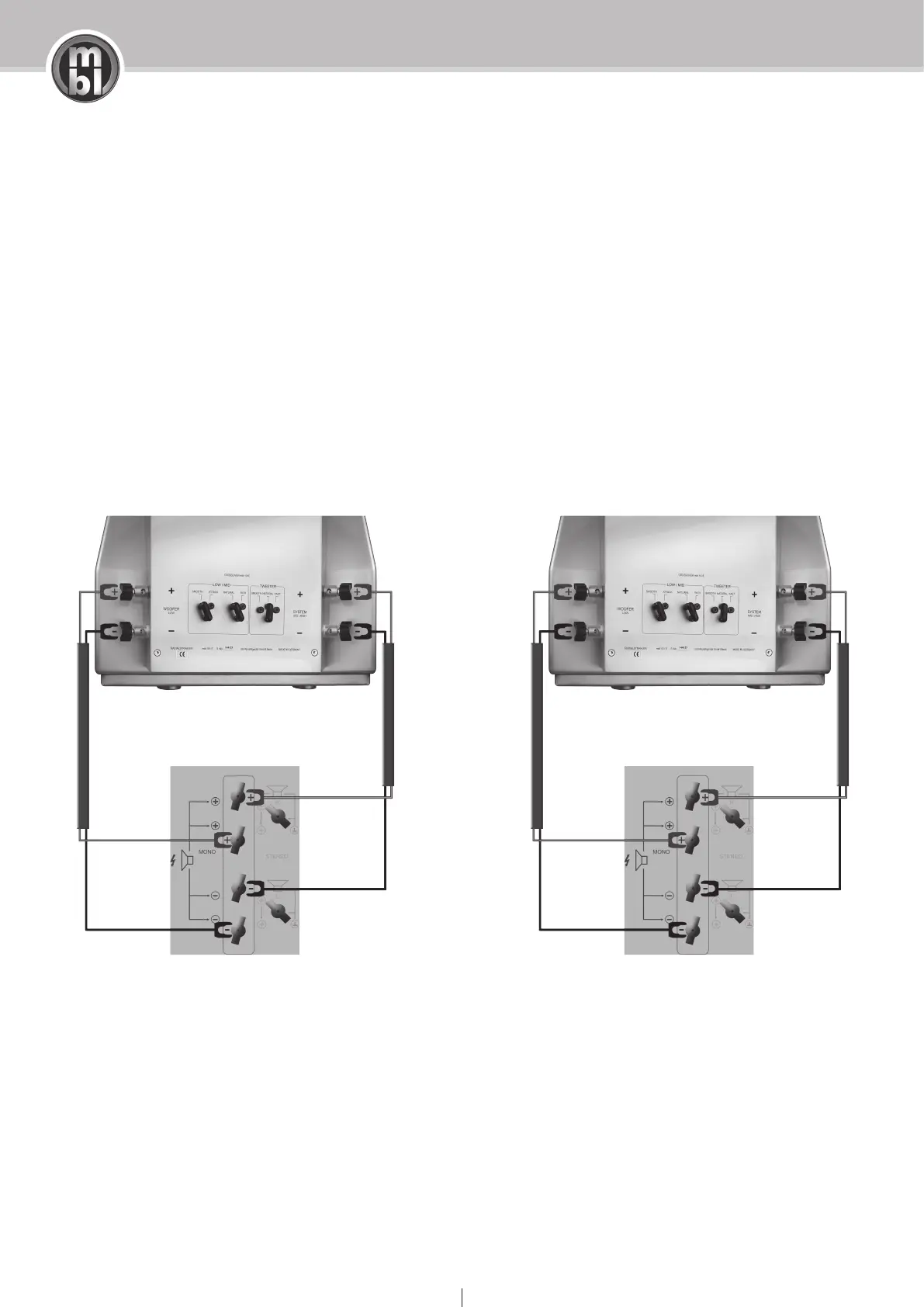

If you want to connect your mbl 101 E MKII Radialstrahler to 2 power amplifiers in mono mode, use the
MONO connectors of the power amplifiers. Connect the plus terminals (WOOFER and SYSTEM) to the
respective plus connectors and the minus terminals to the minus connectors.
Attention: bi-wiring is recommended.
left speaker right speaker
mono power amplifier
left
mono power amplifier
right
WOOFER
terminals
SYSTEM
terminals
WOOFER
terminals
SYSTEM
terminals
