24
Trimmer
L10 L20 L19 L18 L17 L16 L15 L14 L13 L9 L8 L7 L6 L5 L4 L3 L2 L1

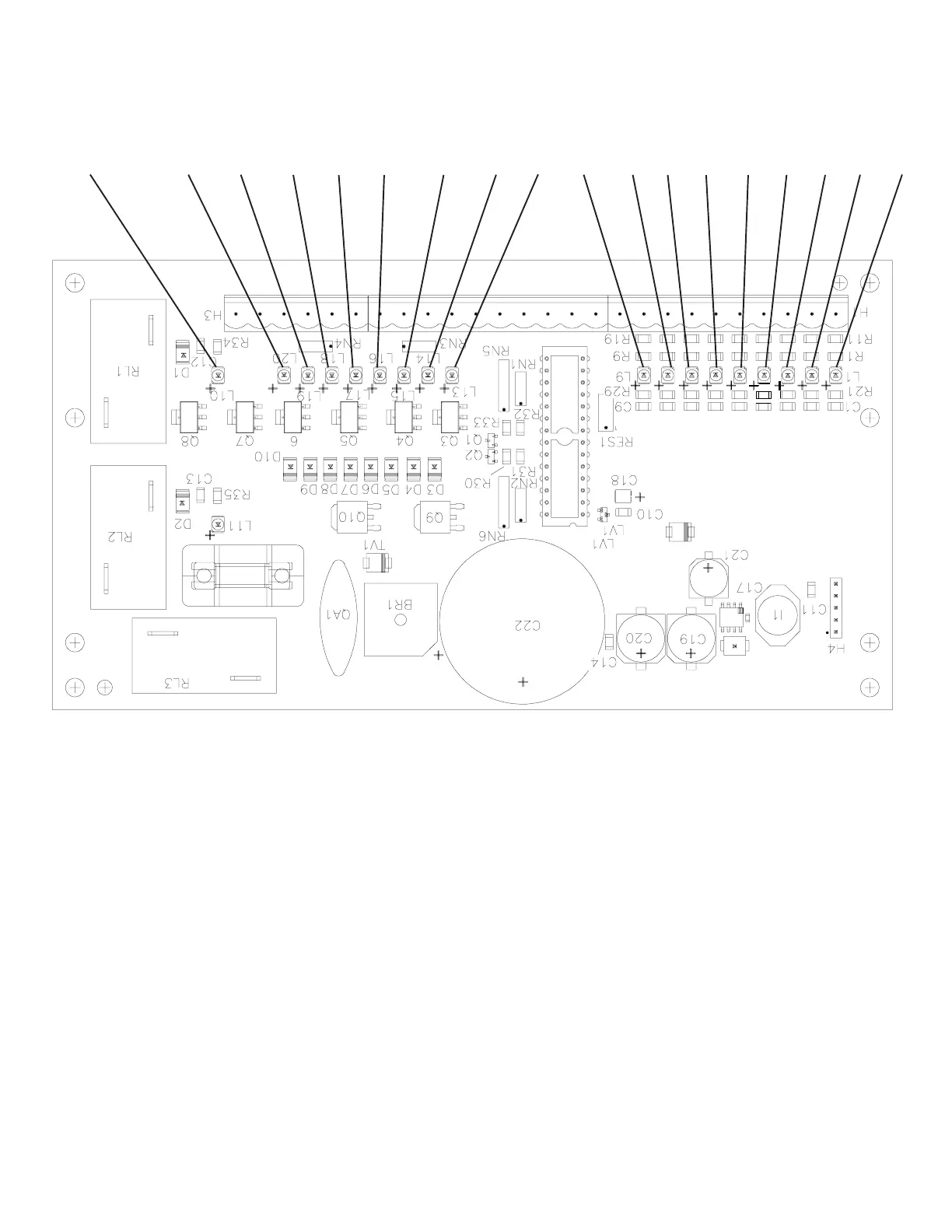

Circuit Board: Light Layout
INPUTS L1-L9 (Yellow)
LIGHT APPLICATION
L1 Trim/No Trim Switch
L2 Knife Change Switch
L3 Knife Proximity Sensor
L4 Belt Drive Selector Switch
L5 Belt Drive Selector Switch
L6 Infeed Photosensor
L7 Gate Photosensor
L8 Start/Reset Switch
L9 Belt Drive Selector Switch
OUTPUTS L10-L20 (Red)
LIGHT APPLICATION
L10 Motor Power Relay
L13 Jam Light
L14 N/A
L15 N/A
L16 Discharge Clutch
L17 Conveyor Clutch
L18 Jam Detector Relay
L19 Gate Solenoid
L20 Cut Clutch
(RTM1172A-Layout1)
