ASSEMBLING THE FABRIC STEAMER
ASSEMBLING THE TELESCOPIC POLE
1. Screw Pole Extension (FIGURE 1-A) onto top section of Telescopic Pole
(FIGURE 1-B). Rotate in a clockwise direction until tight and secure.
2. Place Pole Top onto top of Pole Extension as shown (FIGURE 2) and rotate in a
clockwise direction until tight and secure.
3. Loosen top ridged knob (FIGURE 3-C) by turning it in a counter-clockwise
direction. Pull top section of Telescopic Pole (FIGURE 3-E) upwards to extend it
to full height. Re-tighten top ridged knob.
4. Loosen bottom ridged knob (FIGURE 3-D) by turning it in a counter-clockwise
direction. Pull middle section of Telescopic Pole (FIGURE 3-F) upwards to
extend it to full height. Re-tighten bottom ridged knob.
5. Telescopic Pole is now fully assembled and extended. To reduce Pole back to
compact height, reverse steps 3 and 4.
NOTE: The Telescopic Pole must be fully extended during steamer operation
in order to insure a free flow of steam through the Steam Hose.

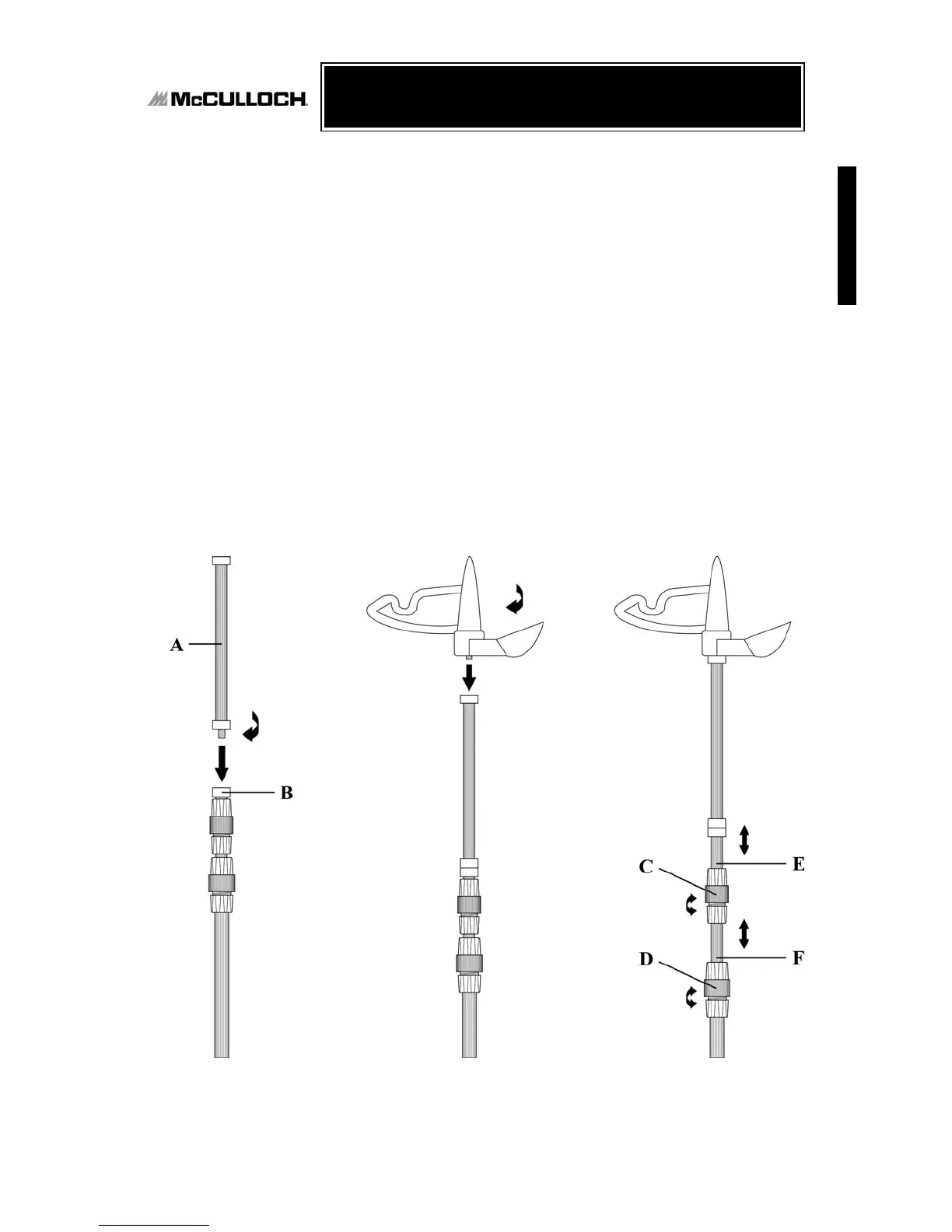

FIGURE 2
FIGURE 1 FIGURE 3
