OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.
Save this manual for future reference.
Our tractors conform to the safety standards of the American National Standards Institute.
ATTACHMENT
CLUTCH LEVER
ATTACHMENT CLUTCH LEVER - Used to engage the
mower blades, or other attachments mounted to your
tractor.
ATTACHMENT LIFT LEVER - Used to raise, lower, and
adjust the mower deck or other attachments mounted to
your tractor.
CLUTCH/BRAKE PEDAL - Used for declutching and brak-
ing the tractor and starting the engine.
GEARSHIFT LEVER - Selects the speed and direction
of tractor.

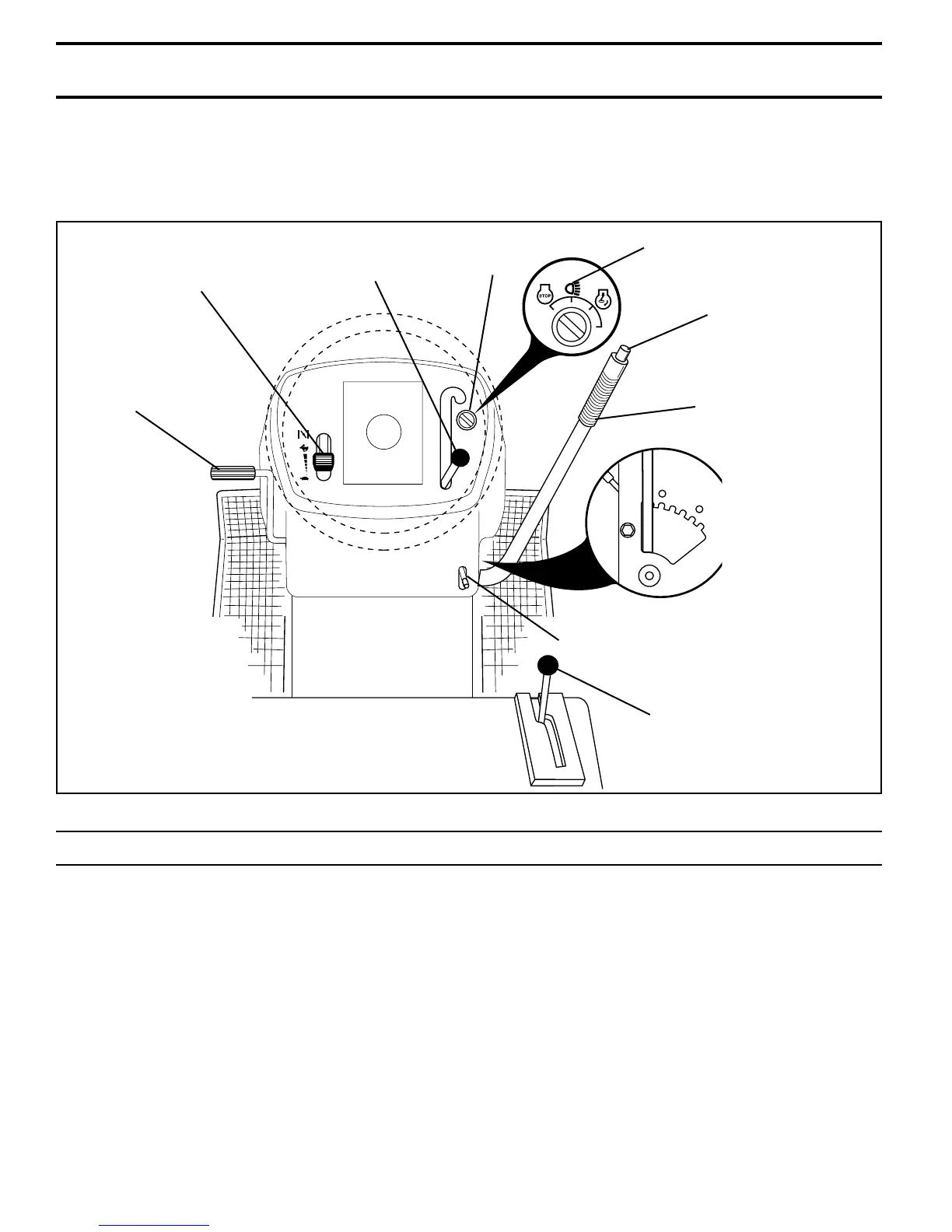

FIG. 5
IGNITION
SWITCH
LIFT LEVER PLUNGER
ATTACHMENT
LIFT LEVER
MOWER DECK
HEIGHT ADJUSTMENT
INDICATOR
GEARSHIFT
LEVER
CLUTCH/BRAKE PEDAL
THROTTLE/CHOKE CONTROL
PARKING BRAKE
IGNITION SWITCH - Used for starting and stop ping the
engine.
LIFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
LIGHT SWITCH POSITION - Turns headlights on and
off.
PARKING BRAKE - Locks clutch/brake pedal into the
brake position.
THROTTLE/CHOKE CONTROL - Used for starting and
controlling engine speed.
LIGHT SWITCH
POSITION
