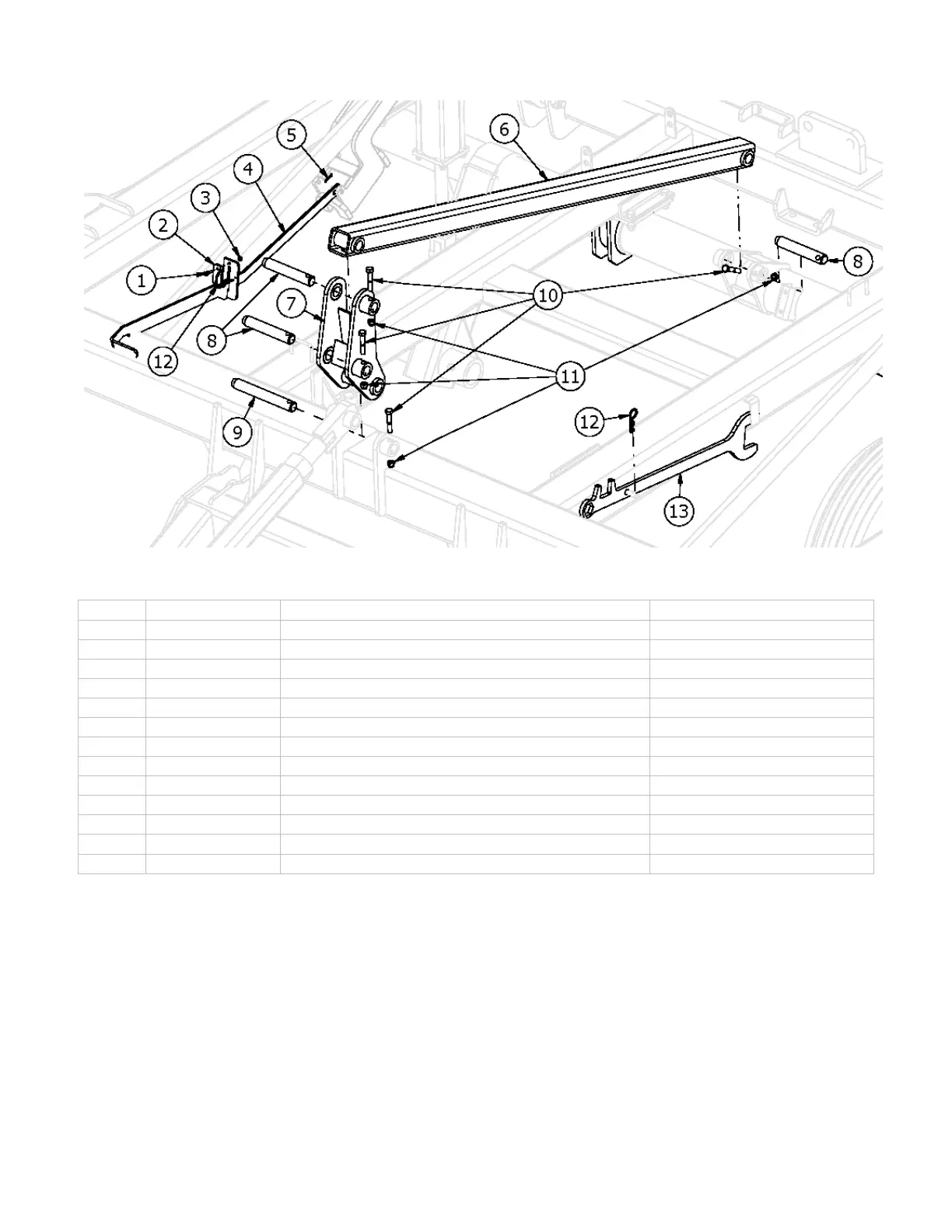

LEVEL LI FT and CYLI NDER LOCK
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 BH-2510 1/ 4 – 20 X 1 GRADE 5 HEX BOLT
2 HYS-1104 CYLINDER LOCK HANDLE LOCK
3 NLT-2520 1/ 4 - 20 TOP LOCK NUT
4 HYS-1103 CYLINDER LOCK HANDLE
5 CP-1810 COTTER PI N, 1/ 8 X 1
6 RT-3109 LEVEL LIFT REAR TUBE
7 RT-3108 LEVEL LIFT PI VOT PLATE
8 RT-2124 LEVEL LIFT TUBE PIN, 1 1/ 4 X 7 1/ 2
9 RT-3107 PI VOT PLATE PI N, 1 1/ 4 X 9 1/ 2
10 BH-5028 1/ 2 -13 X 2 3/ 4 GRADE 5 HEX BOLT
11 NLT-5013 1/ 2 - 13 TOP LOCK NUT
12 PB-0009 BRI DGE PIN # 9
13 RT-2115 TURNBUCKLE WRENCH
To Next Page
