McFarlane RD-4025 - Page 28

28

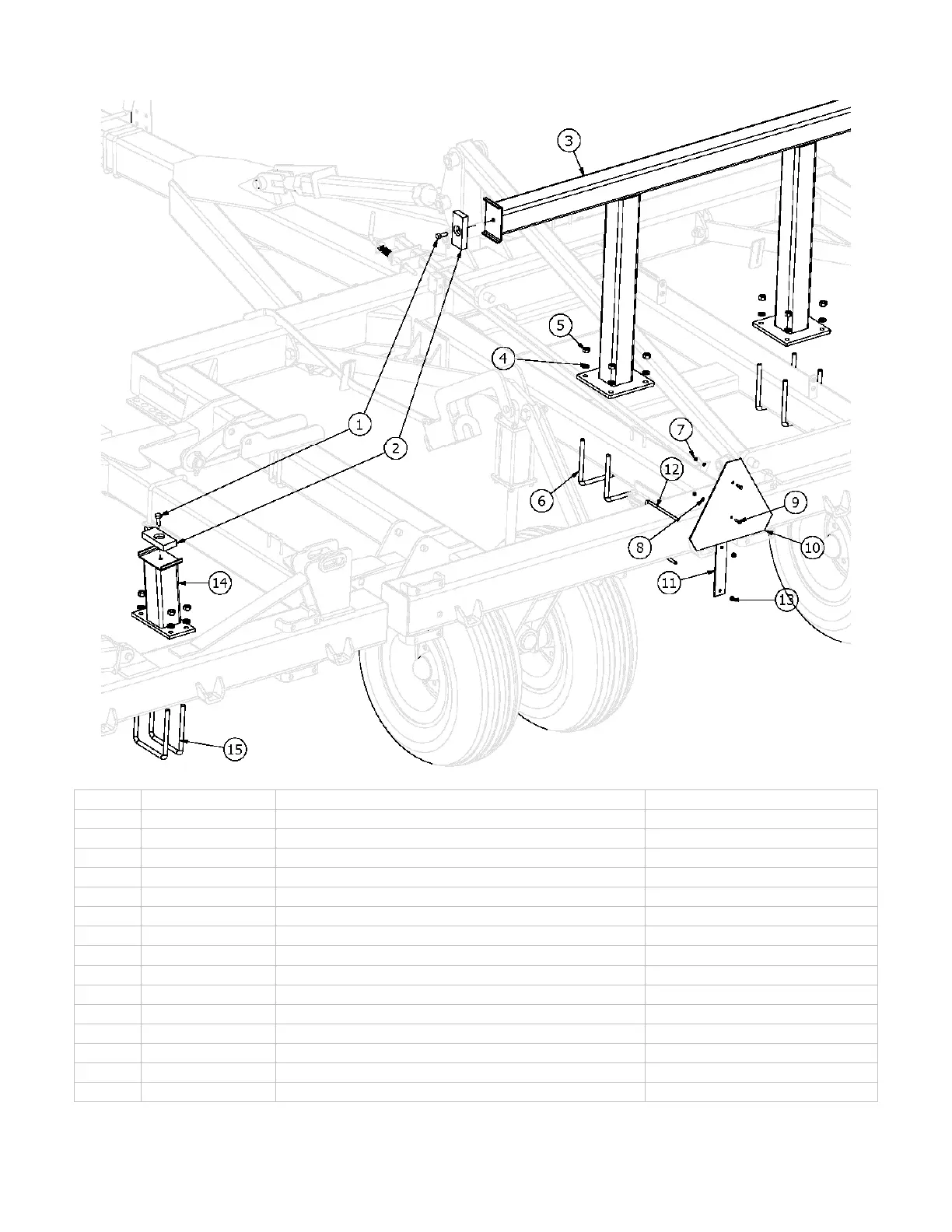

WI NG REST & SMV
FOR 4045
Key Part No. Description Notes/ Revisions
1 BH-5015 1/ 2 -13 X 1 1/ 2 GRADE 5 HEX BOLT
2 RT-3415 WI NG REST BUMPER
3 RD-4636 WI NG REST (4045)
4 LW-0063 5/ 8 LOCK WASHER
5 NH-6311 5/ 8 – 11 HEX NUT
6 BU-5867 5/ 8 - 11 X 6 X 7 1/ 2 U-BOLT
7 NH-2520 1/ 4 – 20 HEX NUT
8 LW-0025 1/ 4 LOCK WASHER
9 BH-2510 1/ 4 -20 X 1 GRADE 5 HEX BOLT
10 MM-1300 SMV SI GN
11 LB-1203 SMV MOUNT BRACKET, 7”
12 BU-3878 3/ 8 - 16 X 7 X 8 U-BOLT
13 NLT-3816 3/ 8 – 16 TOP LOCK NUT
14 RD-4577 WI NG REST, OUTSI DE
15 BU-5879 5/ 8 - 11 X 7 X 8 1/ 2 U-BOLT
