32

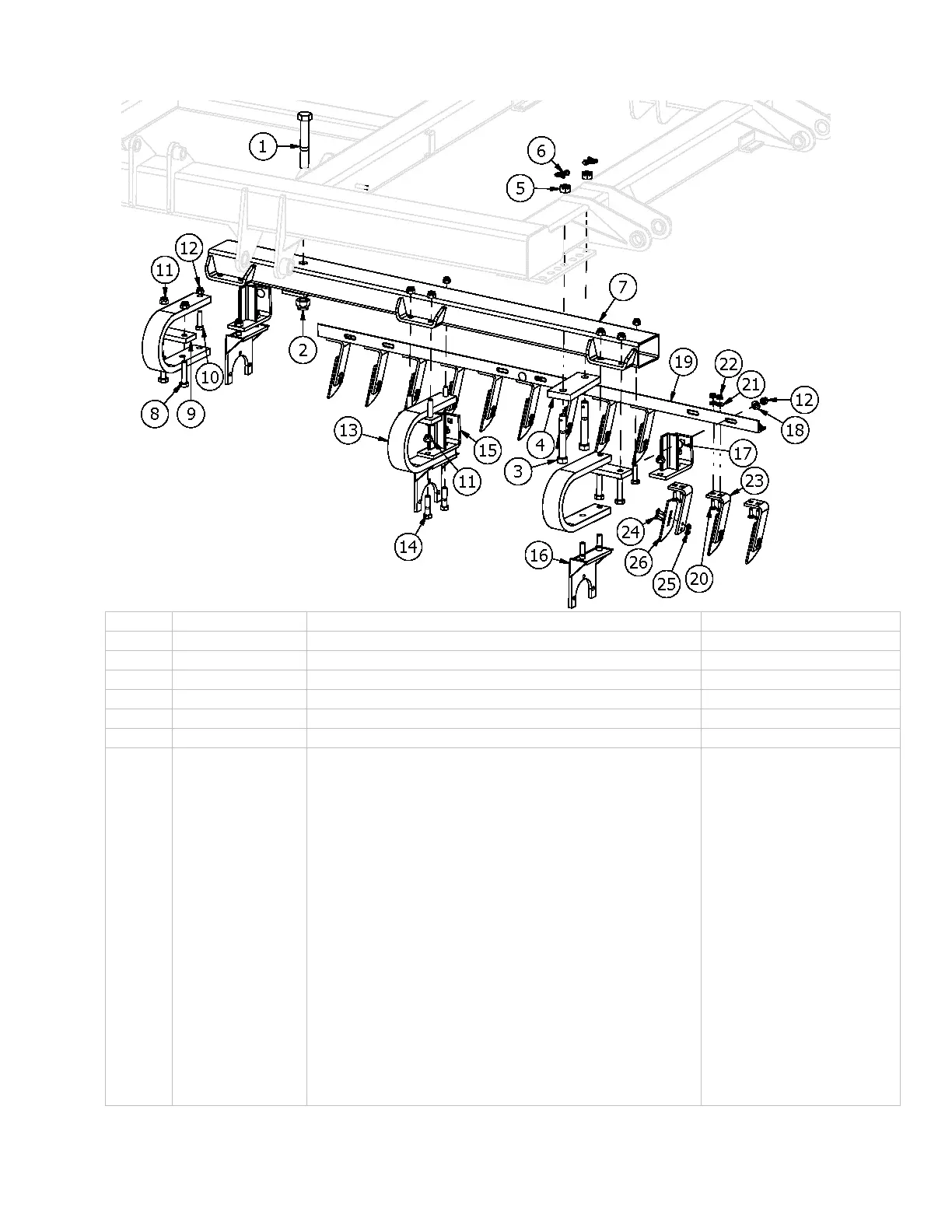

DI SK MOUNT AND SCRAPERS
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 BHY-1380 1 1/ 4 – 7 X 8 GRADE 8 HEX BOLT
2 NY-1307 1 1/ 4 - 7 NYLON LOCK NUT
3 RD-4431 1-8 X 7 GRADE 8 HEX BOLT w/ CROSS HOLE
4 RD-4439 DI SK MOUNT TUBE CLAMP PLATE
5 NC-1008 1– 8 CASTLE NUT
6 LP-1420 1/ 4 X 2 LYNCH PI N
7
RD-4448
RD-4446
RD-4709
RD-4449
RD-4447
RD-4710
RD-4427
RD-4428
RD-4450
RD-4451
RD-4442
RD-4443
RD-4452
RD-4453
RD-4454
RD-4455
RD-4444
RD-4445
RD-4456
DI SK MOUNT TUBE, LEFT (4012-4014)
DI SK MOUNT TUBE, LEFT (4014)
DI SK MOUNT TUBE, LEFT (4016)
DI SK MOUNT TUBE, RIGHT (4012-4014)
DI SK MOUNT TUBE, RIGHT (4014)
DI SK MOUNT TUBE, RIGHT (4016)
DI SK MOUNT TUBE, MAIN, LEFT (4020)
DI SK MOUNT TUBE, MAIN, RI GHT (4020
DI SK MOUNT TUBE, WI NG, LEFT (4020)
DI SK MOUNT TUBE, WI NG, RI GHT (4020)
DI SK MOUNT TUBE, MAIN, LEFT (4025-4030)
DI SK MOUNT TUBE, MAIN, RI GHT (4025-4030)
DI SK MOUNT TUBE, WI NG, LEFT (4025)
DI SK MOUNT TUBE, WI NG, RI GHT (4025)
DI SK MOUNT TUBE, WI NG, LEFT (4030)
DI SK MOUNT TUBE, WING, RI GHT (4030)
DI SK MOUNT TUBE, MAIN, LEFT (4035)
DI SK MOUNT TUBE, MAIN, RI GHT (4035)
DI SK MOUNT TUBE, WING, LEFT (4035)
