McFarlane RD-4025 - Page 34

34

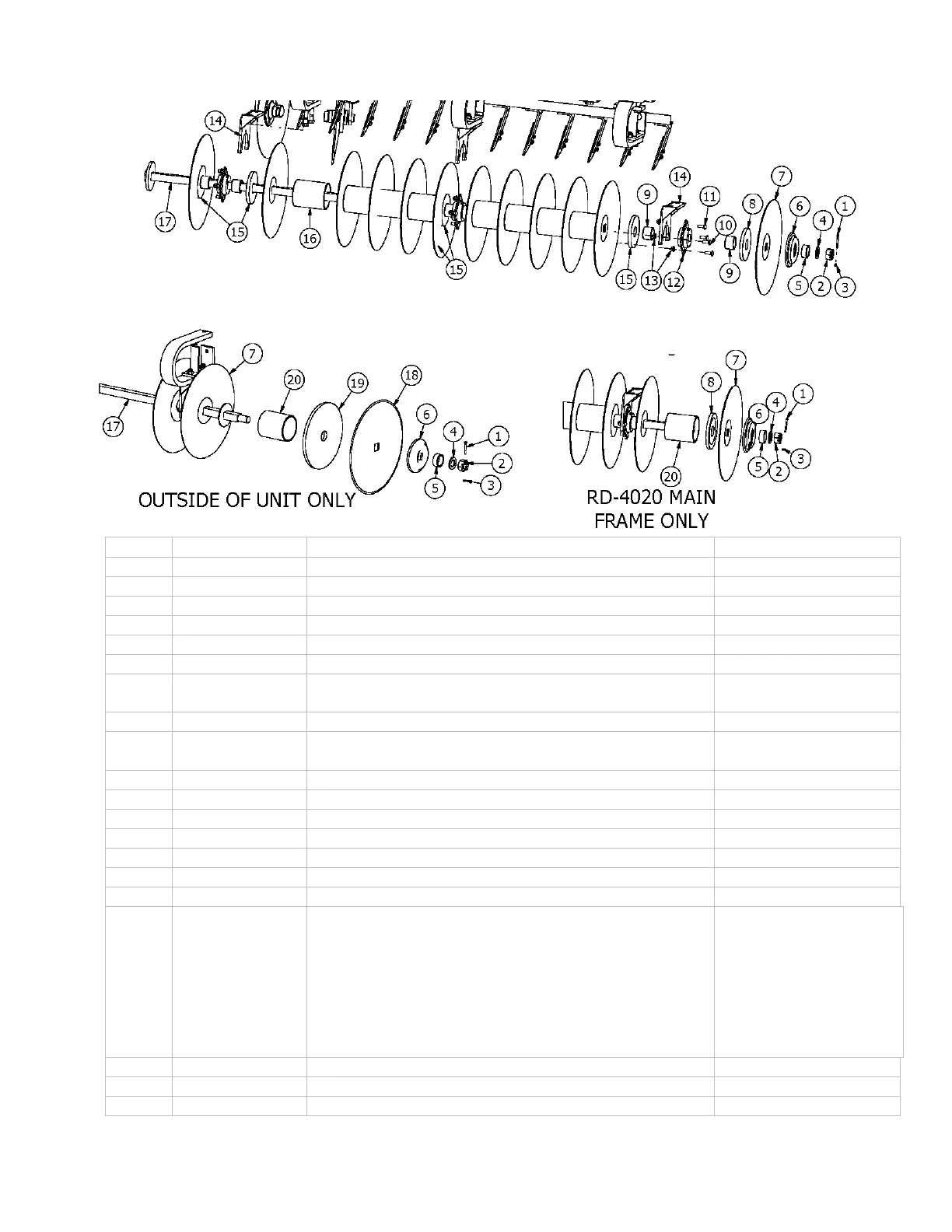

DI SK GANG
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 BH-2525 1/ 4 - 20 X 2 1/ 2 GRADE 5 HEX BOLT
2 NC-1406 1 3/ 8 – 6 CASTLE NUT
3 NLT-2520 1/ 4 TOP LOCK NUT
4 FW-0138 1 3/ 8 MACHI NE WASHER
5 RD-4843 DI SK END SPACER DOM
6 RD-4471 DI SK GANG TENSI ON WASHER
7 RD-4477
RD-4479
DI SK BLADE, 5mm, 20”
DI SK BLADE, 6mm, 20”
8 RD-4845 DI SK BEARI NG SPACER PLATE
9 RD-4840
RD-4844
DI SK BEARING SPACER DOM, 5mm BLADES (1.771”)
DI SK BEARING SPACER DOM, 6mm BLADES (1.709”)
10 BC-5020 1/ 2 - 13 X 2 CARRI AGE BOLT
11 BC-5015 1/ 2 - 13 X 1 1/ 2 CARRIAGE BOLT
12 RD-4498 DI SK GANG BEARI NG, RIVETED, 1 1/ 2 SQUARE
13 NLF-5013 1/ 2” FLANGED LOCK NUT
14 RD-4472 DI SK BEARING MOUNT
15 RD-4841 DI SK BEARING SPACER PLATE
16 RT-2260 GANG SPOOL, 6 3/ 4
17 RD-4830
RD-4831
RD-4832
RD-4837
RD-4833
RD-4834
RD-4835
RD-4836
DI SK GANG SHAFT, 7 BLADE – 47” (4020)
DI SK GANG SHAFT, 8 BLADE – 54” (4035)
DI SK GANG SHAFT, 9 BLADE – 61” (4020, 4025)
DI SK GANG SHAFT, 10 BLADE – 68” (4012, 4045)
DI SK GANG SHAFT, 11 BLADE – 75” (4014)
DI SK GANG SHAFT, 12 BLADE – 82” (4025, 4030)
DI SK GANG SHAFT, 13 BLADE – 89” (4030)
DI SK GANG SHAFT, 14 BLADE – 96” (4035, 4045)
18 SPR-2068 COULTER BLADE (OUTSI DE OF UNIT ONLY)
19 RD-4475 BLADE SUPPORT PLATE (OUTSI DE OF UNIT ONLY)
20 RD-4474 GANG SPOOL, 6 3/ 16” (OUTSI DE OF UNIT ONLY)
