McFarlane RD-4025 - Spindle and Hub Assembly

60

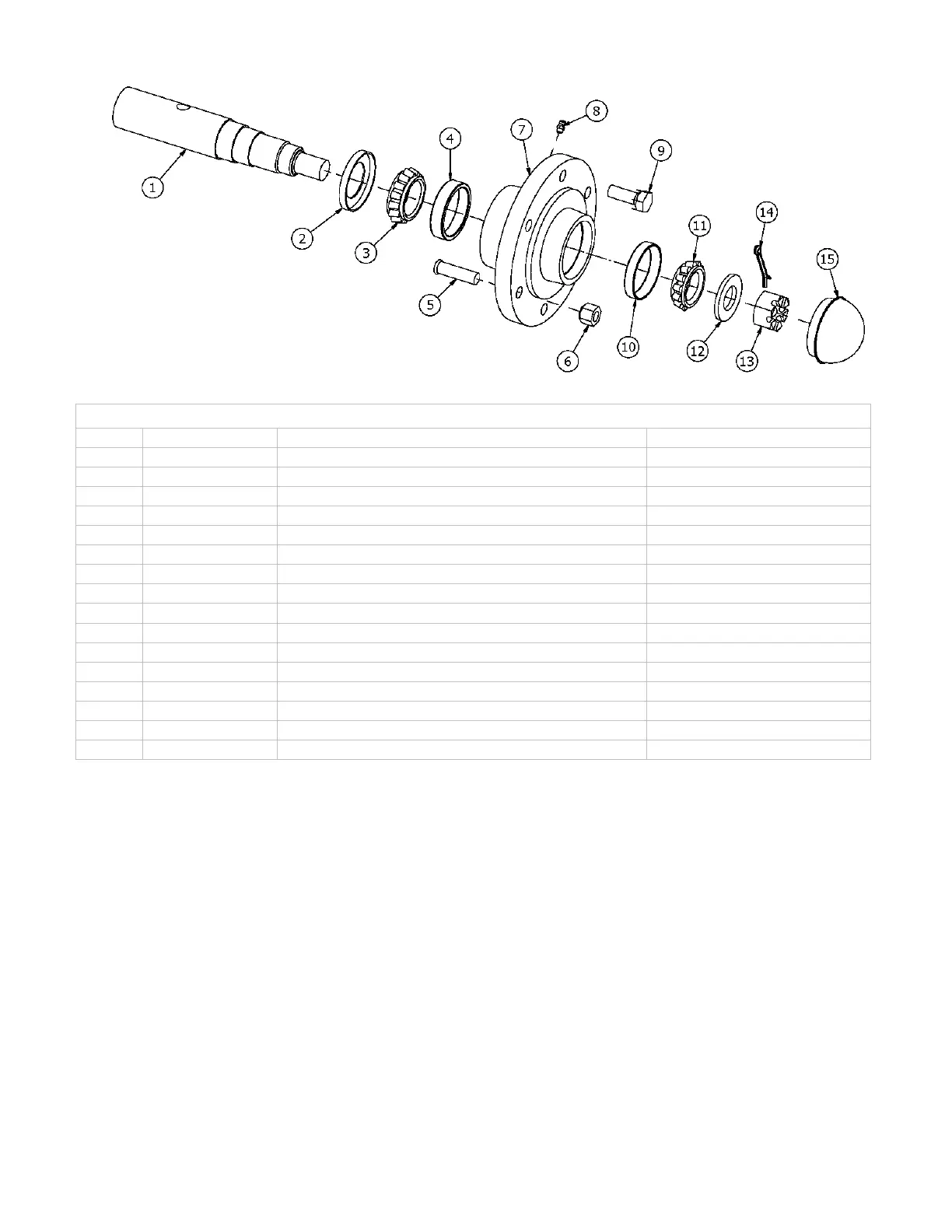

SPI NDLE AND HUB
6-HOLE HUB ASSEMBLY SHOWN
4-BOLT HUB ( 18.5x8.5x8 RI M)
Key Part No. Description Notes/ Revisions
1 HD-1122 SPI NDLE, 1 1/ 4 X 8 1/ 4
2 HD-1179 GREASE SEAL, 4 BOLT HUB CR12407
3 HD-1178 INNER BEARI NG L44643
4 HD-1182 INNER RACE L44610
5 HD-1191 WHEEL STUD 1/ 2 - 20 X 1 7/ 8
6 WN-0050 WHEEL NUTS 1/ 2 - 20
7 HD-1180 HUB WITH RACES, 4 BOLT HUB
8 GZ-0601 GREASE ZERK
9 N/ A WHEEL BOLTS 1/ 2 - 20 X 1 3/ 4
10 HD-1182 OUTER RACE L44610
11 HD-1178 OUTER BEARI NG L44643
12 HD-1164 SPI NDLE FLAT WASHER 13/ 16
13 HD-1165 SPI NDLE HEX CASTLE NUT 3/ 4 - 16 UNF
14 CP-5312 COTTER PI N (0.150 X 1 1/ 4)
15 HD-1181 DUST CAP
HD-1190 4-BOLT HUB ASSEMBLY I ncludes items 2,3,7,11,15
