151

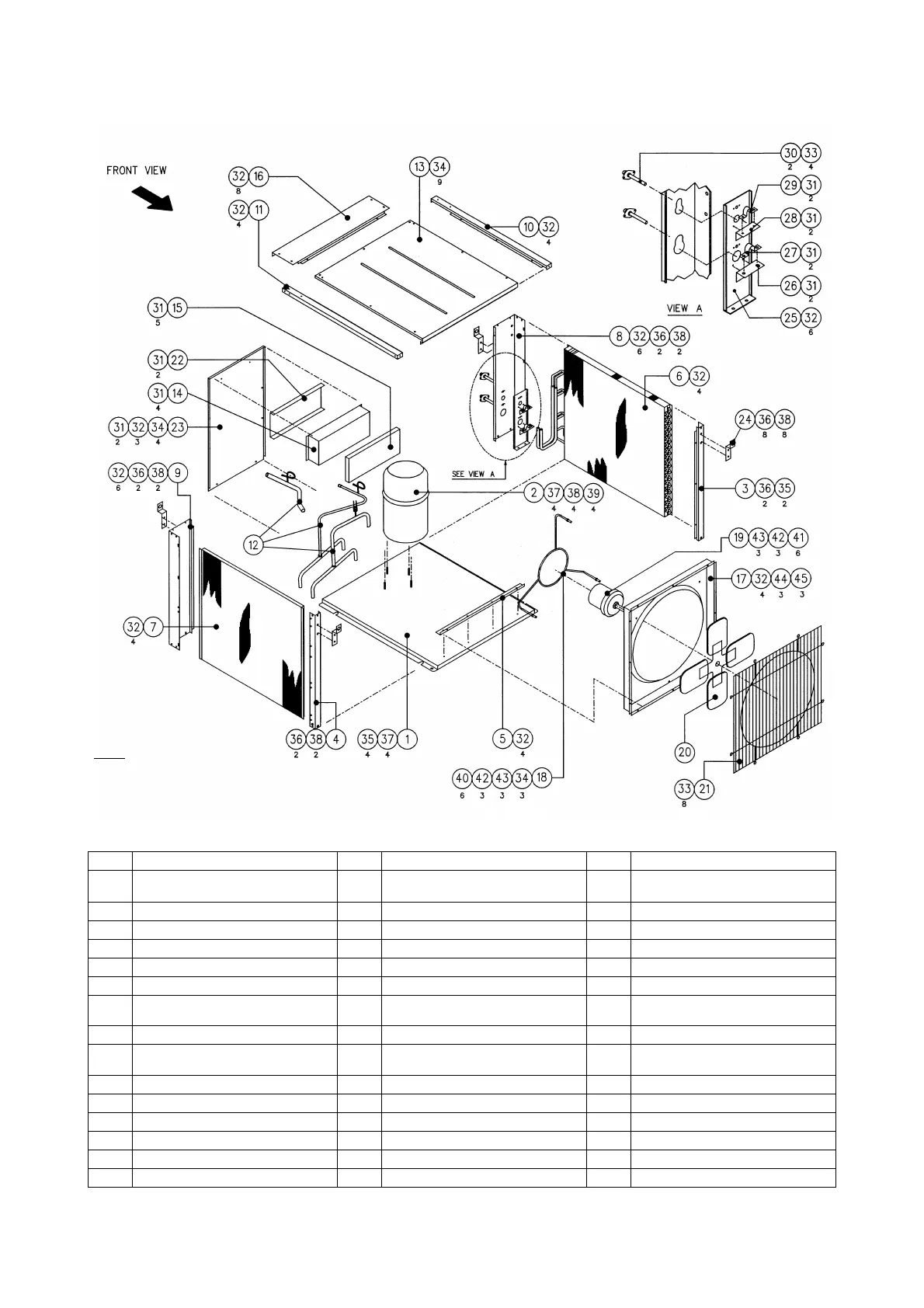

MODEL : MMC100B
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 16 PANEL, TOP FRONT 31
SCREW, S.T. TRUSS HEAD
PHILIP
2 ASSY., COMPRESSOR 17 PLATE, ORIFICE 32 SCREW, TRUSS HEAD PHILIP
3 ASSY., STRUCTURE BACK LEFT 18 BACKET, FAN MOTOR 33 SCREW, TRUSS HEAD PHILIP
4 ASSY., STRUCTURE BACK RIGHT 19 MOTOR, FAN 34 SCREW, SELF TAPPING
5 PANEL, ORIFICE SUPPORT 20 BLADE, FAN 35 SCREW, WOOD
6 ASSY., COIL LEFT 21 GUARD, FAN 36 BOLT, HEXAGON
7 ASSY., COIL RIGHT 22
COVER, TERMINAL BOARD
FRONT
37 WASHER, PLAIN
8 ASSY., STRUCTURE FRONT LEFT 23 PANEL, FRONT 38 WASHER, SPRING
9
ASSY., STRUCTURE FRONT
RIGHT
24 BRACKET, HOISTING 39 NUT, HEXAGON
10 STURCTURE, TOP LEFT 25 STRUCTURE, TUBE SUPPORT 40 WASHER, ,ISOLATOR
11 STURCTURE, TOP RIGHT 26 SUPPORT, TUBE GAS OD 1
1
/
8
” 41 WASHER, PLAIN
12 ASSY., UNIT TUBING 27 CLAMP, GAS TUBE OD 1
1
/
8
” 42 WASHER, SPRING
13 PANEL, TOP OR BACK 28 SUPPORT, TUBE LIQUID OD
5
/
8
” 43 NUT, HEXAGON
14 ASSY., TERMINAL BOARD MAIN 29 CLAMP, TUBE LIQUID OD
5
/
8
” 44 ISOLATOR, DURO 40
15 COVER, TERMINAL BOARD BACK 30 ASSY., ACCESS VALVE ¼” 45 ISOLATOR SLEEVE
NOTE :
1) WITH COPELAND SCROLL COMPRESSOR
2) WITH TECO FAN MOTOR
3) WITH NANTONG AUTO RESET H/L PRESSURE
SWITCH
4) WITH TORIN FAN BLADE
5) FOR 380-420V/3PH/50Hz
6) FOR HORIZONTAL AIR DISCHARGE
7) FOR EXPORT SPEC
