116

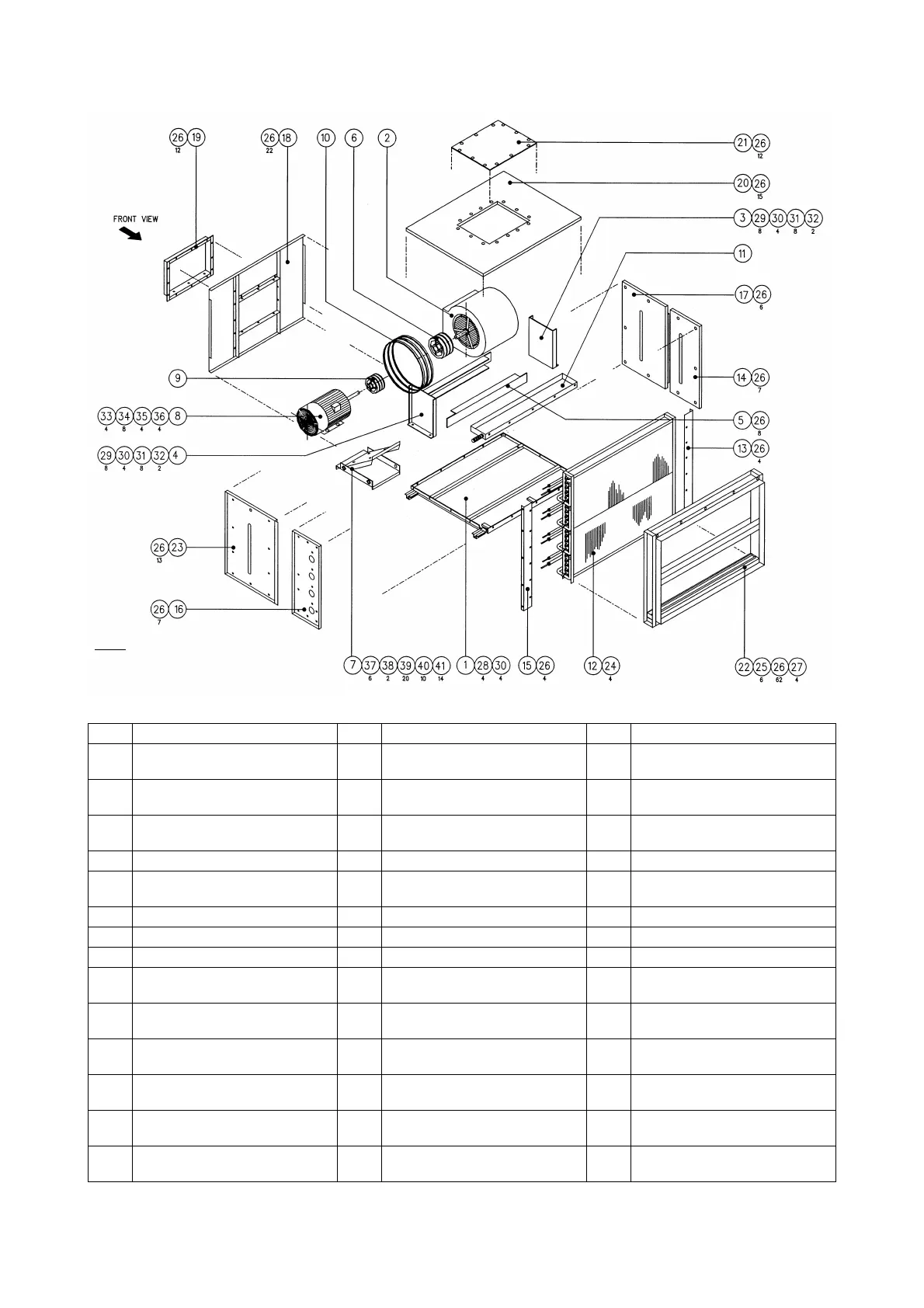

MODEL : MDB 400B4
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 15
ASSY., COIL SIDE COVER
RIGHT
29 BOLT, HEXAGON
2 ASSY., BLOWER HOUSING 16
ASSY., SIDE PANEL BACK
RIGHT
30 WASHER, PLAIN
3 SUPPORT, BLOWER LEFT 17
ASSY., SIDE PANEL FRONT
LEFT
31 WASHER, SPRING
4 SUPPORT, BLOWER RIGHT 18 ASSY., FRONT PANEL 32 NUT, HEXAGON
5
SUPPORT, BLOWER STRUC.
F/B
19 ASSY., BLOWER FLANGE 33 BOLT, HEXAGON
6 PULLEY, BLOWER 20 ASSY., TOP PANEL 34 WASHER, PLAIN
7 ASSY., MOTOR BRACKET 21 BLOWER, COVER 35 WASHER, SPRING
8 MOTOR 22 ASSY., FILTER SECTION 36 NUT, HEXAGON
9 PULLEY, MOTOR 23
ASSY., SIDE PANEL FRONT
RIGHT
37 BOLT, HEXAGON
10 V-BELT 24
SCREW, S.T. TRUSS HEAD
PHILIP
38 BOLT, HEXAGON
11 ASSY., DRAIN PAN 25
SCREW, SELF TAPPING PAN
HEAD
39 WASHER, PLAIN
12 ASSY., COIL 26 SCREW, TRUSS HEAD PHILIP 40 WASHER, SPRING
13
ASSY., COIL SIDE COVER
LEFT
27 SCREW, TRUSS HEAD PHILIP
14
ASSY., SIDE PANEL BACK
LEFT
28 SCREW, WOOD
NOTE :
1) WITH TECO INDUCTION MOTOR
2) WITH NICOTRA FORWARD CURVE BLOWER
3) WITH ALCO THERMOSTATIC EXPANSION VALVE
4) FOR 400V/3PH/50Hz
5) FOR LOCAL AND EXPORT SPEC.
6) FOR HORIZONTAL AIR DISCHARGE
