McQuay MMC100D User Manual

133

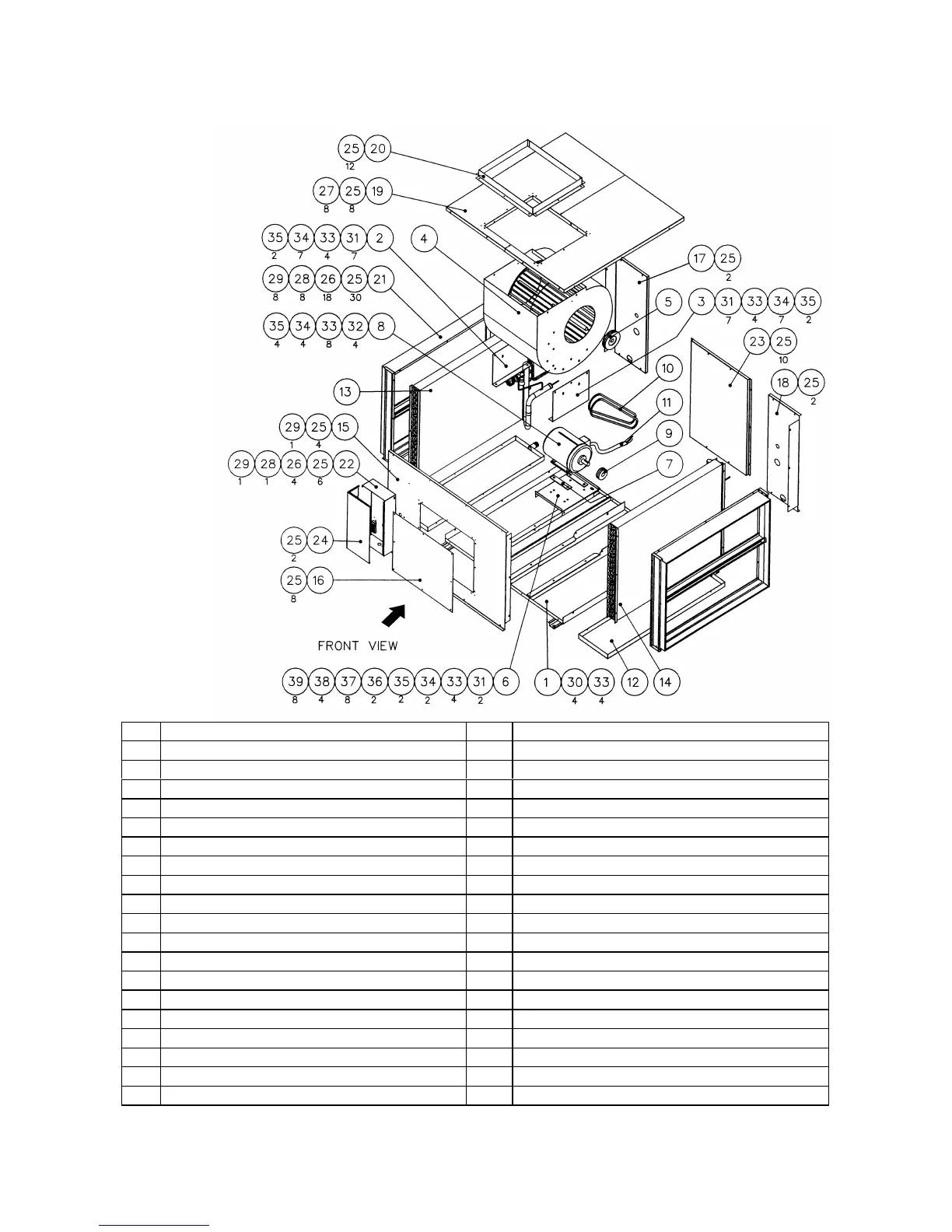

MODEL : MDB 250D2 (VERTICAL AIR DISCHARGE)
1 ASSY, BASE PAN INS. 21 ASSY, SECTION FILTER
2 SUPPORT, BLOWER LEFT 22 ASSY, TERMINAL BOX
3 SUPPORT, BLOWER RIGHT 23 ASSY, PANEL SERVICE INS.
4 ASSY, BLOWER HOUSING 24 COVER, TERMINAL BOX
5 PULLEY, BLOWER 25 SCREW, S.T.TRUSS HEAD PHILIP
6 BASE, MOTOR UPPER 26 SCREW, SELF TAPPING PAN HEAD
7 RUBBER SHEET 27 SCREW, TRUSS HEAD PHILIP
8 MOTOR 28 SCREW, TRUSS HEAD PHILIP
9 PULLEY, MOTOR 29 NUT, WELD
10 V-BELT 30 SCREW, WOOD
11 ASSY, FAN MOTOR HARNESS WIRE 31 BOLT, HEXAGON
12 ASSY, DRAIN PAN INS. 32 BOLT, HEXAGON
13 ASSY, COIL LEFT 33 WASHER, PLAIN
14 ASSY, COIL RIGHT 34 WASHER, SPRING
15 ASSY, PANEL FRONT INS. 35 NUT, HEXAGON
16 COVER, BLOWER 36 BOLT, ADJUSTING
17 ASSY, PANEL HEADER LEFT INS. 37 WASHER, PLAIN
18 ASSY, PANEL HEADER RIGHT INS. 38 WASHER, SPRING
19 ASSY, TOP PANEL INS. 39 NUT, HEXAGON
20 ASSY, FLANGE BLOWER
NOTE :
1) WITH SEQUENTIAL CONTROLLER
2) VERTICAL AIR DISCHARGE
