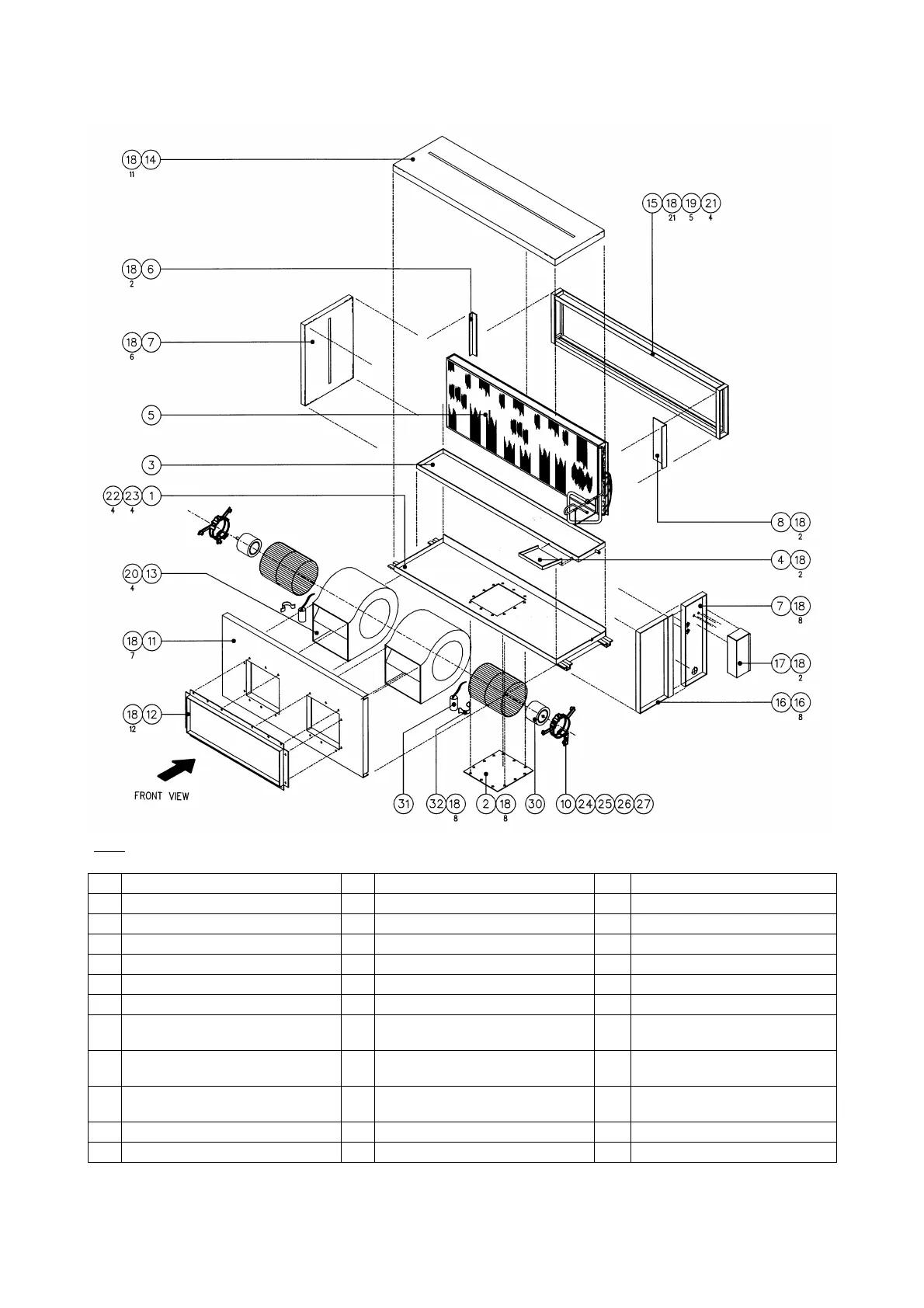

MODEL : MDB100BR
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 12 ASSY., BLOWER FLANGE 23 WASHER, PLAIN
2 PANEL, BASE COVER 13 ASSY., BLOWER HOUSING 24 BOLT, HEXAGON
3 ASSY., DRAIN PAN 14 ASSY., TOP PANEL 25 WASHER, PLAIN
4 ASSY., DRAIN PAN SMALL 15 ASSY., FILTER SECTION 26 WASHER. SPRING
5 ASSY., COIL 16 ASSY., SIDE PANEL RIGHT BIG 27 NUT, HEXAGON
6 ASSY., COIL SIDE COVER LEFT 17 TERMINAL BOX 28 GROMMET, MOTOR
7 ASSY., SIDE PANEL LEFT 18
SCREW, S.T. TRUSS HEAD
PHILIP
29 NUT, HEXAGON
8
ASSY., COIL SIDE COVER
RIGHT
19
SCREW, SELF TAPPING PAN
HEAD
30 MOTOR
9
ASSY., SIDE PANEL RIGHT
SMALL
20 SCREW, TRUSS HEAD PHILIP 31 CAPACITOR 7.5uF 440V 50Hz
10 FAN, MOTOR BRACKET 21 SCREW, TRUSS HEAD PHILIP 32 CLAMP, CAPACITOR
11 ASSY., FRONT PANEL 22 SCREW, WOOD
NOTE :
1) FOR 220-240V/1PH/50Hz
