138

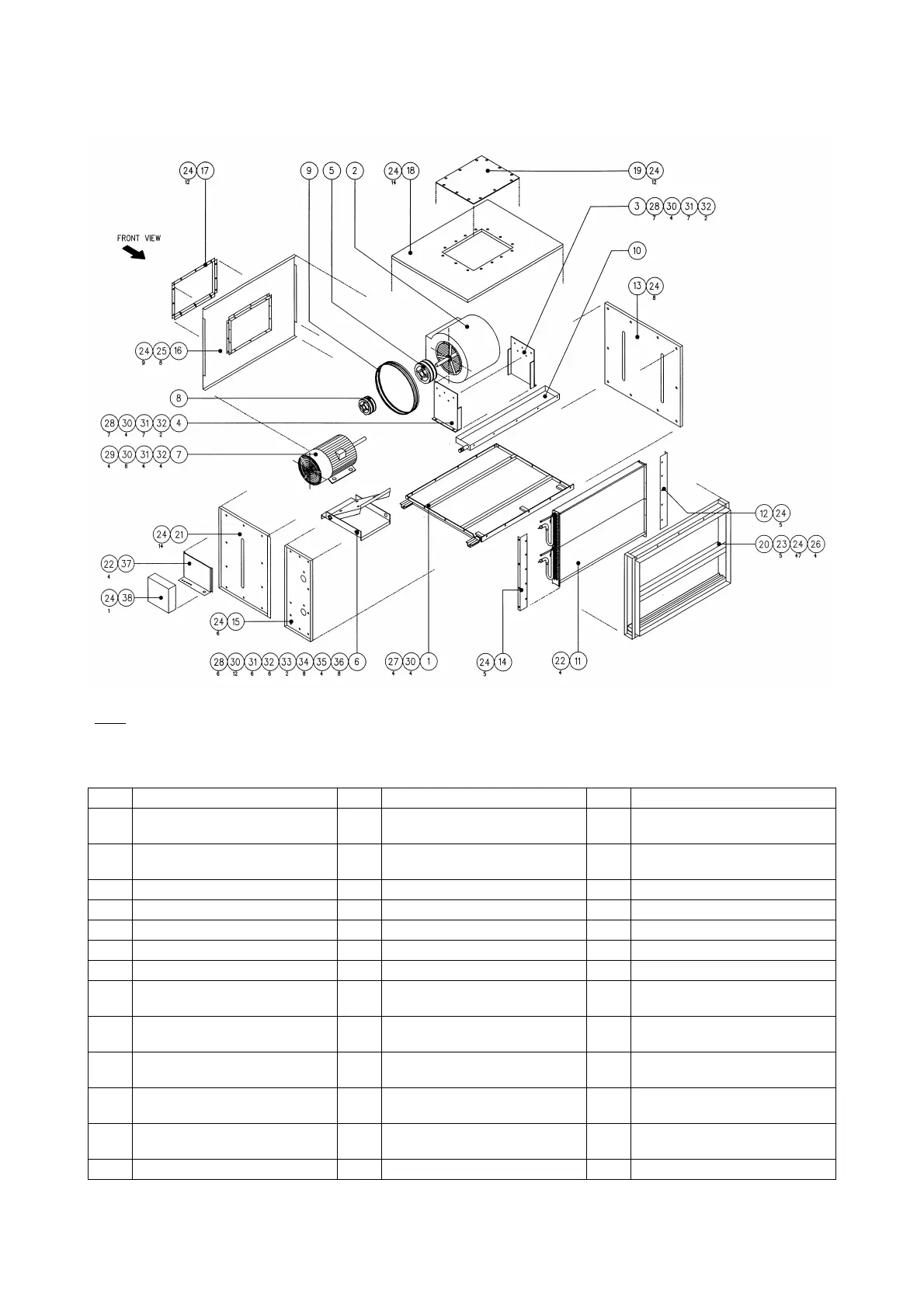

MODEL : MDB250BR2
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 14
ASSY., COIL SIDE COVER
RIGHT
27 SCREW, WOOD
2 ASSY., BLOWER HOUSING 15
ASSY., SIDE PANEL SMALL
RIGHT
28 BOLT, HEXAGON
3 SUPPORT, BLOWER LEFT 16 ASSY., FRONT PANEL 29 BOLT, HEXAGON
4 SUPPORT, BLOWER RIGHT 17 ASSY., BLOWER FLANGE 30 WASHER, PLAIN
5 PULLEY, BLOWER 18 ASSY., TOP PANEL 31 WASHER, SPRING
6 ASSY., MOTOR BRACKET 19 COVER, BLOWER 32 NUT, HEXAGON
7 MOTOR 20 ASSY., FILTER SECTION 33 BOLT, ADJUSTING
8 PULLEY, MOTOR 21
ASSY., SIDE PANEL BIG
RIGHT
34 WASHER, PLAIN
9 V-BELT 22
SCREW, S.T. TRUSS HEAD
PHILIP
35 WASHER, SPRING
10 ASSY., DRAIN PAN 23
SCREW, SELF TAPPING PAN
HEAD
36 NUT, HEXAGON
11 ASSY., COIL TUBING 24 SCREW, TRUSS HEAD PHILIP 37
ASSY., SEQ. CONT. BASE
(MAIN)
12
ASSY., COIL SIDE COVER
LEFT
25 SCREW, TRUSS HEAD PHILIP 38 COVER, TERMINAL
13 ASSY., SIDE PANEL LEFT 26 SCREW, TRUSS HEAD PHILIP
NOTE :
1) WITH TECO INDUCTION MOTOR
2) WITH NICOTRA FORWARD CURVE BLOWER
3) FOR 400V/3PH/50Hz
4) FOR HORIZONTAL AIR DISCHARGE
To Next Page
