McQuay MMC125BR User Manual

142

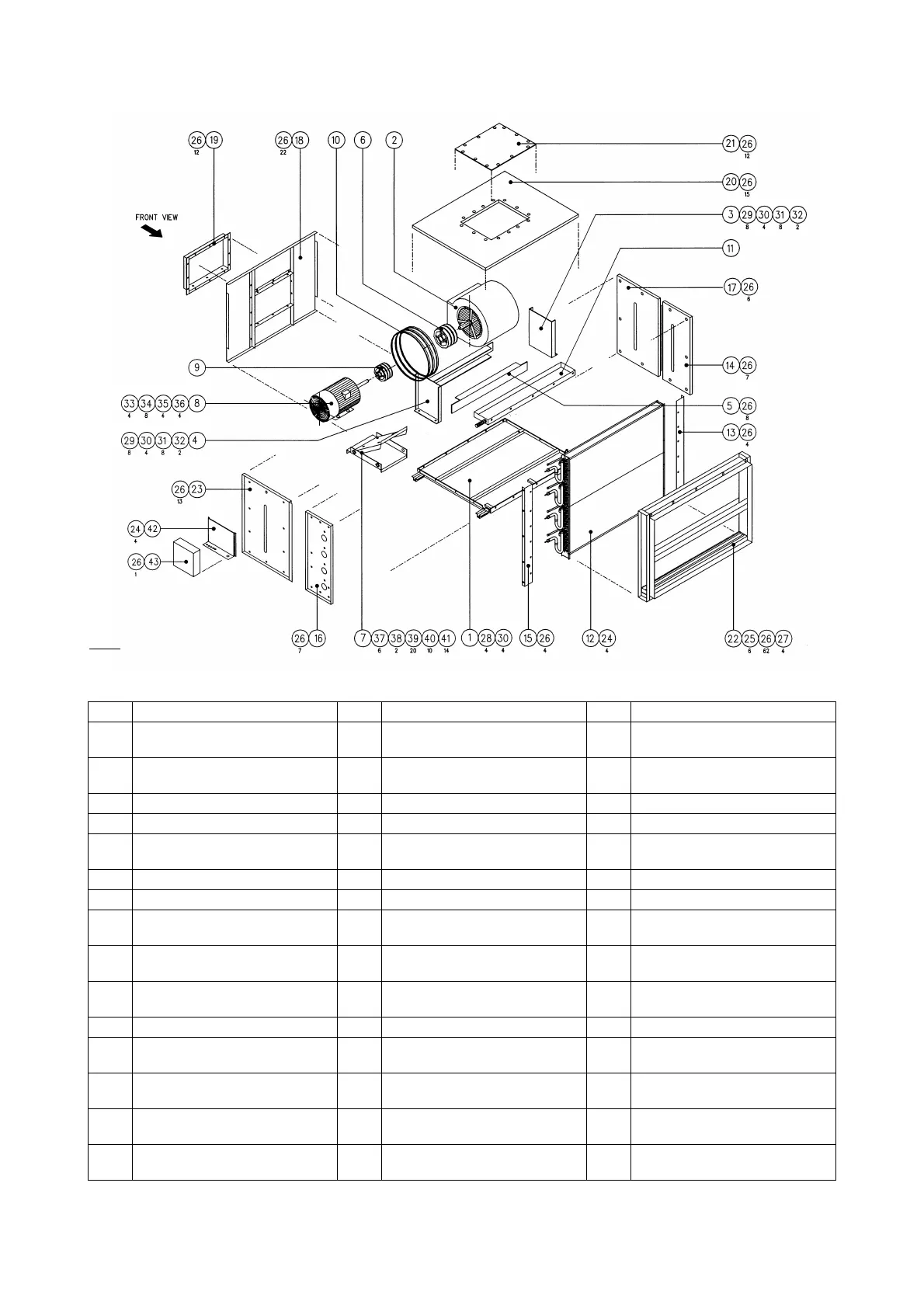

MODEL : MDB500BR4
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 16
ASSY., SIDE PANEL BACK
RIGHT
31 WASHER, SPRING
2 ASSY., BLOWER HOUSING 17
ASSY., SIDE PANEL FRONT
LEFT
32 NUT, HEXAGON
3 SUPPORT, BLOWER LEFT 18 ASSY., FRONT PANEL 33 BOLT, HEXAGON
4 SUPPORT, BLOWER RIGHT 19 ASSY., BLOWER FLANGE 34 WASHER, PLAIN
5
SUPPORT, BLOWER STRUC.
F/B
20 ASSY., TOP PANEL 35 WASHER, SPRING
6 PULLEY, BLOWER 21 BLOWER, COVER 36 NUT, HEXAGON
7 ASSY., MOTOR BRACKET 22 ASSY., FILTER SECTION 37 BOLT, HEXAGON
8 MOTOR 23
ASSY., SIDE PANEL FRONT
RIGHT
38 BOLT, HEXAGON
9 PULLEY, MOTOR 24
SCREW, S.T. TRUSS HEAD
PHILIP
39 WASHER, PLAIN
10 V-BELT 25
SCREW, SELF TAPPING PAN
HEAD
40 WASHER, SPRING
11 ASSY., DRAIN PAN 26 SCREW, TRUSS HEAD PHILIP 41 NUT, HEXAGON
12 ASSY., COIL TUBING 27 SCREW, TRUSS HEAD PHILIP 42
ASSY., SEQ. CONT. BASE
(MAIN)
13
ASSY., COIL SIDE COVER
LEFT
28 SCREW, WOOD 43 COVER, TERMINAL
14
ASSY., SIDE PANEL BACK
LEFT
29 BOLT, HEXAGON
15
ASSY., COIL SIDE COVER
RIGHT
30 WASHER, PLAIN
NOTE :
1) WITH TECO INDUCTION MOTOR
2) WITH NICOTRA FORWARD CURVE BLOWER
3) FOR 400V/3PH/50Hz
4) FOR HORIZONTAL AIR DISCHARGE
