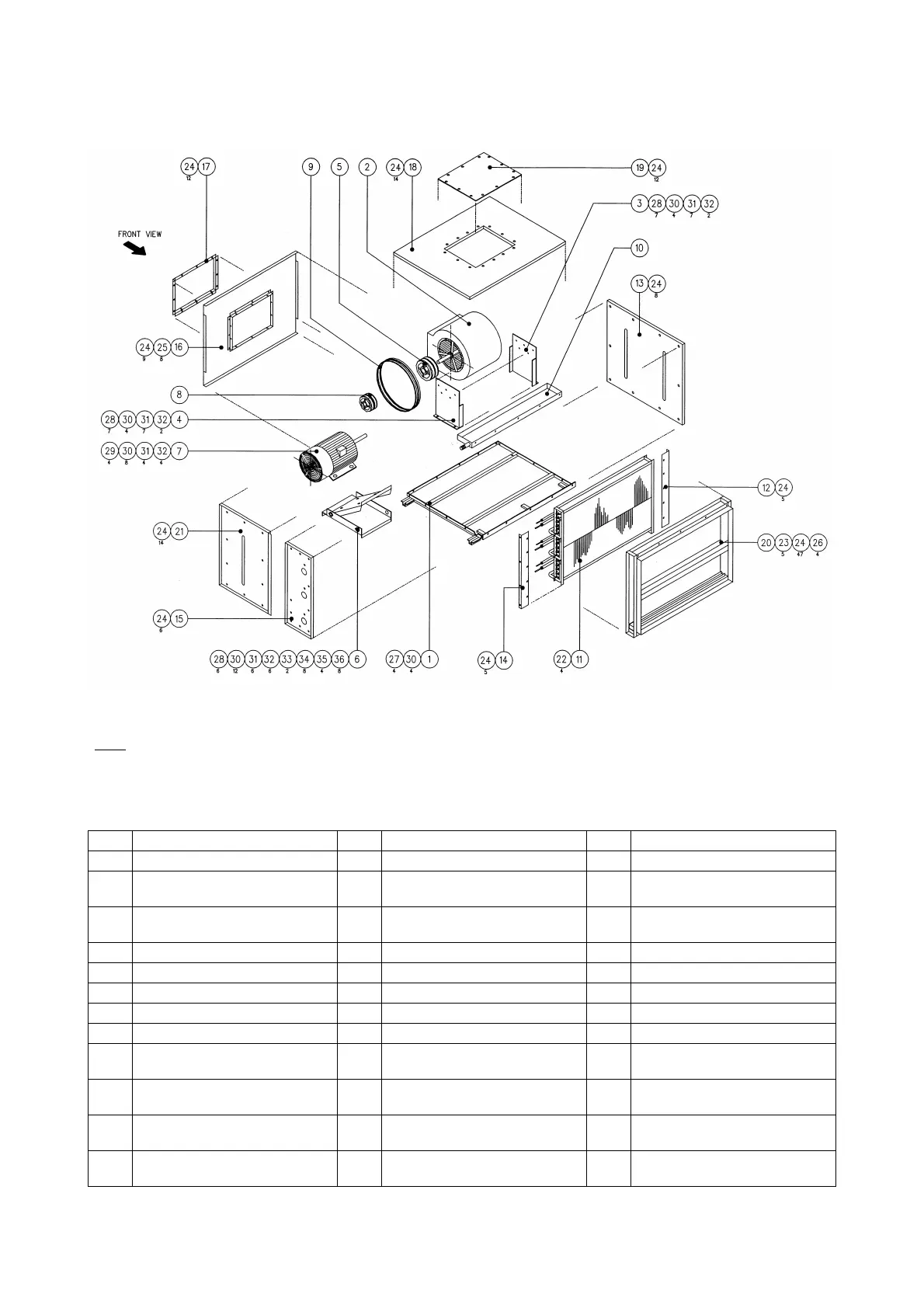

MODEL : MDB300B3
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 13 ASSY., SIDE PANEL LEFT 25 SCREW, TRUSS HEAD PHILIP
2 ASSY., BLOWER HOUSING 14
ASSY., COIL SIDE COVER
RIGHT
26 SCREW, TRUSS HEAD PHILIP
3 SUPPORT, BLOWER LEFT 15
ASSY., SIDE PANEL SMALL
RIGHT
27 SCREW, WOOD
4 SUPPORT, BLOWER RIGHT 16 ASSY., FRONT PANEL 28 BOLT, HEXAGON
5 PULLEY, BLOWER 17 ASSY., BLOWER FLANGE 29 BOLT, HEXAGON
6 ASSY., MOTOR BRACKET 18 ASSY., TOP PANEL 30 WASHER, PLAIN
7 MOTOR 19 COVER, BLOWER 31 WASHER, SPRING
8 PULLEY, MOTOR 20 ASSY., FILTER SECTION 32 NUT, HEXAGON
9 V-BELT 21
ASSY., SIDE PANEL BIG
RIGHT
33 BOLT, ADJUSTING
10 ASSY., DRAIN PAN 22
SCREW, S.T. TRUSS HEAD
PHILIP
34 WASHER, PLAIN
11 ASSY., COIL 23
SCREW, SELF TAPPING PAN
HEAD
35 WASHER, SPRING
12
ASSY., COIL SIDE COVER
LEFT
24 SCREW, TRUSS HEAD PHILIP 36 NUT, HEXAGON
NOTE :
1) WITH TECO INDUCTION MOTOR
2) WITH NICOTRA FORWARD CURVE BLOWER
3) WITH ALCO THERMOSTATIC EXPANSION VALVE
4) FOR 400V/3PH/50Hz
5) FOR LOCAL AND EXPORT SPEC.
6) FOR HORIZONTAL AIR DISCHARGE
