119

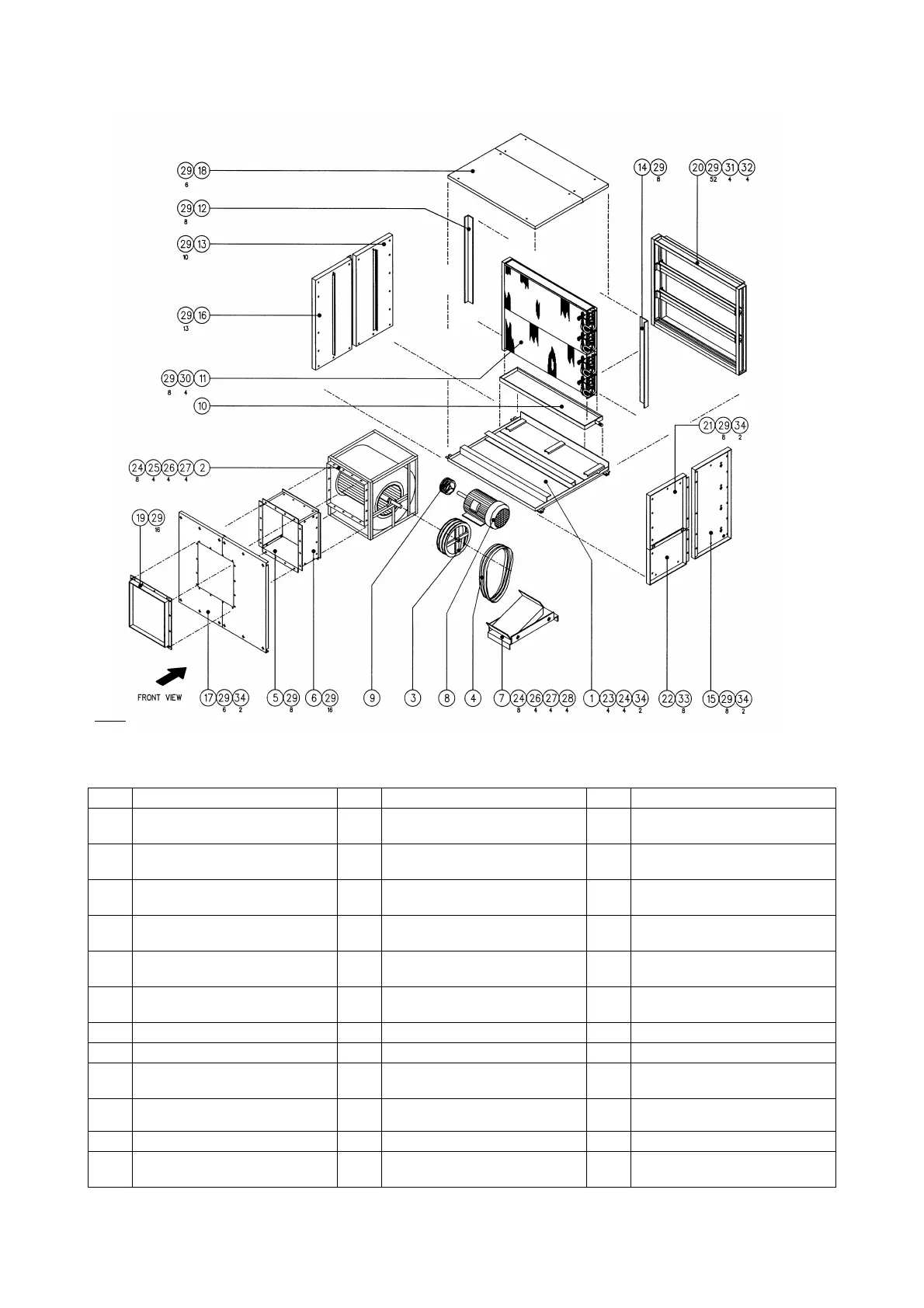

MODEL : MDB600B4
NO DESCRIPTION NO DESCRIPTION NO DESCRIPTION
1 ASSY., BASE PAN 13
ASSY., SIDE PANEL BACK
LEFT
25 BOLT, HEXAGON
2 ASSY., BLOWER HOUSING 14
ASSY., COIL SIDE COVER
RIGHT
26 WASHER, SPRING
3 PULLEY, BLOWER 15
ASSY., SIDE PANEL BACK
RIGHT
27 NUT, HEXAGON
4 V-BELT 16
ASSY., SIDE PANEL FRONT
LEFT
28 BOLT, HEXAGON
5
PANEL, BLOWER DUCT
FRONT/BACK
17 ASSY., FRONT PANEL 29 SCREW, TRUSS HEAD PHILIP
6
PANEL, BLOWER DUCT
LEFT/RIGHT
18 ASSY., TOP PANEL 30 SCREW, TRUSS HEAD PHILIP
7 ASSY., MOTOR BRACKET 19 ASSY., BLOWER FLANGE 31 SCREW, TRUSS HEAD PHILIP
8 MOTOR 20 ASSY., FILTER SECTION 32 SCREW, TRUSS HEAD PHILIP
9 PULLEY, MOTOR 21
ASSY., SIDE PANEL FRONT
TOP/RIGHT
33 SCREW, BUTTERFLY
10 ASSY., DRAIN PAN 22
ASSY., SIDE PANEL FRONT
BOTTOM/RIGHT
34 NUT, WELD
11 ASSY., COIL 23 SCREW, WOOD
12
ASSY., COIL SIDE COVER
LEFT
24 WASHER, PLAIN
NOTE :
1) WITH TECO INDUCTION MOTOR
2) WITH NICOTRA FORWARD CURVE BLOWER
3) WITH DANFOSS THERMOSTATIC EXPANSION VALVE
4) FOR 400V/3PH/50Hz
5) FOR LOCAL AND EXPORT SPEC.
6) FOR HORIZONTAL AIR DISCHARGE
