DC Inverter U-match Series Floor Ceiling Type Unit
27
5.6.2 Electrical Wiring

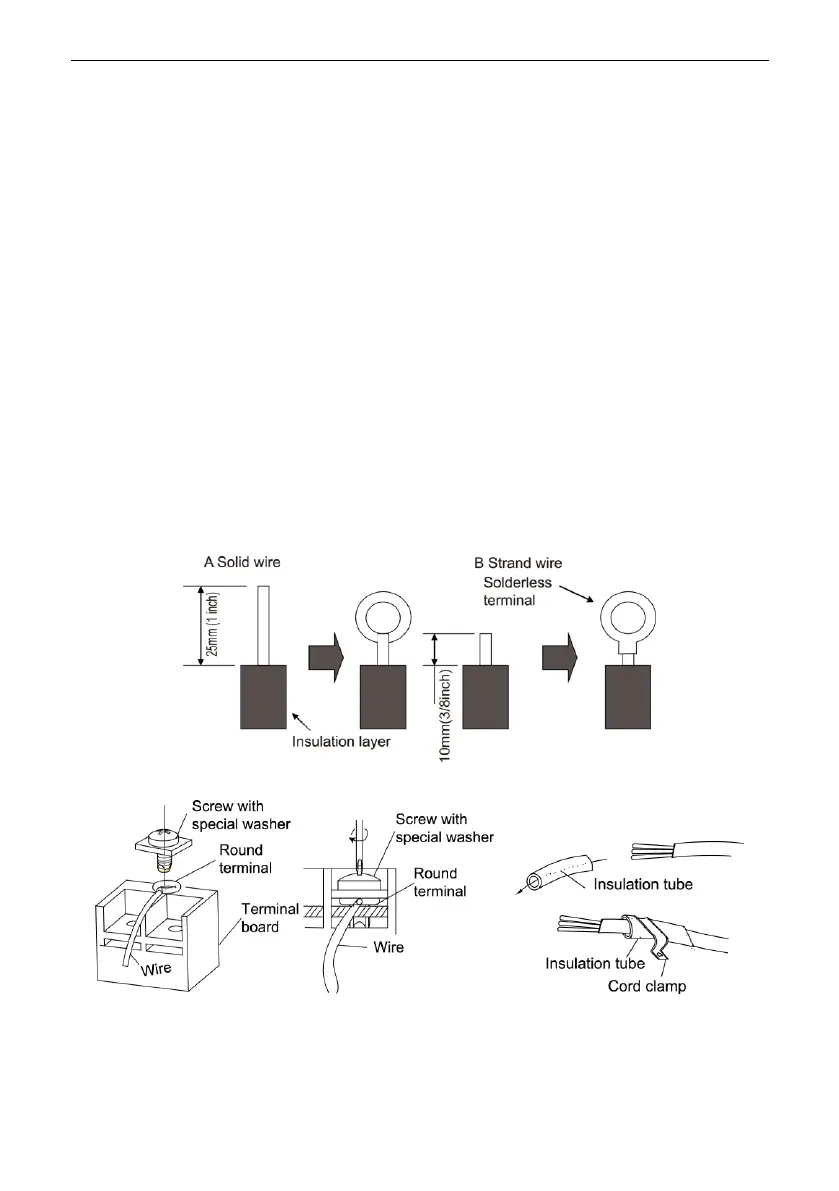

(1). For solid core wiring (Fig. 4.26)
1). Cut the wire end with a wire cutter or wire-cutting pliers, then strip the
insulation about 25 mm (15/16") .
2). Using a screwdriver, remove the terminal screw(s) on the terminal board.
3). Using pliers, bend the solid wire to form a loop suitable for the terminal screw.
4). Shape the loop wire properly, place it on the terminal board and tighten
securely with the terminal screw using a screwdriver.
(2). For strand wiring (Fig. 4.26)
1). Cut the wire end with a wire cutter or wire-cutting pliers, then strip the
insulation about 10 mm (3/8") .
2). Using a screwdriver, remove the terminal screw (s) on the terminal board.
3). Using a round terminal fastener or pliers, securely clamp a round terminal to
each stripped wire end.
4). Position the round terminal wire, and replace and tighten the terminal screw
with a screwdriver.(Fig. 4.27)
Fig. 4.26
Fig. 4.27 Fig. 4.28
(3). How to fix connection cord and power cord by cord clamp
After passing the connection cord and power cord through the insulation tube,
fasten it with the cord clamp.(Fig. 4.28)
