MCQUAY Servi
ce Guide Book
Controller Co
nfigurati
on
34

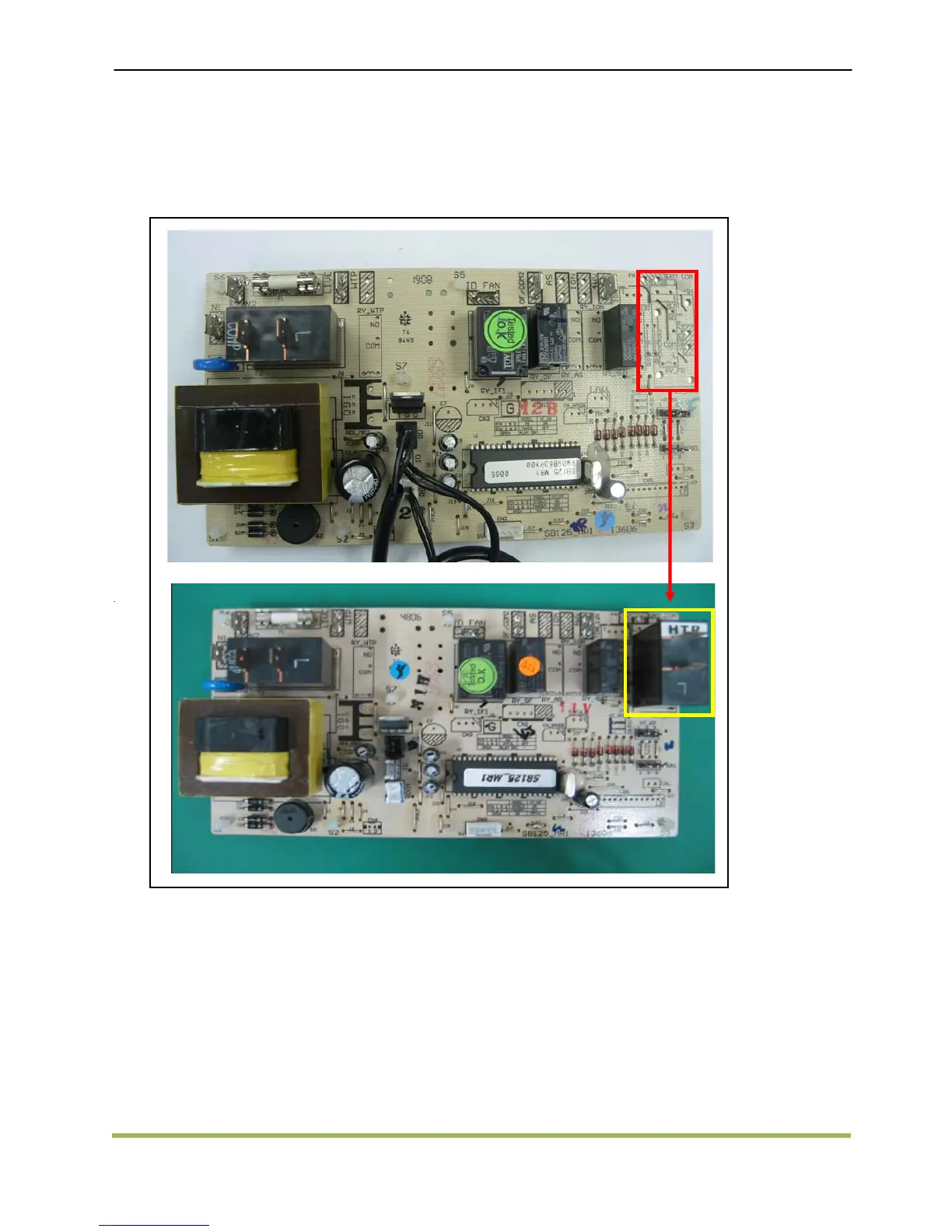

SB125 Heatpump with Auxiliary Heater
To convert SB125 heatpump PCB to auxiliary
heater application, onl
y need to add one heater
relay as shown below:
1.
Place the JM Re
lay (240V/20A) on the
RY_HTR location
2.
Solder all the relay pins.
Re
SB125 Heatpump with Auxiliary Heate
r
RY_HTR
34
36
Table of Contents
Table of Contents
2
Model Name
3
Product Name Description
3
CONVERSION TABLE 2.1 Conversion Table
4
Product Mainboard Vs Handset Matrix
5
Handset Operating Guide
7
Operation Guide
7
G11
9
G17
10
Gs01
11
Apj1
13
Slm3
15
Slm8
16
Sequential LCD
18
Operating Guide
18
Netware 3/3C
19
Rooftop Panel
20
Chiller Panel
22
Mc301
23
Mc303
25
Controller Setting
27
Auto Random Restart
27
Hot Keep Selection
27
Sequential Board (SQ2.0)
29
Chilled Water Fan Coil Unit - W1V3
31
Chilled Water Fan Coil Unit - W2.0
32
Hardware Setting - SLM8
33
Conversion Configuration
34
Auxiliary Heater Conversion
34
Multi Split Conversion
37
U1.5 L208A Conversion
38
WMF U1.4 to L2EF Conversion
39
SQ Board for Wiring up to 1000M Conversion
40
Room Sensor on Netware
42
Service Diagnosis
43
LED Lights Diagnosis Table
43
Error Codes Diagnosis by Handset
63
MDS Diagnosis
73
General Check
76
General Troubleshooting Guide
77
Appendix
78
Resistance - Temperature Characteristic
78
MDS Compatibility
81
MDS Outdoor Capacity Dip Switch Setting
82
Cable Length of Wired Handset
83
