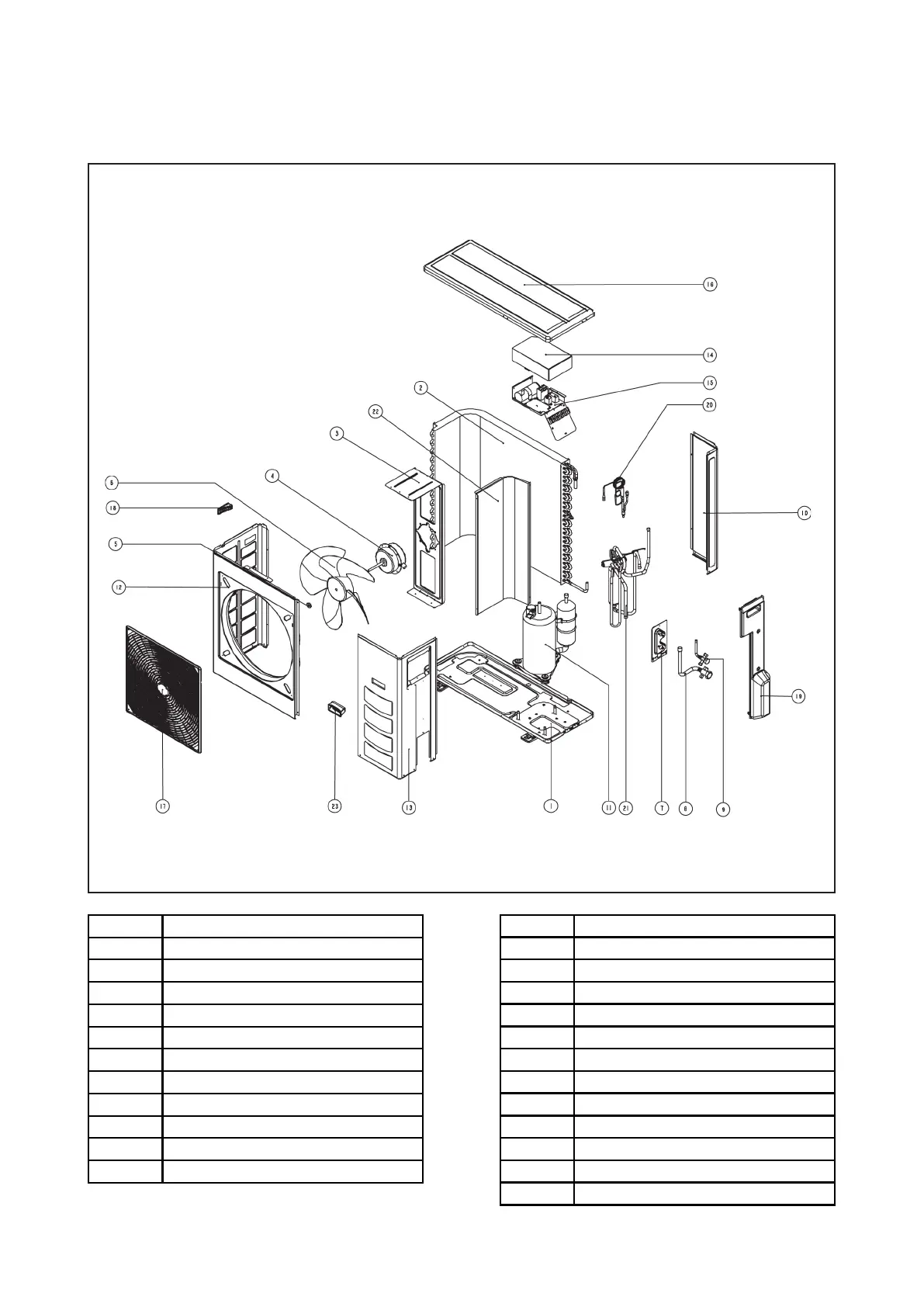

Model: M5LC / MLC 025CR
No. Description No. Description
1 Assy. Base Pan 12 Front Panel (Left)
2 Assy. Outdoor Coil 13 Service Panel
3 Motor Bracket 14 Terminal Cover Panel
4 Fan Motor 15 Assy. Terminal Panel
5 Nut, Fan Motor Hex Lock 16 Top Panel
6 Fan Blade 17 Front Grille
7 Valve Bracket 18 Handle
8 Assy., Flare Valve 3 Ways 5/8" 19 Assy. Valve Cover
9 Assy., Flare Valve 2 Ways 3/8" 20 Assy. Cap Tube
10 Back Panel (Right) 21 Assy. 4 Way Valve
11 Compressor 22 Assy. Partition
23 Handle (Front)
To Next Page
