1-4

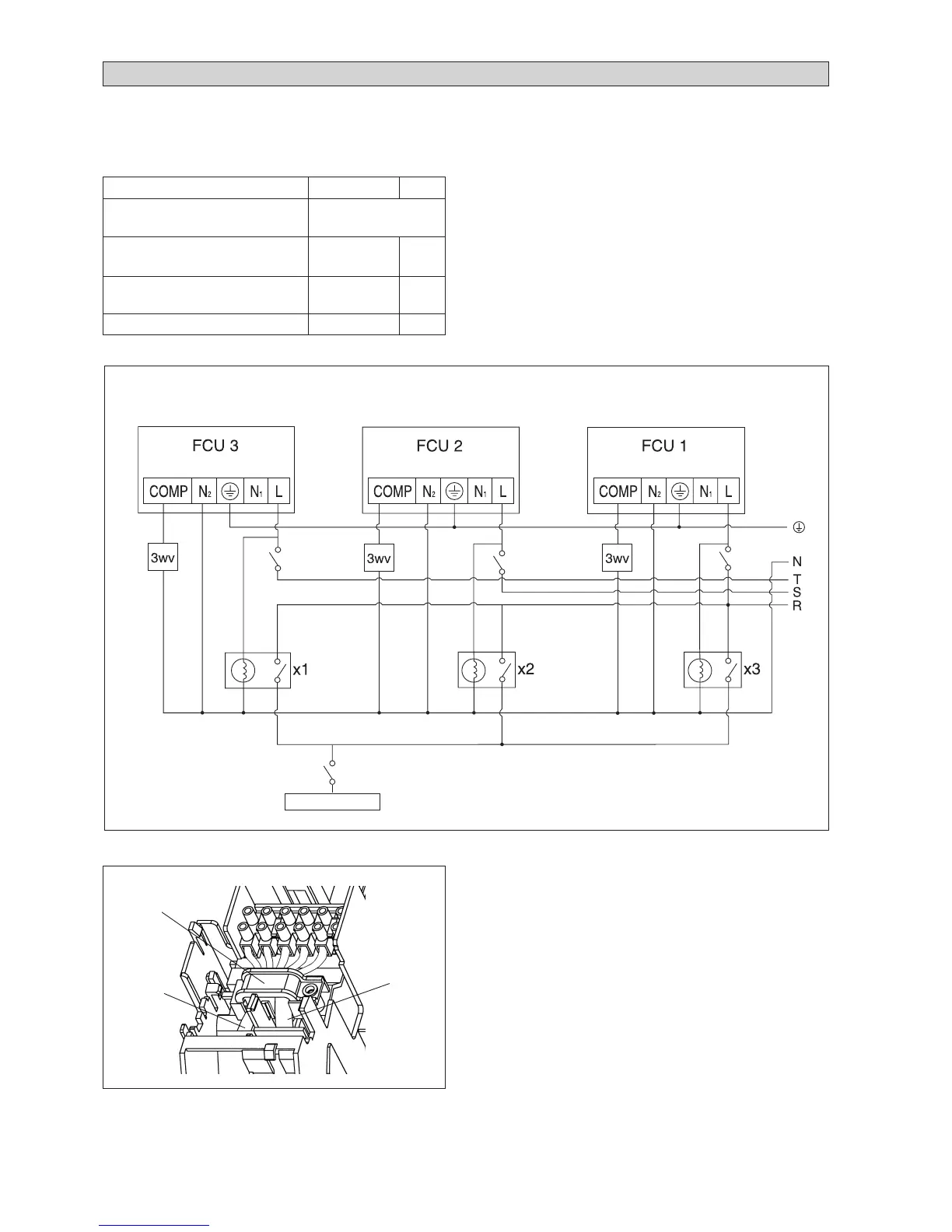

ELECTRICAL WIRING CONNECTION
• All wires must be firmly connected.
• All wires must not touch the water piping, or any
moving parts of the fan motor.
• The connecting wires between the indoor unit and the
outdoor unit must be clamped on the wire clamps
as shown in the figure.
• The power supply cord must be equivalent to H05RN-F
(245IEC57) which is the minimum requirement.
IMPORTANT : The figures shown in the table are for information purpose only. They should be checked and selected
to comply with the local/national codes of regulations. This is also subject to the type of installation and
conductors used.
Wire Clamp
Interconnection
Cable
Power Supply
Cable
WM 05 FW ~ 25 FW
Model 05 / 07 / 10 / 15 20 / 25
Voltage range 220V – 240V
1Ph / 50Hz +
!
Power supply cable size mm
2
1.5 2.5
Number of wire 33
Interconnection cable size mm
2
1.5 2.5
Number of wire 33
Recommended fuse A 15 20
Chiller
To Next Page
