McQuay MWM09J

14
MWM-J_(ii) Application Information

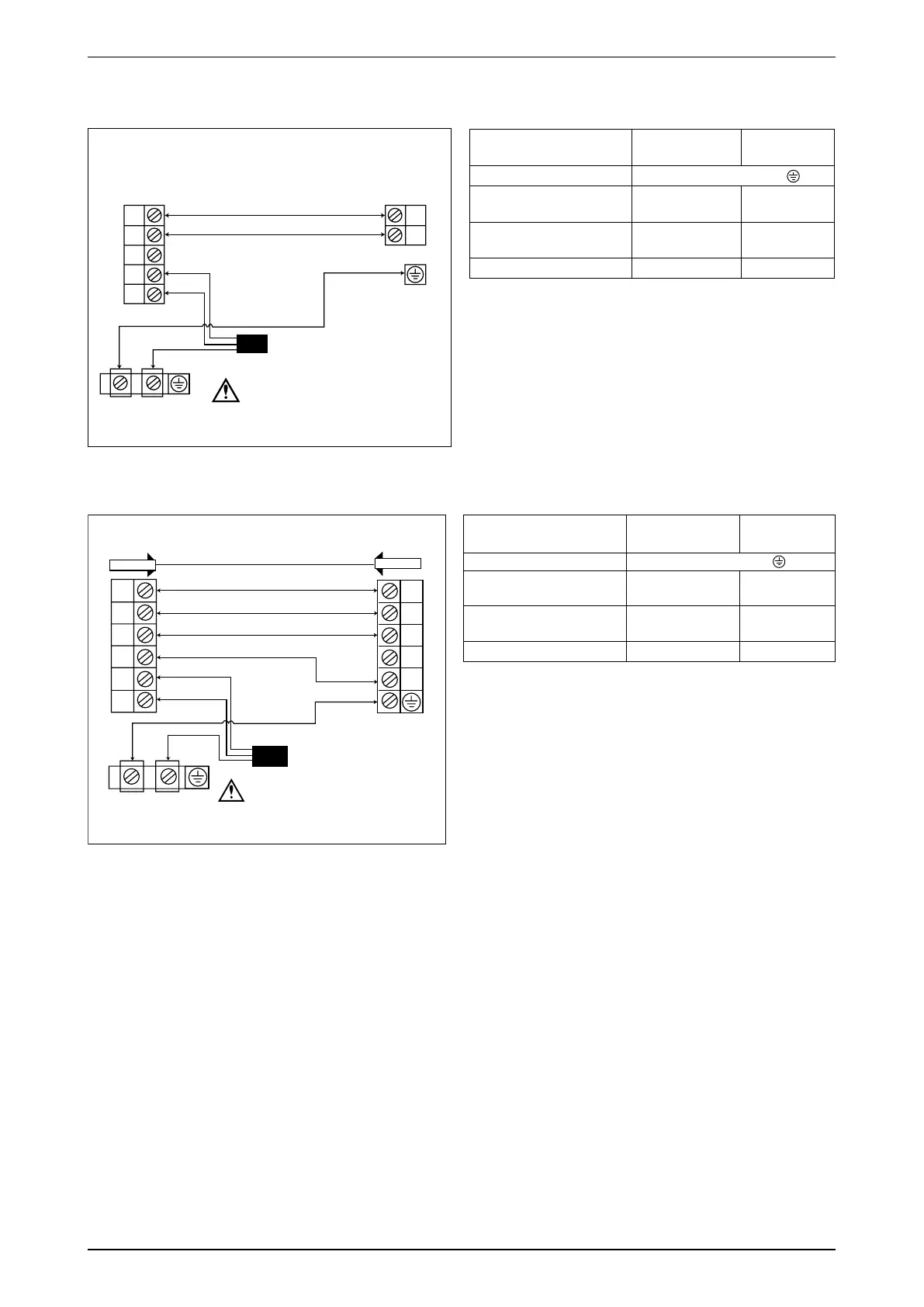

Cooling Unit (single phase)
COMP
N1
COMP
N
N
L
Outdoor Unit
Terminal Block
Indoor Unit
Terminal Block
There must be a double pole switch
with a minimum 3mm contact gap and
fuse/circuit breaker as recommended
in the fixed installation circuit.
Power Supply Cable
***
Outdoor coil sensor connection wire
(8m long) attached in the indoor unit
Model
Voltage range** 220V-240V/1Ph/50Hz +
Power supply cable size* mm
2
1.5 2.5
Number of wire 33
Interconnection cable size* mm
2
1.5 2.5
Number of wire 33
Recommended fuse A 15 20
M(5)WM20/25J
M(5)LC20/25C
M(5)WM09/10/15J
M(5)LC09/10/15C
Heat Pump Unit (single phase)
There must be a double pole switch
with a minimum 3mm contact gap and
fuse/circuit breaker as recommended in
the fixed installation circuit.
Outdoor Unit
Terminal Block
Indoor Unit
Terminal Block
Power Supply Cable
Outdoor coil sensor connection wire
(8m long) attached in the indoor unit
COMP
N1
OF
4WV
N
L
COMP
OF
4WV
N
Model
Voltage range** 220V-240V/1Ph/50Hz +
Power supply cable size* mm
2
1.5 2.5
Number of wire 33
Interconnection cable size* mm
2
1.5 2.5
Number of wire 33
Recommended fuse A 15 20
M(5)WM20/25JR
M(5)LC20/25CR
M(5)WM09/10/15JR
M(5)LC09/10/15CR
