McQuay MWM09J

84

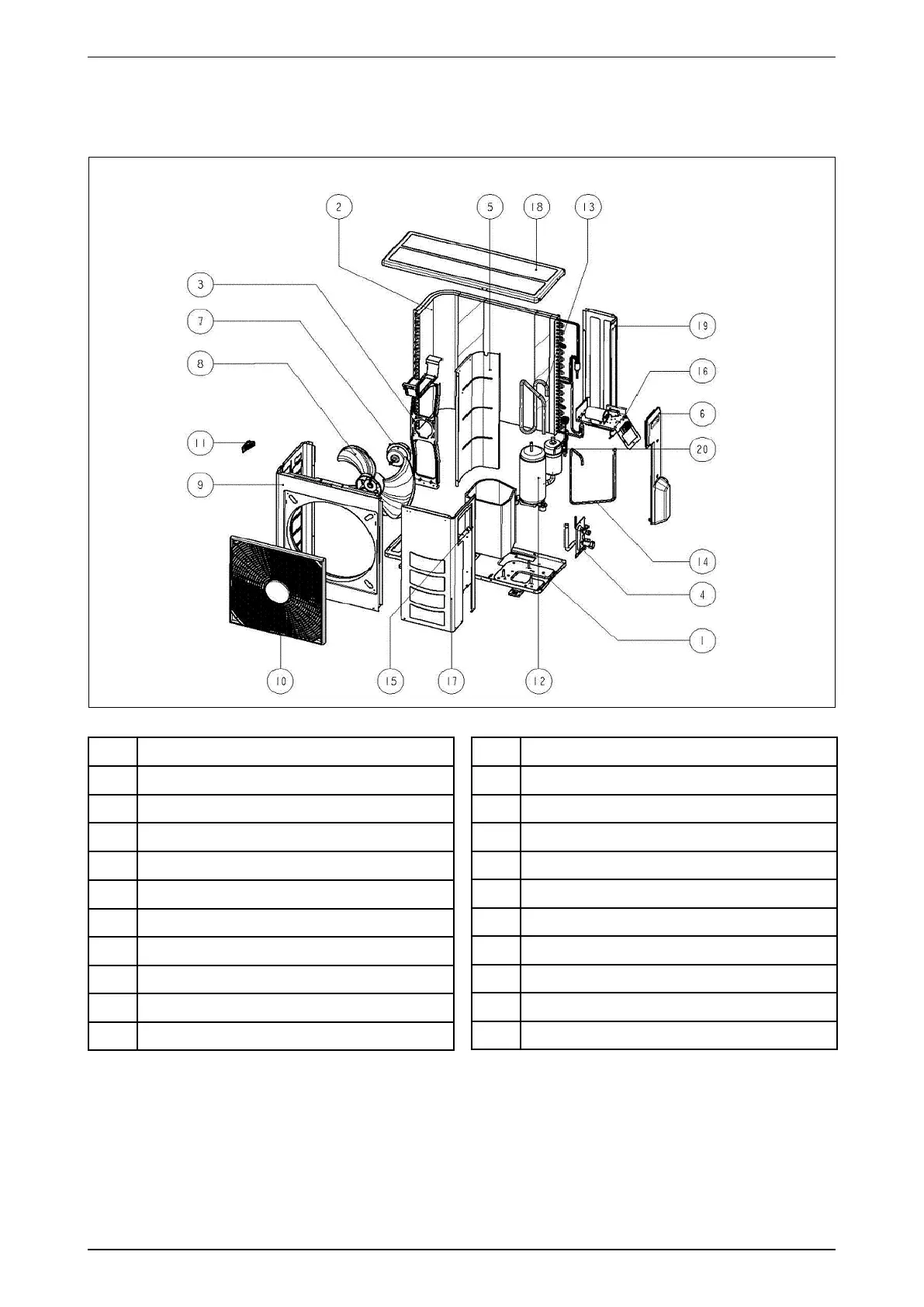

MWM-J_(ii) Exploded View & Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No Description
1 Assy. Base Pan
2 Assy. Outdoor Coil
3
Bracket, Motor
4 Assy. Valve Bracket
5 Panel, Partition
6 Assy. Valve Cover
7 Motor
8 Fan Propeller
9 Assy. Panel Front Left
10 Plastic Front Grille
No Description
11 Plastic, Handle
12 Assy. Compressor
13 Suction Tube
14 Discharge Tube
15 Compressor Felt
16 Assy. Control Box
17 Service Panel
18 Assy. Panel Top
19 Panel, Right Back
20 Assy, Capillary Tube
OUTDOOR UNIT
MODEL: M5LC25CJ
