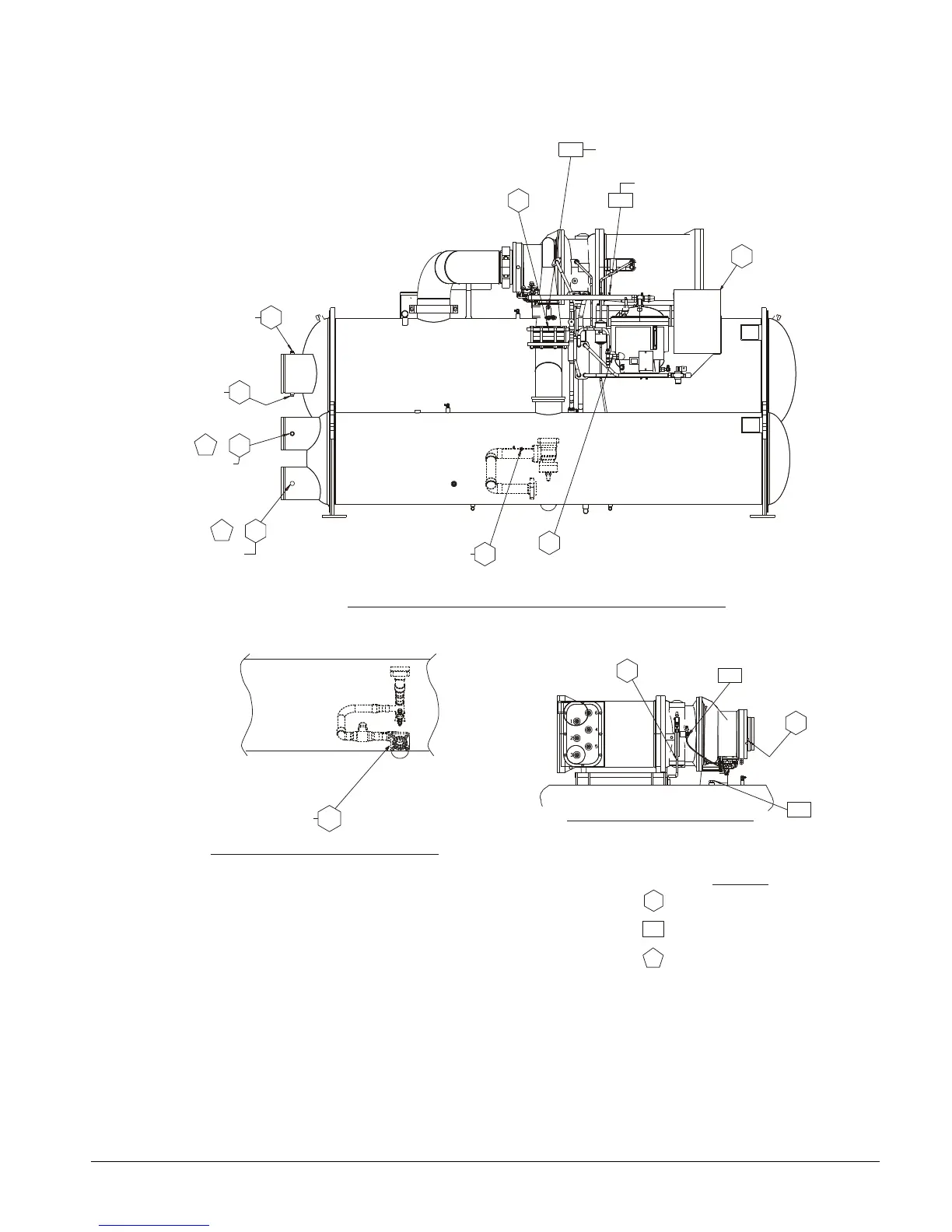

Figure 16, Unit Electrical and Sensor Locations
Note: See Figure 17 for reference detail drawings.
R3313115
CS10
US04
CS05
US05
CS04
CS09
CS02
CS03
&
&
EVAPORATOR
STANDARD PRESSURE TRANSDUCER
STANDARD TEMPERATURE SENSOR
OPTIONAL TEMPERATURE SENSOR
SEE DETAIL A
SEE DETAIL C
SEE DETAIL E
SEE DETAIL D
SEE DETAIL D
SEE DETAIL D
SEE DETAIL F
CS01
US02
US10
US09 US03
CS07
CS06
CS08
FRONT VIEW AT COMPRESSOR
FIELD
OPTION
US05
SEE DETAIL E
EVAPORATOR
WITH ELECTRONIC EXPANSION VALVE
REAR VIEW SHOWN WITH PILOT OPERATED EXPANSION VALVE
LEGEND
SEE DETAIL B
SEE
DETAIL D
