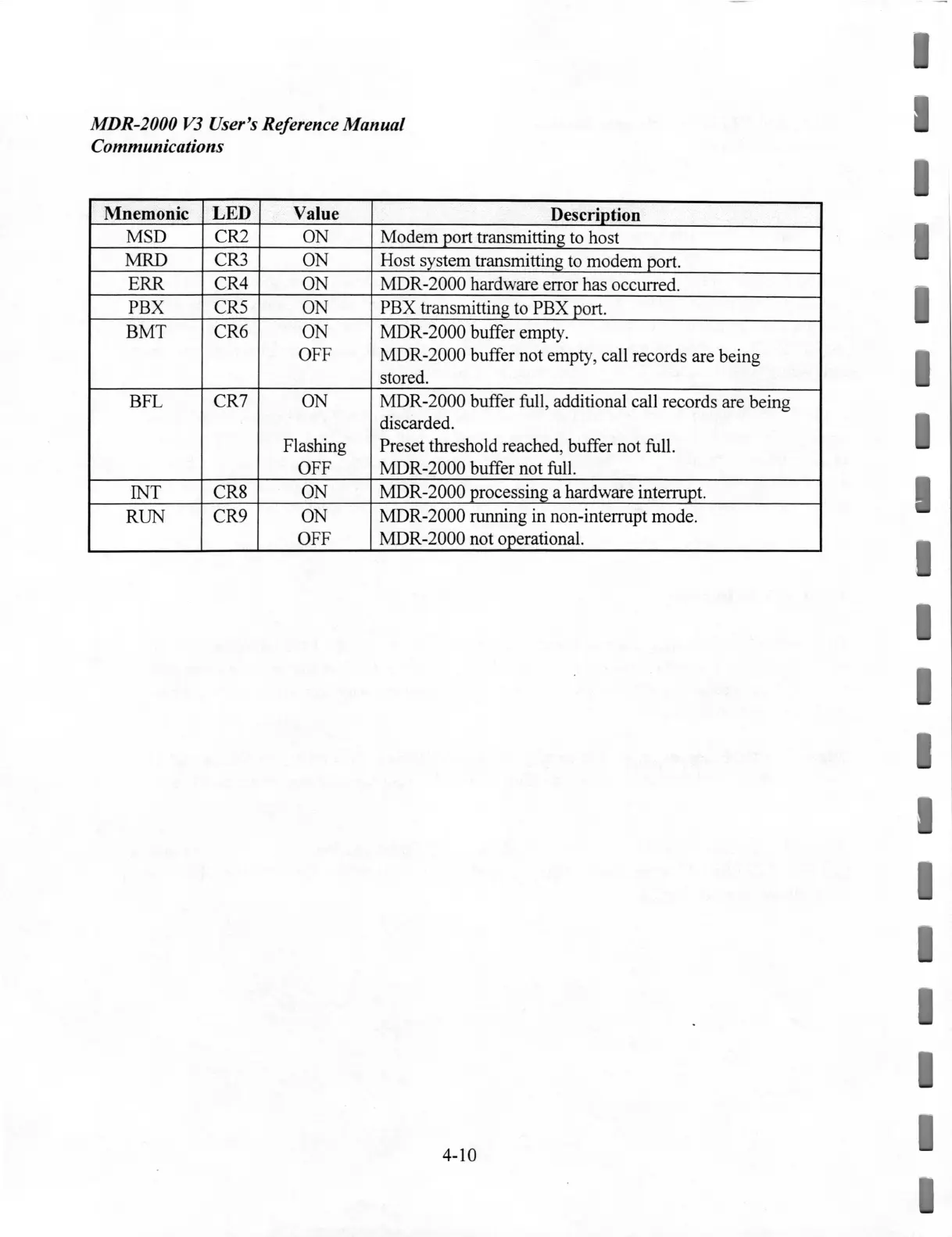

MDR-2000 VJ User's Reference Manual
Communications
Mnemonic
LED
Value
Description
MSD
CR2
ON Modem port transmitting to host
MRD
CR3
ON Host system transmitting to modem port.
ERR
CR4
ON
MDR-2000 hardware error has occurred.
PBX
CR5
ON PBX transmitting to PBX port.
BMT
CR6
ON MDR-2000 buffer empty.
OFF
MDR-2000 buffer not empty, call records are being
stored.
BFL
CR7 ON MDR-2000 buffer full, additional call records are being
discarded.
Flashing
Preset threshold reached, buffer not full.
OFF
MDR-2000 buffer not full.
INT
CR8 ON
MDR-2000 processing a hardware interrupt.
RUN
CR9
ON
MDR-2000 running in non-interrupt mode.
OFF
MDR-2000 not operational.
