STEP TWO: HANDLEBAR AND FRONT
COLUMN ASSEMBLY

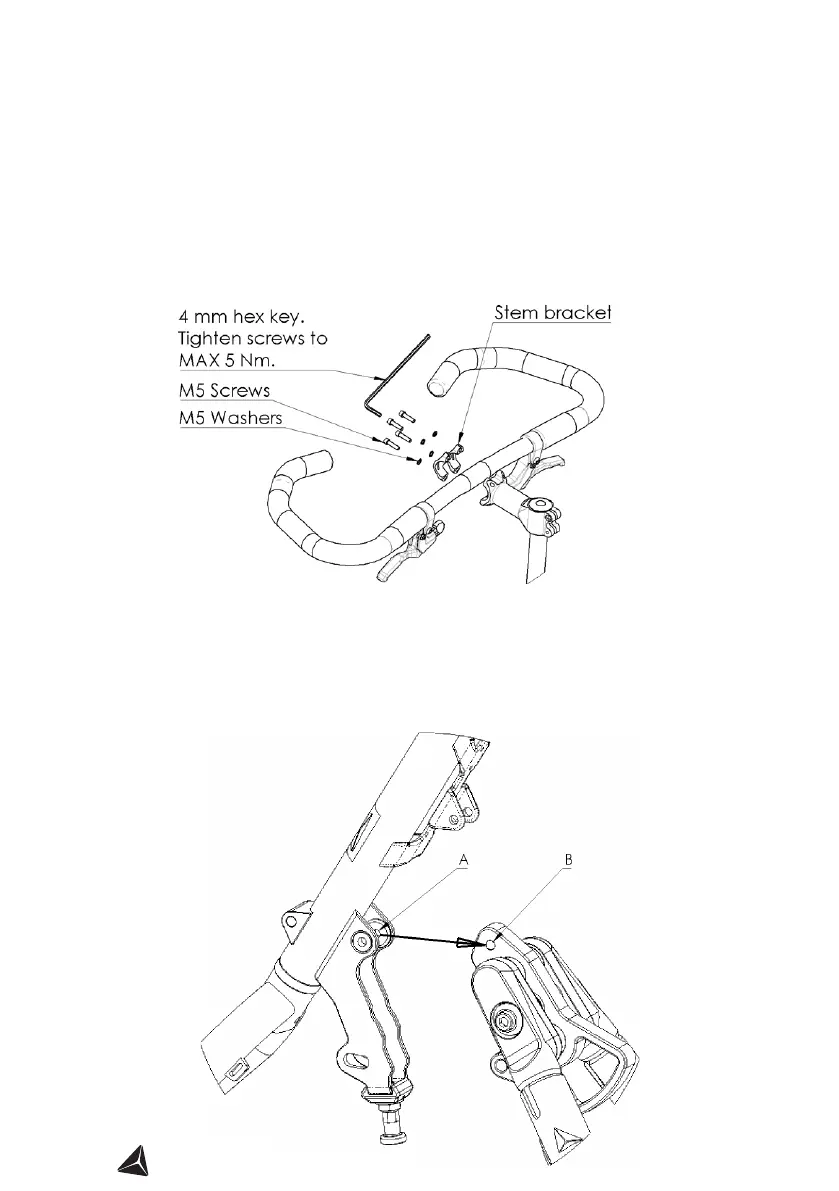

1. Mount the handlebars. Place the handlebar in the stem. Place the stem bracket in
the center and then insert the four M5 screws with the washers through the bracket into
the stem. Tighten the screws using the 4mm hex key to maximum 5Nm. Your handlebar
may already be preassembled.
STEP THREE: CONNECTING THE FRONT
AND REAR FRAME
1. Connecting the front column to the frame. Align hole A in the front column ange
with hole B in the center block.
