17
ME-MOVER.COM

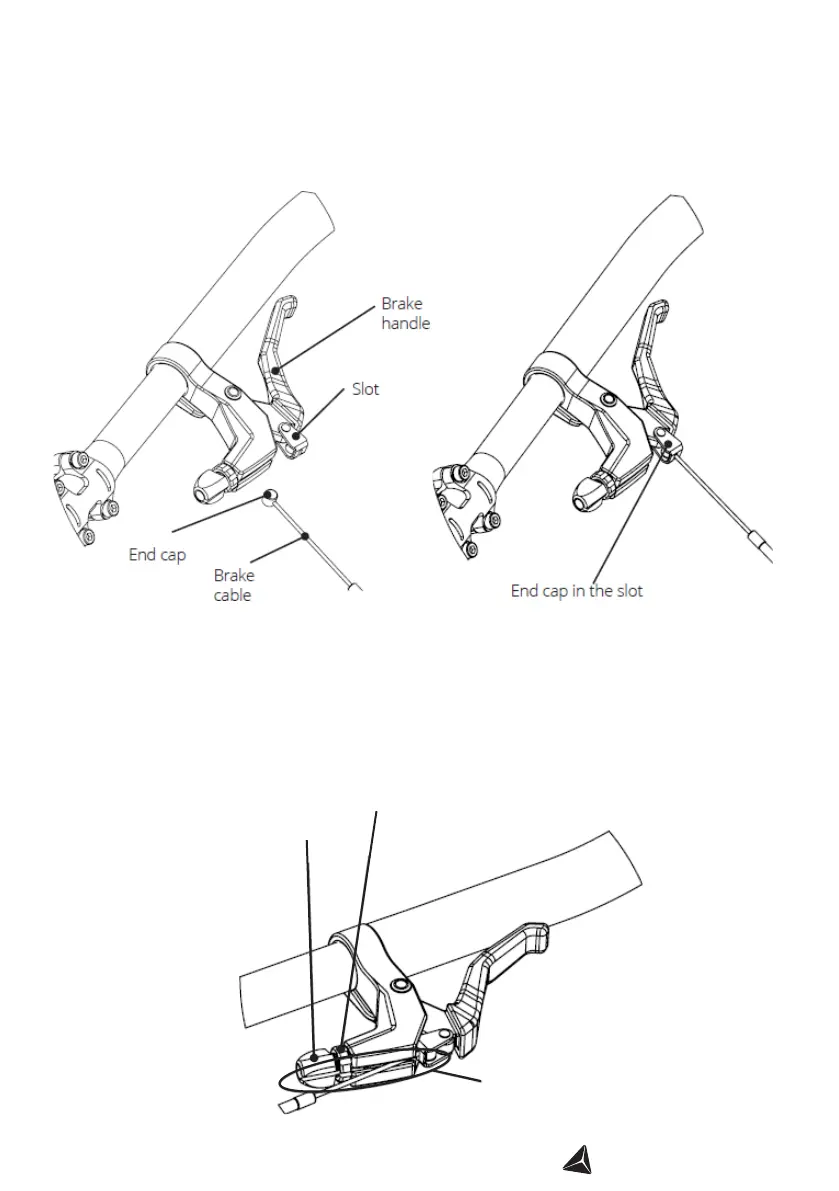

3. Connect the brake cables with the brake levers. Pull the brake handle and insert
the end cap into the slot in the brake handle.
4. Align the lock nut and adjustment screw and slide the cable into the groove. If
necessary, pull the brake cable housing so more cable is exposed. Screw the lock nut and
adjustment screw tight.
NOTE: Please take note of which cable operates the front and the rear brake when doing
this step. There may be local laws regulating how your brakes need to function.
Lock nut
Adjustment
screw
Groove
