Assembly Instructions
For Model 1000 Series Transplanters

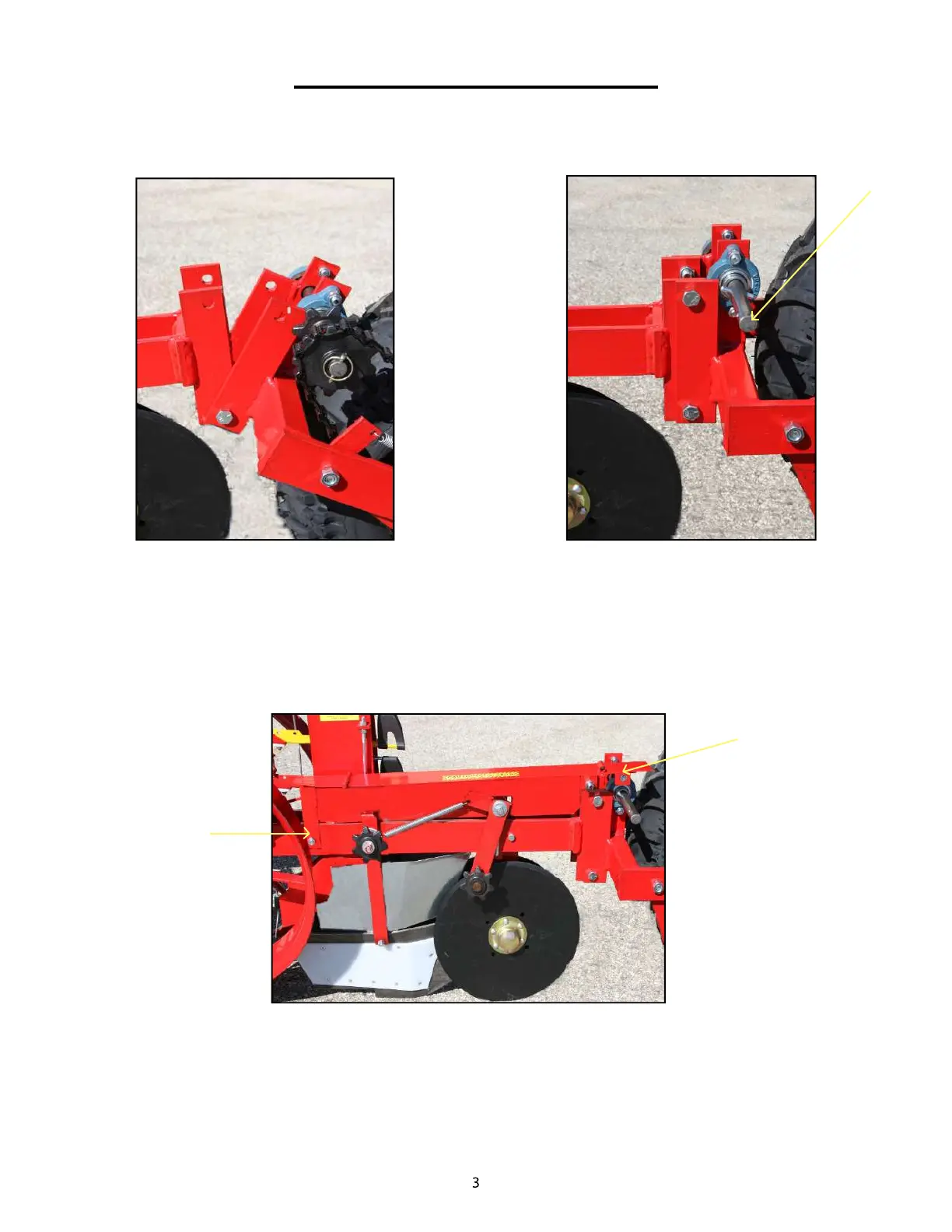

3. Install the inside chain guard of the unit. Fasten front short tab to the top bolt on fl ange bearing
from #2 photo with hex nut. The long tab attaches to the empty hole on the transplanter frame
by the packing wheels. The guard must fi t between the shoe brace and the guide adjustment
bolt. Use the 3/8 x 1" bolt and a 3/8" hex nut to secure.
2. Remove the following parts from the
direct drive wheel jackshaft: Clip pin,
drive chain coming from the wheel,
outside sprocket on jackshaft, and
pipe spacer. Then remove the extra
top hex nut located on the fl ange
bearing.
1. Bolt on the Direct Drive Float
Wheel using the four 1/2 x 1-1/2 "
bolts. Secure using the 1/2" hex
nuts.
