10 MEDLINE | MDS808200F3R | GPI109 (Rev: 04-13-16) 1-800-MEDLINE (633-5463) | medline.com 11

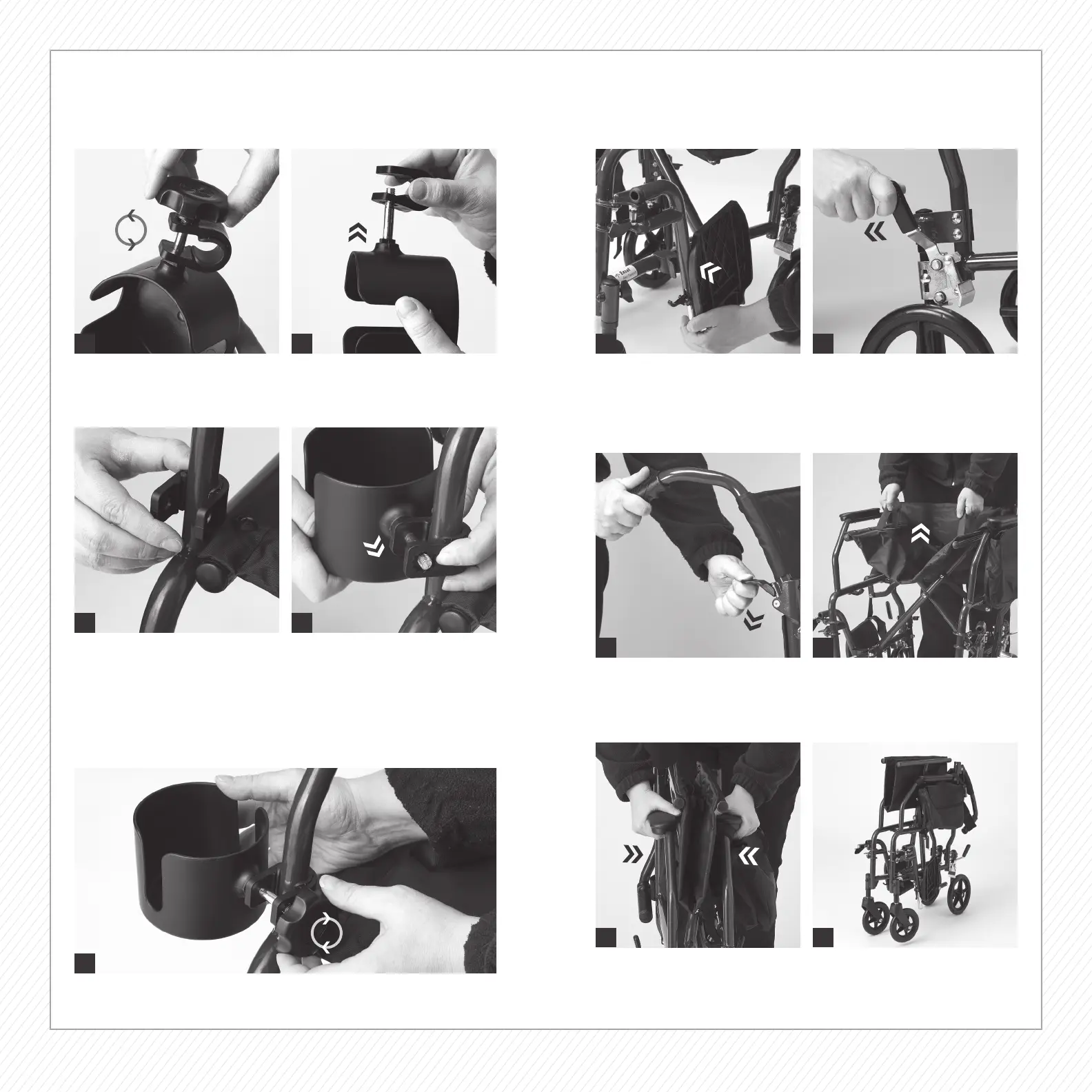

Install Cup Holder
Unscrew the black plastic knob
from the cup by turning it
counterclockwise. Set aside.
Place the clip approximately
0.25” (0.6 cm) higher than the base
of the chair arm. With the screw
holes facing away from the chair,
push the clip forward until it snaps
into place.
Reattach the black plastic knob to the end of the screw and rotate
clockwise to secure the holder to the chair.
Remove the clip.
Insert the cup screw through the
pre-drilled holes.
1
3
5 6
2
4
Close and Fold
Fold the footrest plates up to a
vertical position, pull them back,
and snap them into the Stow-N-Go
holders on the side of the chair.
Turn the front wheels back.
Unlock the back wheels.
Using both hands, grasp the
two fabric handles on the seat
upholstery and pull up.
Find the black release tabs on each
side of the chair back canes and pull
down. The seat back will collapse.
Now grasp the arms of the
chair and push inward until
it collapses further.
Chair folds down for easy storage
and transport.
1
3
5
2
4
OUT
IN
