12
Your Mega-Catch Mosquito Trap comes with an External Skirt which fulfils two important
functions. First its color and texture provides a visual attractant for several species of mosquitoes.
Secondly, it acts as a baffle directing the air plume out of the bottom of the Trap.
There are two methods which you can use to fit the Skirt:
Method One:
1. Place the Mega-Catch Mosquito Trap on a table or other flat surface.
2. Slide the Skirt on from the top of the Trap (over 2 corners initially) with the elastic band
at the top.
3. The Skirt is properly fitted when the elastic band is seated over the lower horizontal rib,
just below the inlet holes (see figure 5). The opening in the Skirt should be located at the
front of the Trap so as to facilitate removal of the Door without having to remove the
Skirt. The hook-and-loop fastening on this opening should be closed when the Trap is
running.

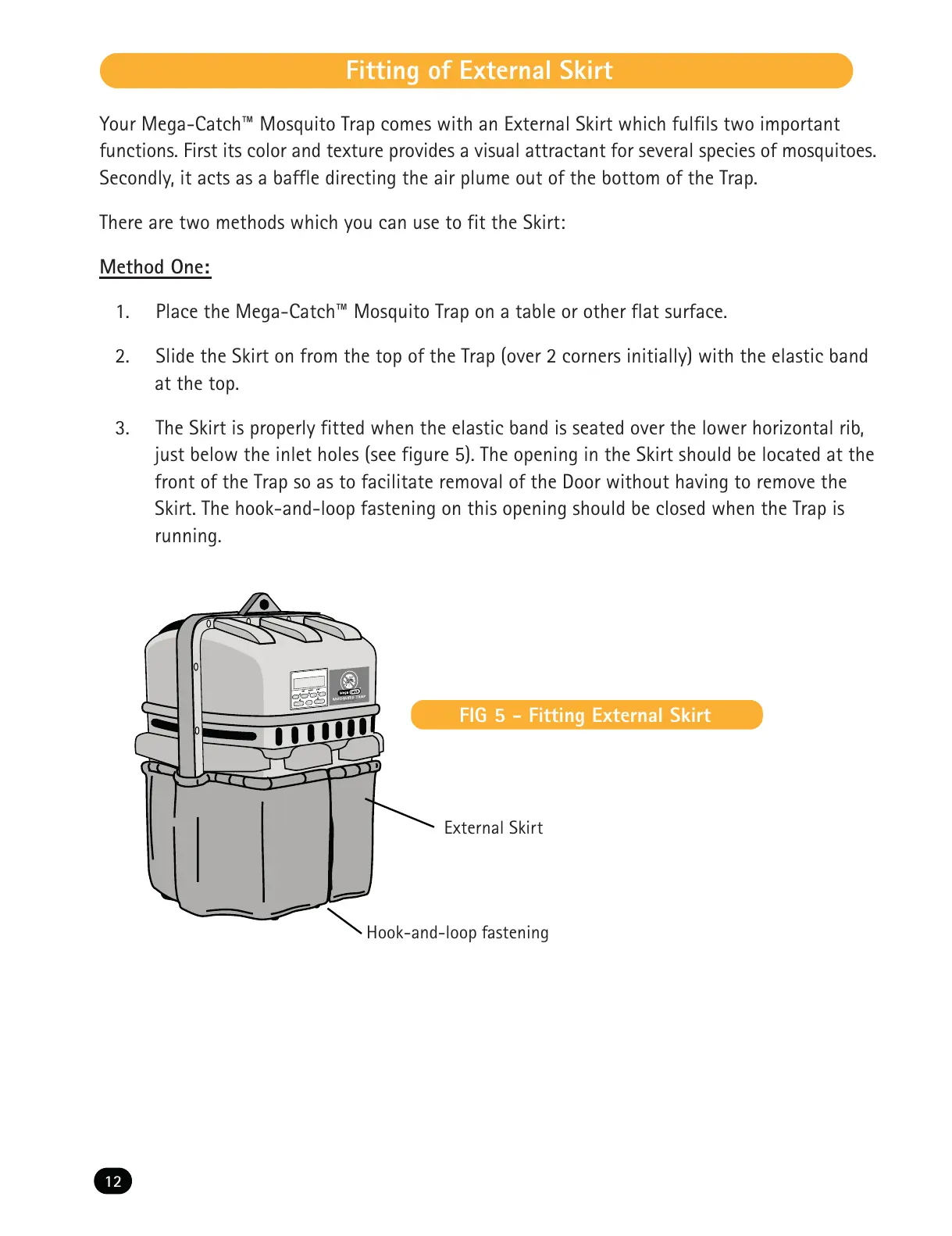

Fitting of External Skirt
U.S. Design Patent No 449,091
Hook-and-loop fastening
External Skirt
FIG 5 - Fitting External Skirt
