25

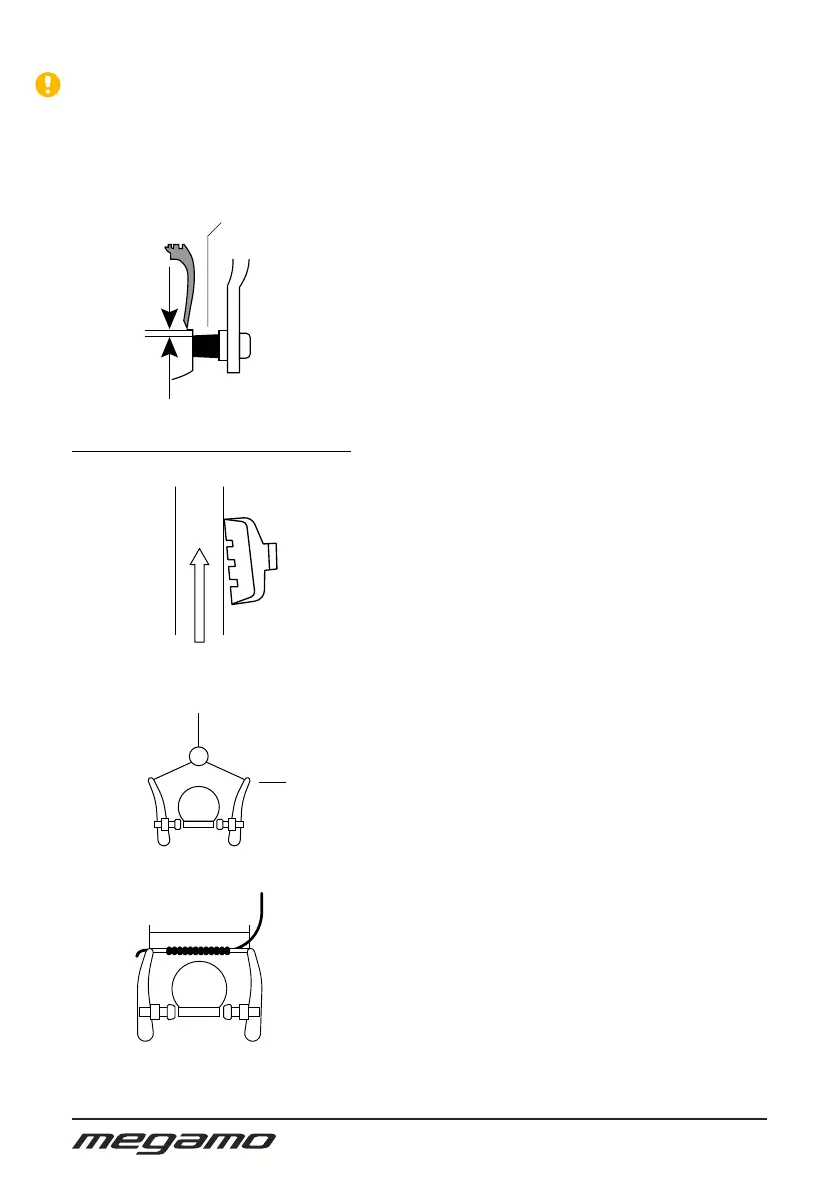

The vertical adjustment of the brake shoe must be such that the edge of the
rim is 1 mm above the end of the shoe. The shoe must contact the rim perfectly
perpendicular to the braking surface.
1 mm
20 mm or more Flexible tube
39 mm or more
1
2
Brake pad
Rim
Direction of rotation
Cable
clamp
bolt
Brake pad
The shoe must be slightly inclined in the
direction of rotation of the wheel. Other-
wise, braking will be poor and annoying
noises will be produced when the brakes
are applied (image 1).
Check the brake cables monthly for kinks,
rust, broken wires, and frayed ends, and
check the casings for any bent edges, cuts,
or frays. Replace any component that fails
the check.
In Cantilever type brakes, there must be a
distance of 20mm between the guide pulley
and the set of adjuster sleeve stop (image
2).
In V-Brake type brakes, if your shoes have
the possibility of regulating the distance
perpendicular to the braking track, make
sure that dimension A is equal to or greater
than 39mm, as indicated in the third gure.
Every 3 months, tighten the bolts on the
brake levers and shoes.
Brake lever clamp: 6-8Nm
Every 3 months, tighten the bolts on the
Cantilever, V-Brake and Horseshoe type
brakes.
Pad xing: 8-10Nm
Brake xing: 8-10Nm
Brake cable xing: 6-8Nm
