MEGAMO RAISE - Front and Rear Derailleur Adjustment

32
TYRE PRESSURE
For correct operation of the bicycle, it is necessary to use a tyre pressure in
accordance with the type of use and the weight of the user. Check the tyre
pressure regularly.
FRONT DERAILLEUR AND REAR DERAILLEUR ADJUSTMENT
In order to keep the gearbox in perfect condition, it is necessary to regulate it
periodically according to the following instructions.
.
A Position the chain, derailleur and front derailleur so that the chain is po-
sitioned on the small front chainring and the largest sprocket and adjust the
screw (1) in gure 2 until the chain is as close as possible to the inside of the
inside of the derailleur without rubbing, turning the cranks.
B Place the chain, derailleur and front derailleur in position so that the chain
is positioned on the large front chainring and the smallest sprocket, adjust the
screw (2) in gure 3 until the chain is as close as possible to the outside of the
inside of the derailleur without rubbing while turning the cranks.

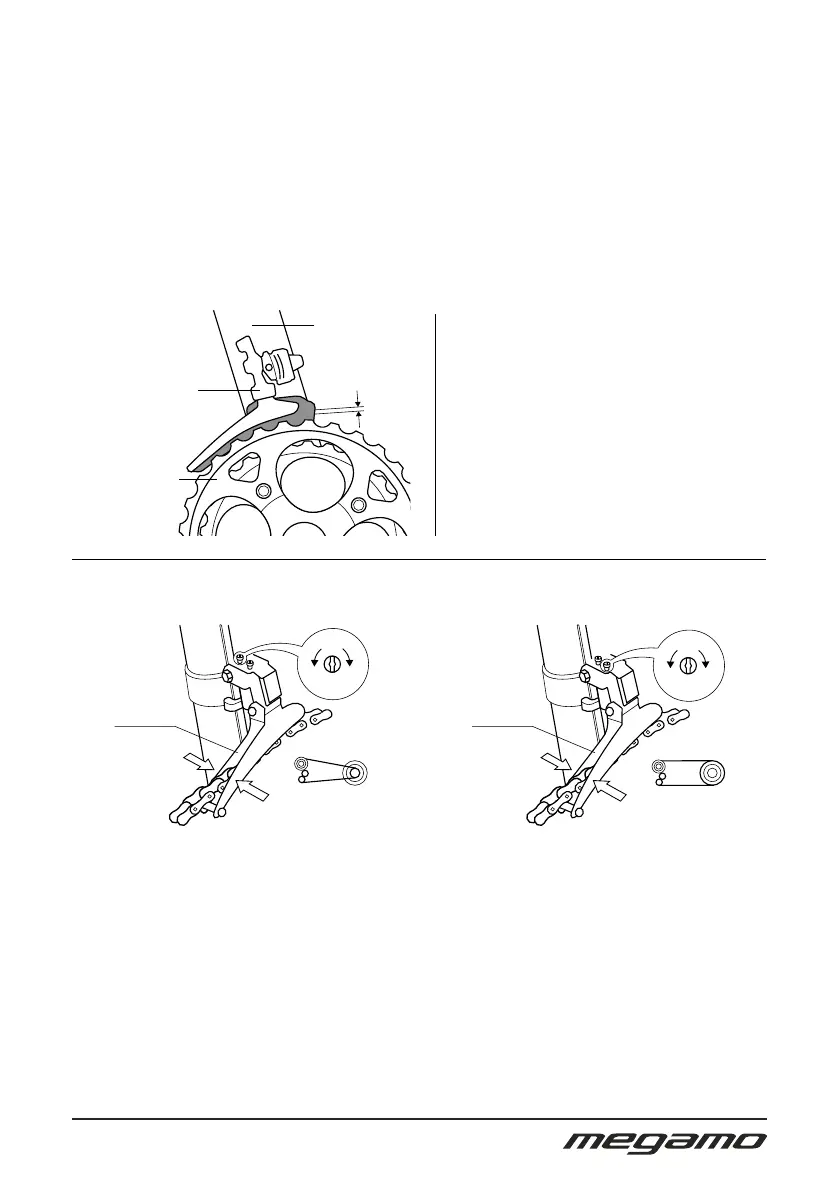

1 Check that there is 1-2 mm
between the front derailleur and
the large chainring.
2 Derailleur travel adjustment:
it has 2 adjustment screws that
limit the outer and inner travel.
B
A
B
A
B A
B A
Figure 2 Figure 3
Figure 1
Seat tube
Derailleur
Large chainring
Inside of the
derailleur
Inside of the
derailleur
Adjusting screw of
the outer stop
1
Adjusting screw of
the inner stop 2
1-2 mm
