Wire cross-section
requirements
Matching terminal and heat
shrinkable tube
H1.5/14 pre-insulated tubular
terminal, or wire soldering
H2.0/14 pre-insulated tubular
terminal, or wire soldering
H1.5/14 pre-insulated tubular
terminal, or wire soldering
H1.5/14 pre-insulated tubular
terminal, or wire soldering

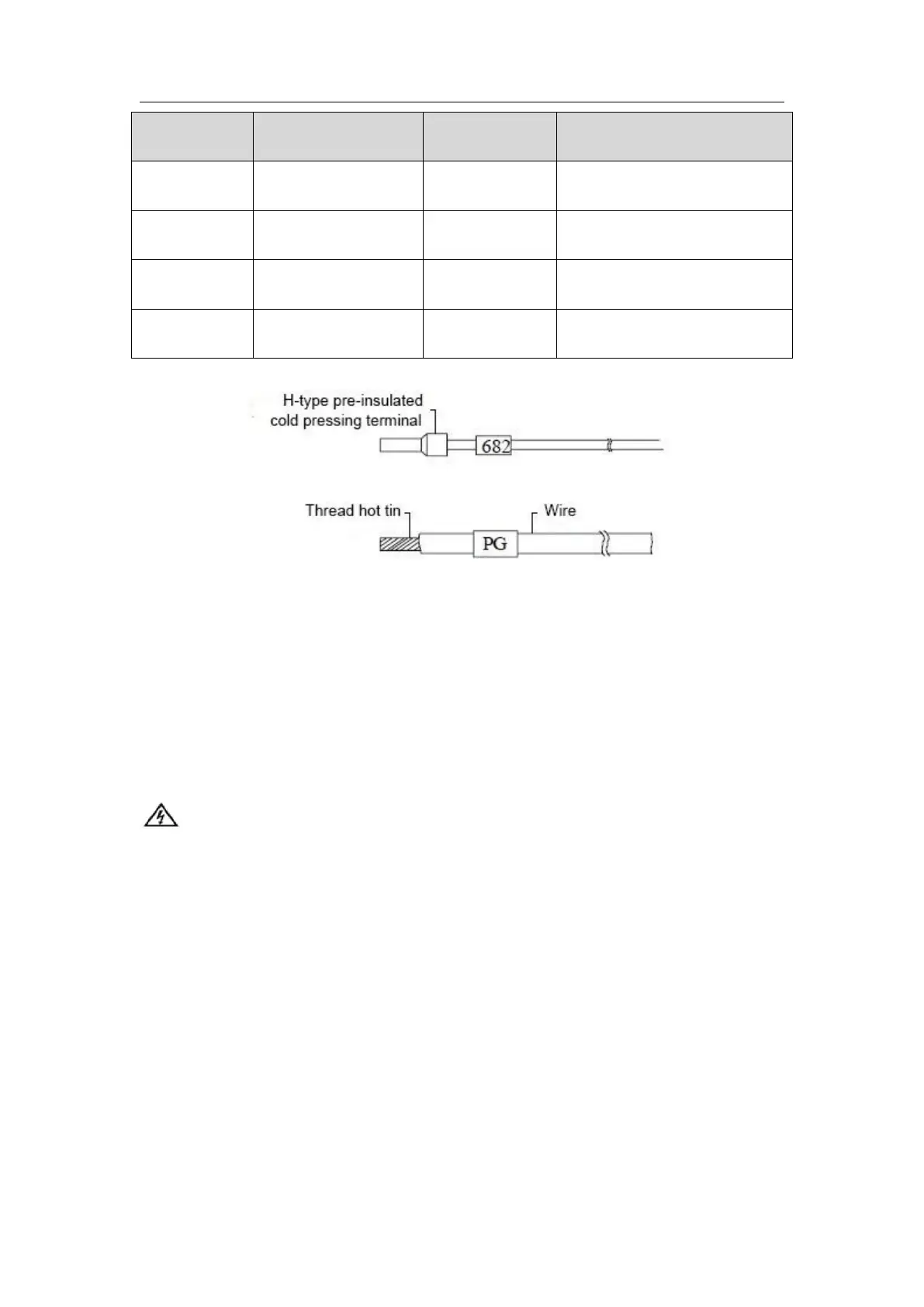

The recommended cable preparation method is shown in figure 2-5.
Figure 2-5 MTC connection cable preparation method recommended
Fix the finished cable end on the MTC terminal with screws. Pay attention to the correct position of the
screws. The tightening torque of the screws is between 0.5 and 0.8Nm, ensuring reliable connection
without damaging the screws.
2.2.4 Connect power cable
The power supply can use the 24Vdc power output from the main module, or other power supply that
meets the requirements. The user shall connect the power cord to the power supply input terminal head
in case of power failure, and then insert the terminal head into the DC24V power supply input terminal of
MTC.
danger
1．The power supply of MTC is 24Vdc. Be sure to check and confirm before wiring and energizing
to avoid equipment damage and other losses caused by misuse.
2 ． Do not connect and disassemble the cables live to avoid electric shock and equipment
damage.
3．When inserting the power supply input terminal and other signal lines into MTC, the installation
must be reliable to avoid electric shock accident, equipment damage and abnormal operation
caused by terminal shedding
2.2.5 Connect input/output signal wire
When wiring the system, there are often multiple cable ends connected to the same terminal, such as
24V+, 24V-, output group common terminal COM and other wiring. It is suggested to extend the
connection by means of extension wiring, and the corresponding identification can make the connection
convenient and reliable and the wiring concise.
2.2.6 Connect communication cable
