35
the interface.
(2) in the pop-up shortcut menu, select the modification information and enter the following interface.

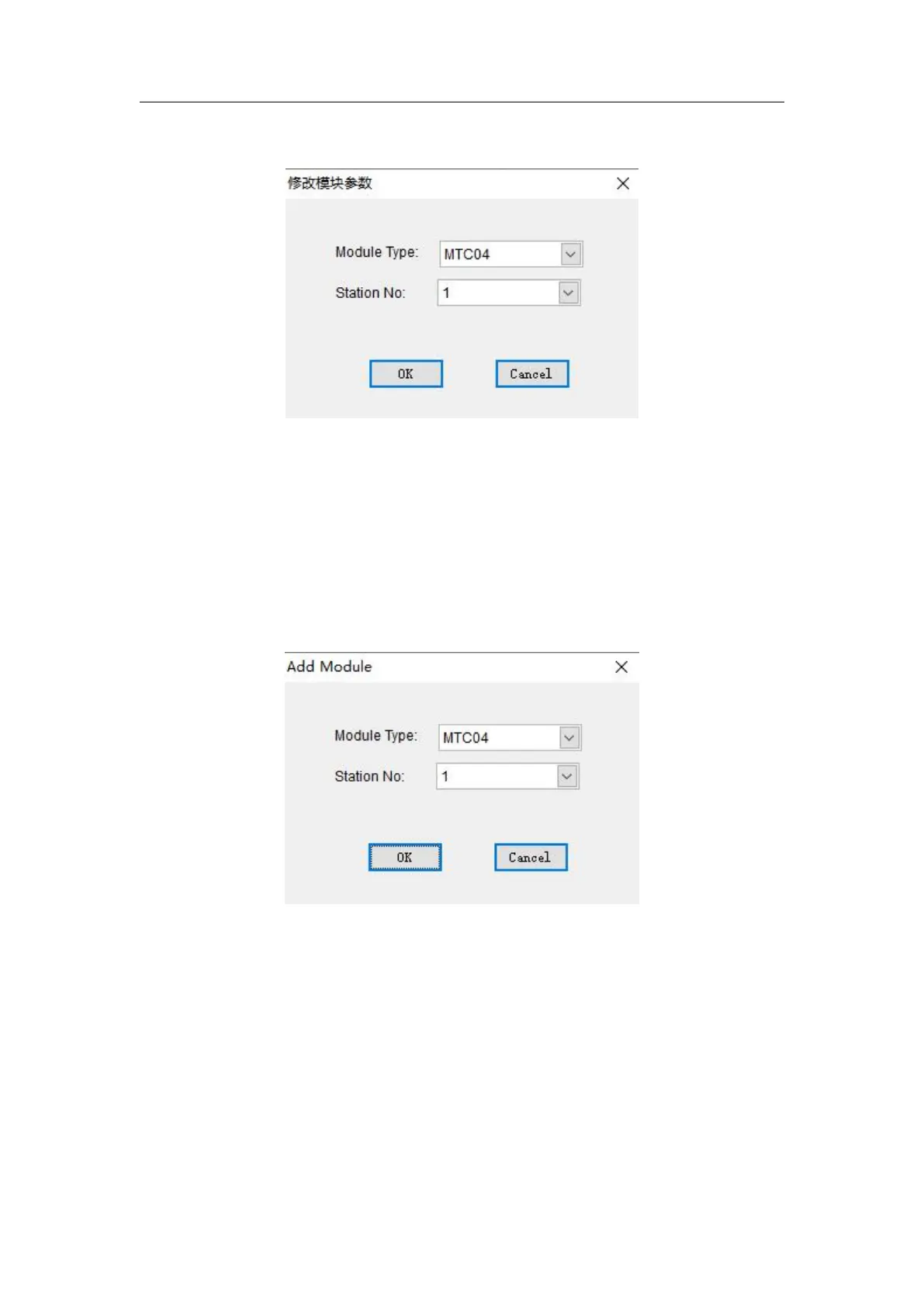

Figure 4-2 modify module parameters
2. When the system is configured with multiple MTC thermostats.
At this point, the user needs to configure the module type and station number. The specific operation
steps are as follows.
(1) Perform the configuration operation "when the system is configured with a single MTC" and modify
the module type of site 1 to "MTC04".
(3) In the MTC wizard setup interface (see figure 4-1), right-click the module configuration of the structure
tree on the left side of the interface.
(4)In the shortcut menu that pops up, select add module and enter the following interface.
Figure 4-3 Add module
(5) Repeat steps 2 ~ 3 according to the actual number of MTC configured, until all MTC are assigned the
corresponding station number. That is, if there are N MTC, there are 1 ~ N sites under the module
configuration item of the structure tree on the left side of the MTC wizard setup interface.
(6) end of configuration.
Note: if the wrong site is added, the user can remove it by right-clicking on the site in the
structure tree and selecting the delete module from the shortcut menu that pops up.
4.2 function description of MTC wizard
4.2.1 configuration parameters
