THE MELGES 14 : STEP 5

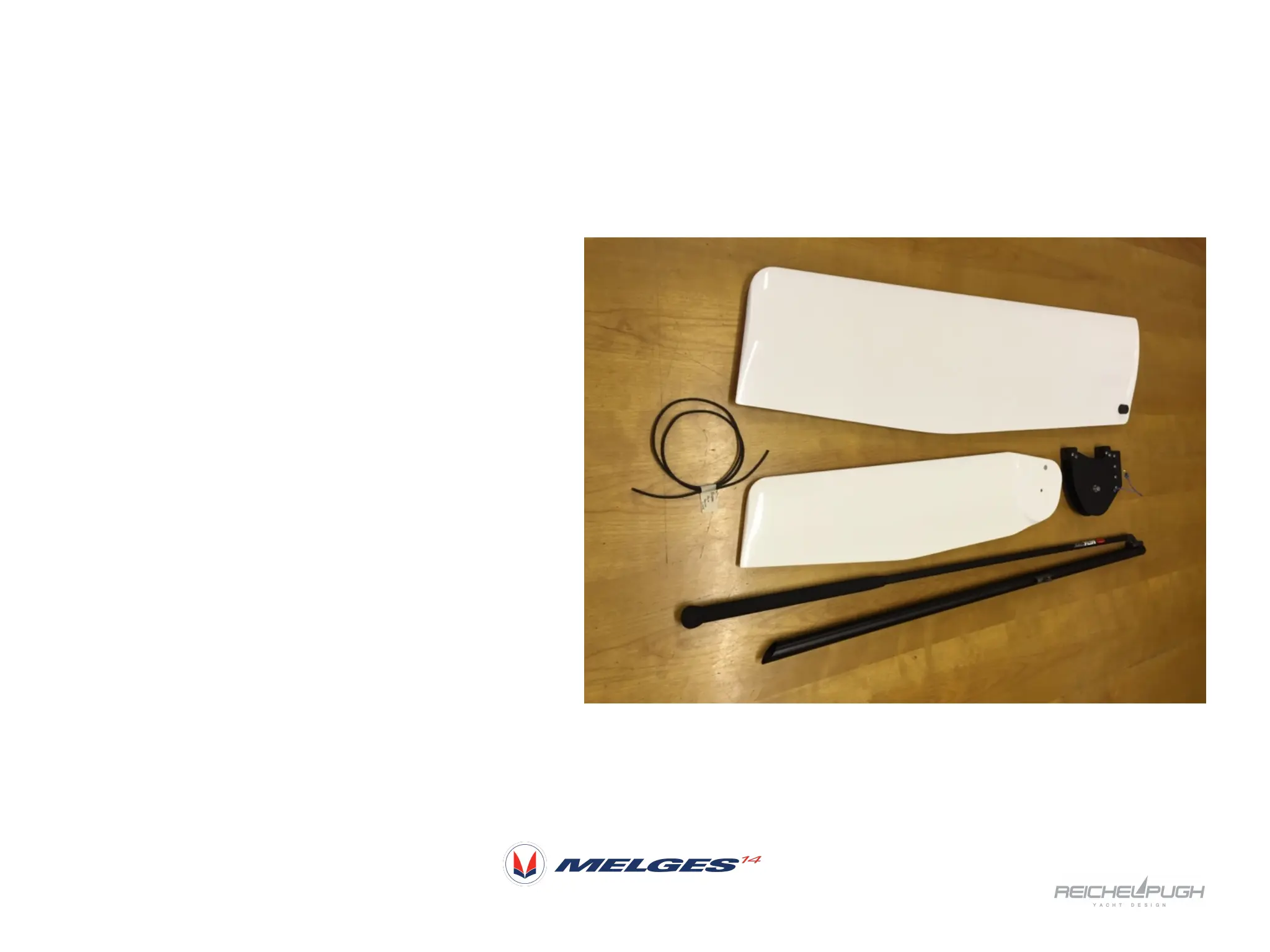

ASSEMBLE THE RUDDER HEAD AND RUDDER
•
Tie a knot in the end of the rudder hold down line,
4mm X 1220mm black line. Feed through the counterbored
hole on the side of the rudder and lead out the front side.
•
Remove the pivot bolt from the rudder head and feed
the line through and above the top gudgeon block.
•
Slide the rudder in the head and insert the pivot bolt.
•
Tighten with 1/2” wrenches so that the head is snug
on the rudder.
