Melges 14 - Step 3: Assemble the Boom Vang

THE MELGES 14 : STEP 3
ASSEMBLE THE BOOM VANG
•

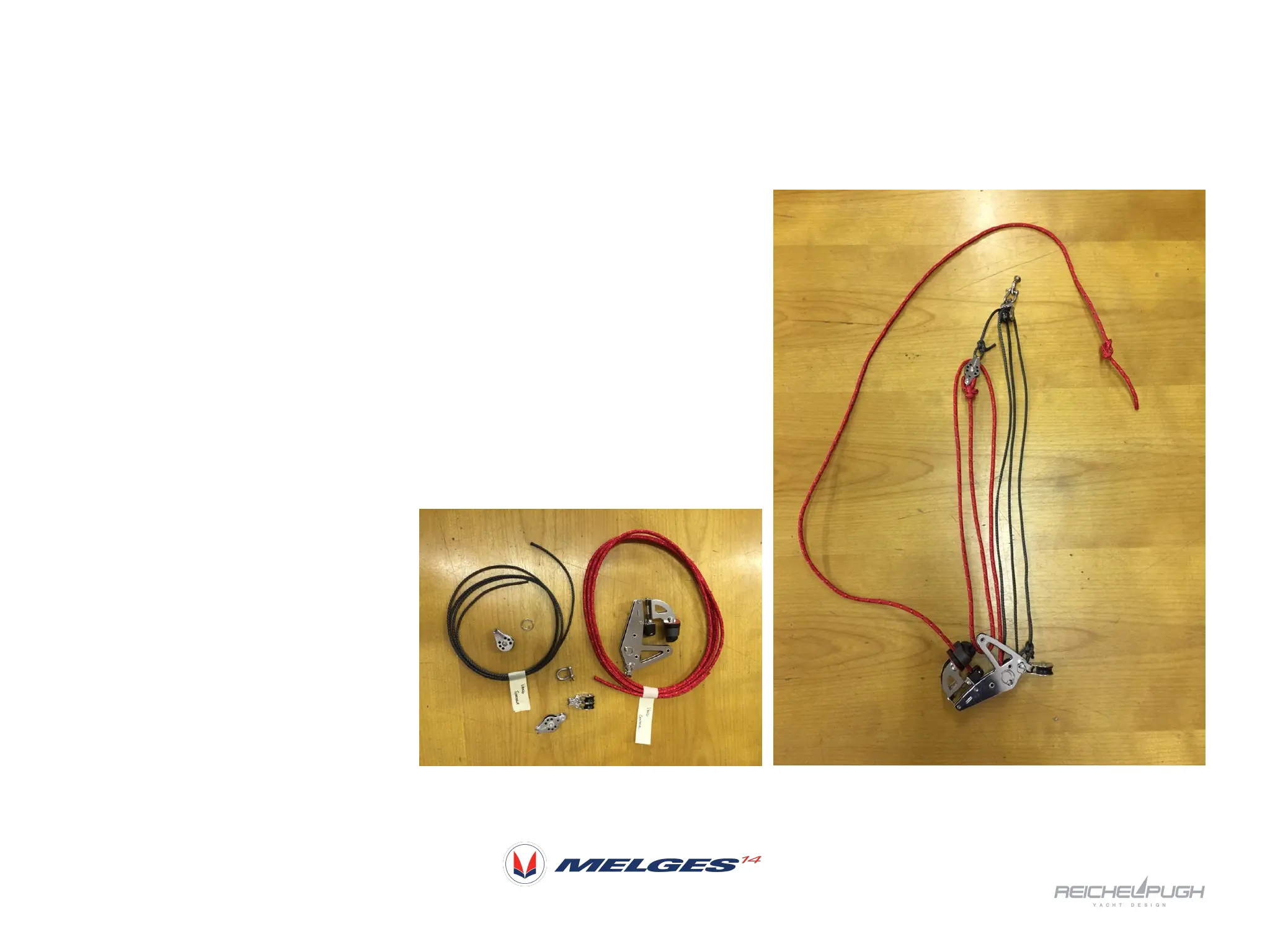

Note picture with the vang parts included.
•
Assemble the curved vang key and
16mm double block (#206) using the small
D shackle. Tighten shackle with a tool. Also
attach the Micro single block (#224) to the
shackle at the top of the cleat bracket.
•
Tie the red vang control line to the becket
end of the Micro block(#225) using a bowline
and lead through the cleat bracket as shown.
•
Tie the vang spectra line to the opposite
end of the micro block(#225) using a
bowline knot. Lead the line through
the 16mm double block(#206) and the
bracket as shown, and dead end on the
pin of the shackle that is attaching the
single micro block to the bracket.
